Turbocharger The turbocharger is lubricated via a separate oil line (from the
main oil pump).
The oil emerging from the turbocharger oil sump and is sucked
back to the secondary oil pump and then pumped back to the
main oil tank via an oil hose

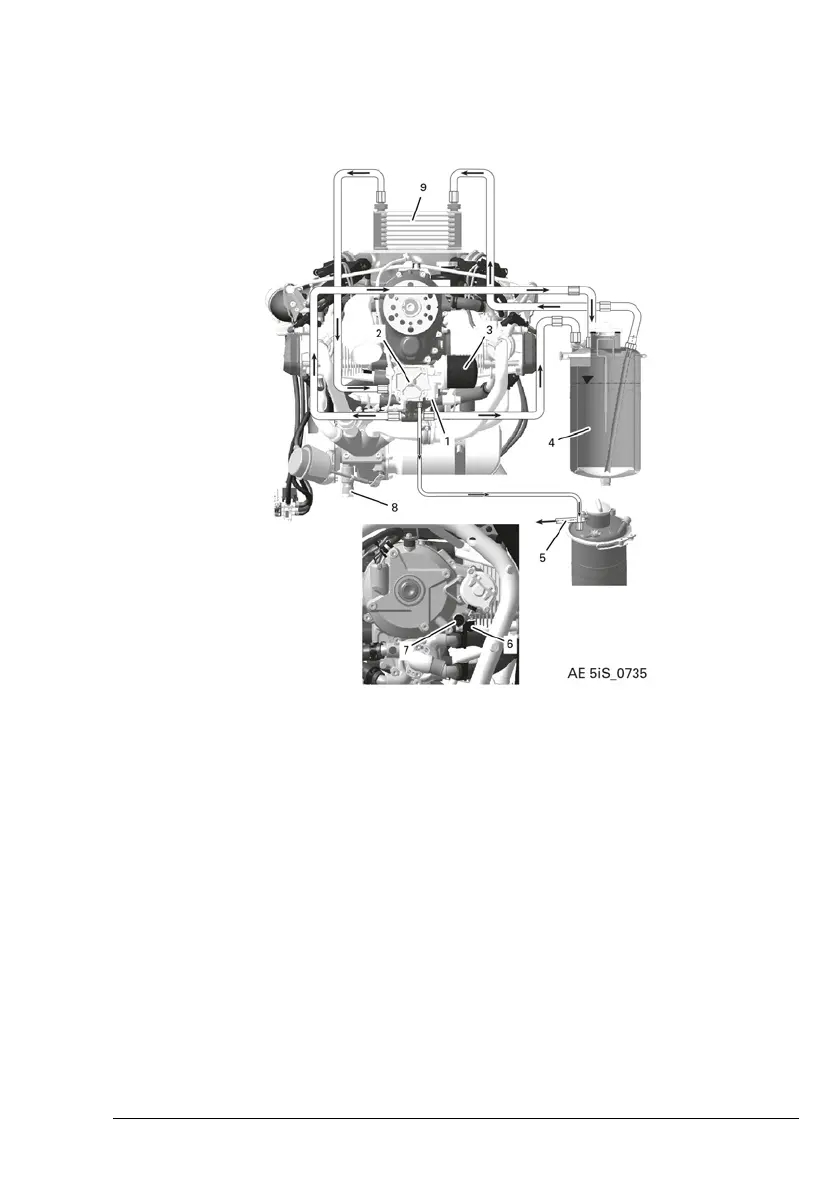

Figure 8: Lubrication system
1
Plug screw (Oil pressure
regulator)
2
Oil pump
3 Oil filter 4 Oil tank
5
Venting hose
6
Oil temperature sensor
7
Oil pressure sensor
8
Plug screw assy. (Oil sump
turbocharger)
9 Oil radiator
Oil temperature
sensor
The oil temperature sensor for reading of the oil temperature is
located on the crankcase, on the mag side of the engine.
Oil pressure
sensor
The oil pressure sensor for reading of the oil pressure is located
on the ignition housing.
