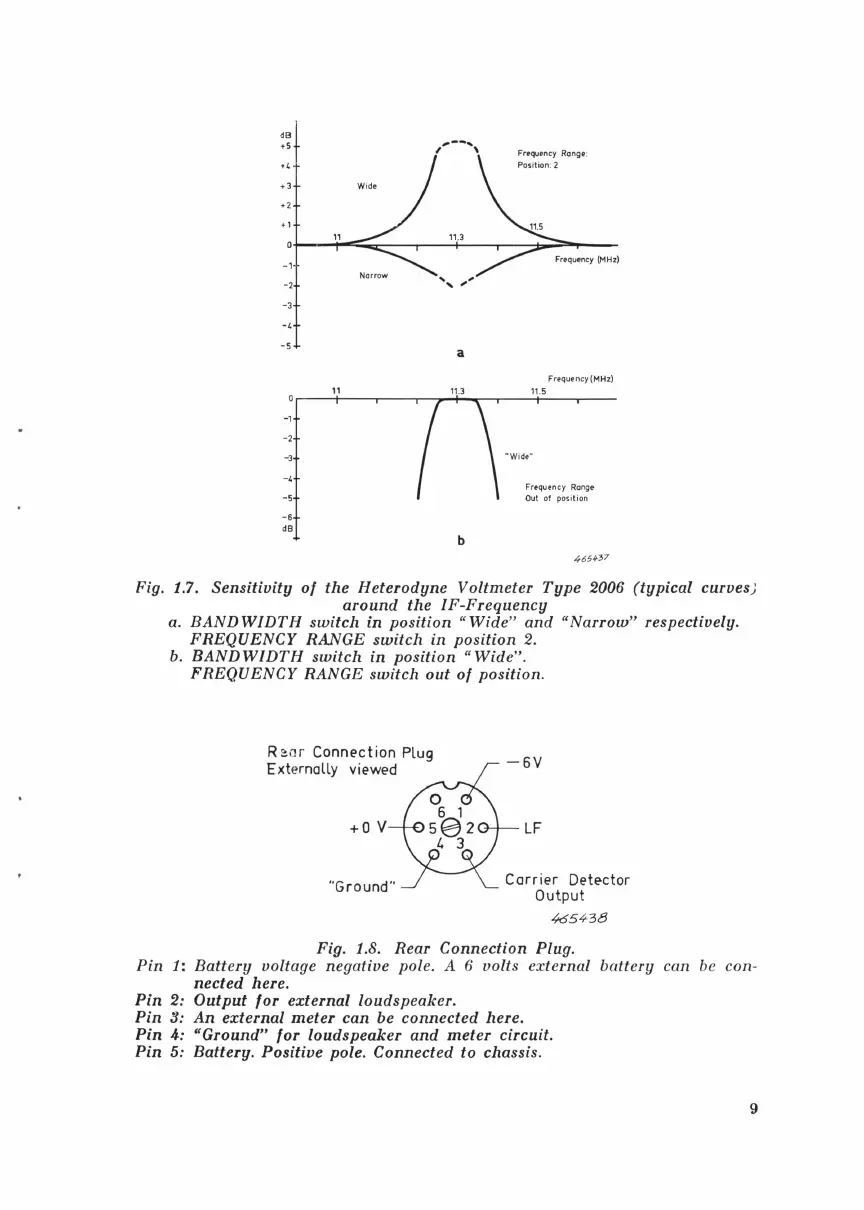

Fig. 1.7. Sensitivity of the Heterodyne Voltmeter Type 2006 (typical curves)
around the IF-Frequency
a. BANDWIDTH switch in position "Wide" and "Narrow" respectively.
FREQUENCY RANGE switch in position 2.
b. BANDWIDTH switch in position "Wide·'.
FREQUENCY RANGE switch out of position.
R f!ar Connection Plug
Externally
viewed
+0 v
-6V
LF
"Ground"
Carrier
Detector
Output
465438
Fig. 1.8. Rear Connection Plug.
Pin 1: Battery voltage negative pole. A 6 volts ex ternal battery can be con-
nected here.
Pin 2: Output for external loudspeaker.
Pin 3: An external meter can be connected here.
Pin 4: "Ground" for loudspeaker and meter circuit.
Pin 5: Battery. Positive pole. Connected to chassis.
