Frequency Range:
Voltmeter Range:
Input Impedance:
Input Capacitance:
50 Termination:

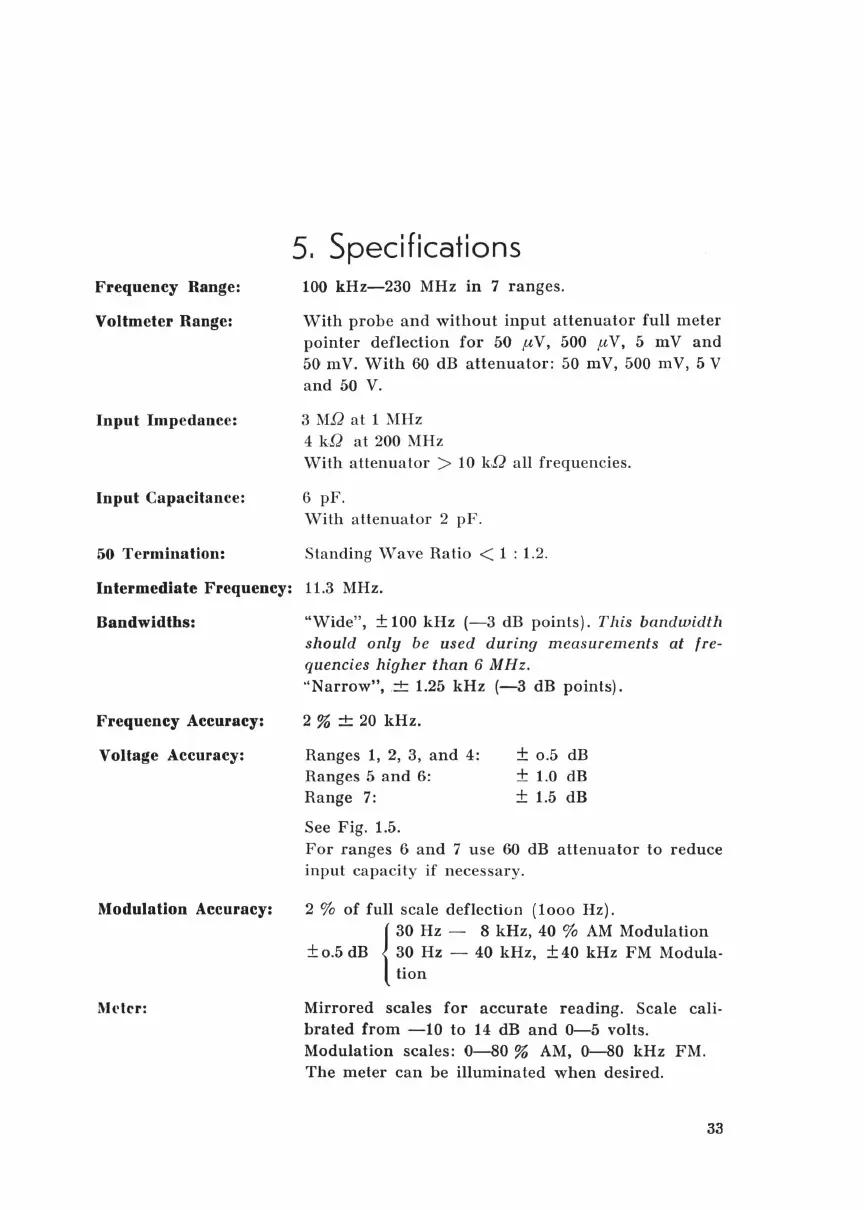

5. Specifications
100 kHz-230 MHz in 7 ranges.
With probe and without input attenuator full meter
pointer deflection for 50 ftV, 500 ftV, 5 mV and
50 mV. With 60 dB attenuator: 50 mV, 500 mV, 5 V
and 50 V.
3 MQ at 1 MHz
4 k.Q at 200 MHz
With attenuator > 10 k.Q all frequencies.
6 pF .
With attenuator 2 pF.
Standing Wave Ratio < 1 : 1.2.
Intermediate Frequency: 11.3 MHz.
Bandwidths:
Frequency Accuracy:
Voltage Accuracy:
Modulation Accuracy:
1\h•lcr:
"Wide", ±100kHz (-3 dB points). This bandwidth
should only be used during measurements at fre-
quencies higher than 6 MHz.
''Narrow", .± 1.25 kHz (-3 dB points).
2% ±20kHz.
Ranges 1, 2, 3, and 4:
Ranges 5 and 6:
Range 7:
See Fig. 1.5.
± o.5 dB
± 1.0 dB
± 1.5 dB
For ranges 6 and 7 use 60 dB attenuator to reduce
input capacity if necessary.
2 % of full scale deflection ( 1 ooo Hz).
{
30 Hz - 8 kHz, 40 % AM Modulation
± o.5 dB 30 Hz - 40 kHz, ± 40 kHz FM Modula-
tion
Mirrored scales for accurate reading. Scale cali-
brated from -10 to 14 dB and 0-5 volts.
Modulation scales: 0-80 % AM, ~0 kHz FM.
The meter can be illuminated when desired.
