BRUEL & KJAER 2006 User Manual

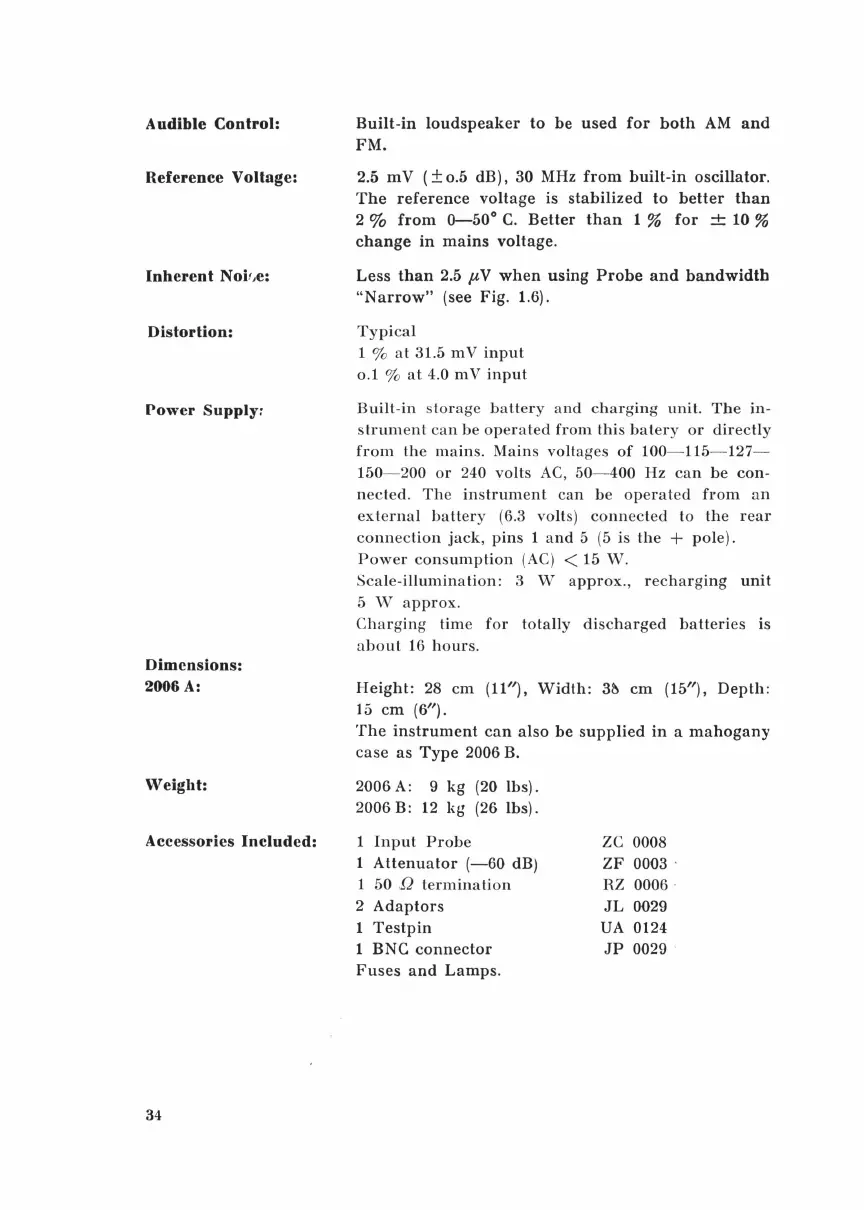

Audible Control:
Reference Voltage:
Inherent Noir,e:
Distortion:
Power Supply:
Dimensions:
2006A:
Weight:
Accessories Included:
34
Built-in loudspeaker to be used for both AM and
FM.
2.5 m V ( ± o.5 dB), 30 MHz from built-in oscillator.
The reference voltage is stabilized to better than
2% from Q-50° C. Better than 1% for ± 10%
change in mains voltage.
Less than 2.5 ftV when using Probe and bandwidth
"Narrow" (see Fig. 1.6).
Typical
1 % at 31.5 m V input
o.1 % at 4.0 mV input
Built-in sto ra ge battery and charging unit. The in-
strument can be operated from this batery or directly
from the mains. Mains voltages of 100- 115- 127-
150- 200
or 240 volts AC, 50-400 Hz can be con-
nected . The instrument can be operated from an
external battery (6.3 volts) connected to the rear
connection jack, pins 1 and 5 ( 5 is the + pole) .
Power consumption (AC) < 15 W.
Scale-illumination: 3 W approx., recharging unit
5 W approx.
Charging time for totally discharged batteries is
about 16 hours.
Height: 28 em (11"), Width: 3b em (15"), Depth:
15 em (6").
The instrument can also be supplied in a mahogany
case as Type 2006 B.
2006A: 9 kg (20 lbs).
2006 B: 12 kg (26 lbs).
Input Probe
Attenuator (-60 dB)
1
50 ,Q termination
2 Adaptors
1 Testpin
1 BNC connector
Fuses and Lamps.
zc 0008
ZF 0003 ·
RZ 0006 ·
JL 0029
UA 0124
JP 0029 ·
