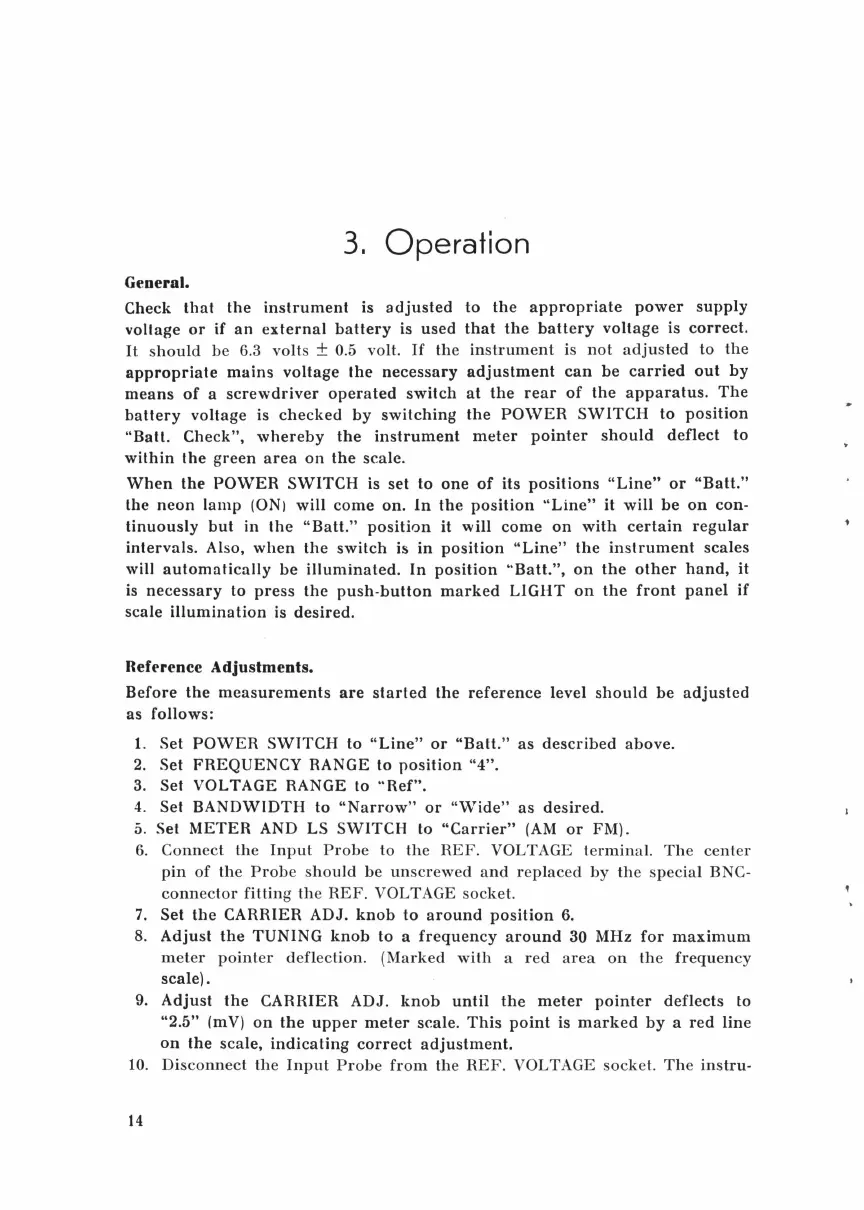

3. Operation
General.
Check that the instrument is adjusted to the appropriate power supply
voltage or if an external battery is used that the battery voltage is correct.
It s hould be 6.3 volt s ± 0. 5 volt. If the instrum e nt is not adjusted to the
appropriate mains voltage the necessary adjustment can be carried out by
means of a screwdriver operated switch at the rear of the apparatus. The
battery voltage is checked by switching the PO\VER SWITCH to position
"Batt. Check", whereby the instrument meter pointer should deflect to
within the green area on the scale.
When the POWER SWITCH is set to one of its positions "Line" or "Batt."
the neon lamp (ONI will come on. In the position "Line" it will be on con-
tinuously but in the "Batt." position it will come on with certain regular
intervals. Also, when the switch is in position "Line" the instrument scales
will automatically be illuminated. In position "Batt.", on the other hand, it
is necessary to press the push - button marked LIGHT on the front panel if
scale illumination is desired.
Reft>rence Adjustments.
Before the measurements are started the reference level should be adjusted
as follows:
1. Set POWER SWITCH to "Line" or "Batt." as described above.
2. Set FREQUENCY RANGE to position "4".
3. Set VOLTAGE RANGE to "Ref".
4. Set BANDWIDTH to "Narrow" or "Wide" as desired.
5. Set METER AND LS SWITCH to "Carrier" (AM or FM).
6. C
onn ect th e Input Prob e to the REF. VOLTAGE te rmin a l. Th e ce nt er
pin of th e Prob e s hould be un s cr ewed a nd re pl aced by th e special BNC-
conn ec tor fittin g th e R EF . VOLTAGE s ock et.
7. Set the CARRIER ADJ. knob to around position 6.
8. Adjust the TUNING knob to a frequency around 30 MHz for maximum
me ter point er de fl e ction . ( Marked with a red area on th e frequen cy
scale).
9. Adjust the CARRIER ADJ. knob until the meter pointer deflects to
"2.5" (mV) on the upper meter scale. This point is marked by a red line
on the scale, indicating correct adjustment.
10 . Disc onnect th e Input Prob e from th e REF. VOLTAGE sock et. Th e in stru-
14
