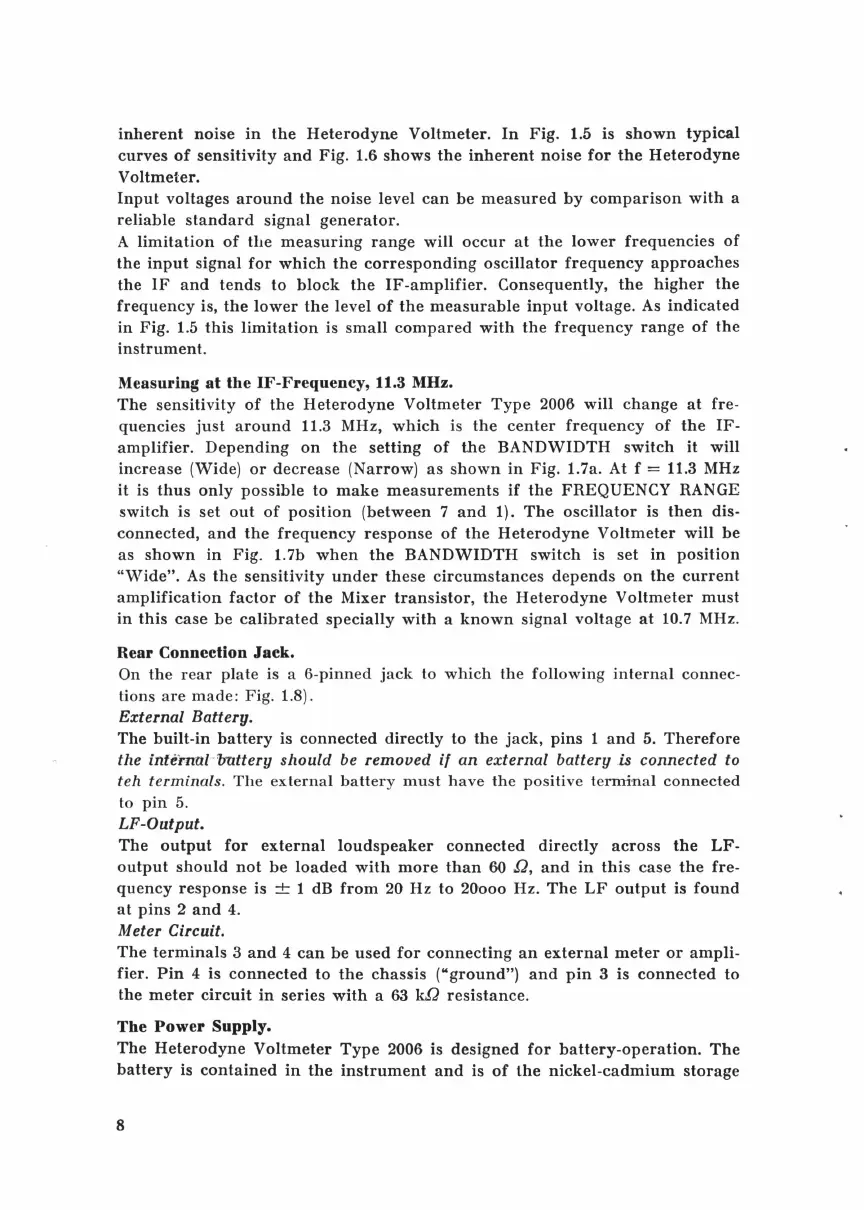

inherent
noise
in
the
Heterodyne
Voltmeter.
In
Fig. 1.5 is
shown
typical
curves
of
sensitivity
and
Fig. 1.6
shows
the
inherent
noise
for
the
Heterodyne
Voltmeter.
Input
voltages
around
the
noise
level
can
be
measured
by
comparison
with
a
reliable
standard
signal
generator.
A
limitation
of
the
measuring
range
will
occur
at
the
lower
frequencies
of
the
input
signal
for
which
the
corresponding
oscillator
frequency
approaches
the
IF
and
tends
to
block
the
IF
-amplifier.
Consequently,
the
higher
the
frequency
is,
the
lower
the
level
of
the
measurable
input
voltage.
As
indicated
in
Fig. 1.5
this
limitation
is
small
compared
with
the
frequency
range
of
the
instrument.
Measuring
at
the
IF-Frequency,
11.3 MHz.
The
sensitivity
of
the
Heterodyne
Voltmeter
Type
2006
will
change
at
fre-
quencies
just
around
11.3 MHz,
which
is
the
center
frequency
of
the
IF-
amplifier.
Depending
on
the
setting
of
the
BANDWIDTH
switch
it
will
increase
(Wide)
or
decrease
(Narrow)
as
shown
in
Fig. 1.7a. At f = 11.3 MHz
it is
thus
only
possible
to
make
measurements
if
the
FREQUENCY
RANGE
switch
is
set
out
of
position
(between
7
and
1).
The
oscillator
is
then
dis-
connected,
and
the
frequency
response
of
the
Heterodyne
Voltmeter
will
be
as
shown
in
Fig.
1.
7b
when
the
BANDWIDTH
switch
is
set
in
position
"Wide".
As
the
sensitivity
under
these
circumstances
depends
on
the
current
amplification
factor
of
the
Mixer
transistor,
the
Heterodyne
Voltmeter
must
in
this
case
be
calibrated
specially
with
a
known
signal
voltage
at
10.7 MHz.
Rear
Connection
J
aek.
On
the
rear
plate
is a
6-pinned
jack
to
which
the
following
internal
connec-
tions
are
made:
Fig. 1.8).
External Battery.
The
built-in
battery
is
connected
directly
to
the
jack,
pins
1
and
5.
Therefore
the intenral·
'bTJ.ttery
should
be
removed
if
an
external battery .
is
connected to
teh terminals.
The
external
battery
must
have
the
positive
terminal
connected
to
pin
5.
LF-Output.
The
output
for
external
loudspeaker
connected
directly
across
the
LF-
output
should
not
be
loaded
with
more
than
60
Q,
and
in
this
case
the
fre-
quency
response
is ± 1 dB
from
20 Hz
to
20ooo Hz.
The
LF
output
is
found
at
pins
2
and
4.
Meter Circuit.
The
terminals
3
and
4
can
be
used
for
connecting
an
external
meter
or
ampli-
fier.
Pin
4 is
connected
to
the
chassis
("ground")
and
pin
3 is
connected
to
the
meter
circuit
in
series
with
a 63
kQ
resistance.
The
Power
Supply.
The
Heterodyne
Voltmeter
Type
2006 is
designed
for
battery-operation.
The
battery
is
contained
in
the
instrument
and
is
of
the
nickel-cadmium
storage
8
