Antenna
amplifier
0
ooo
A
Signalgeneratar

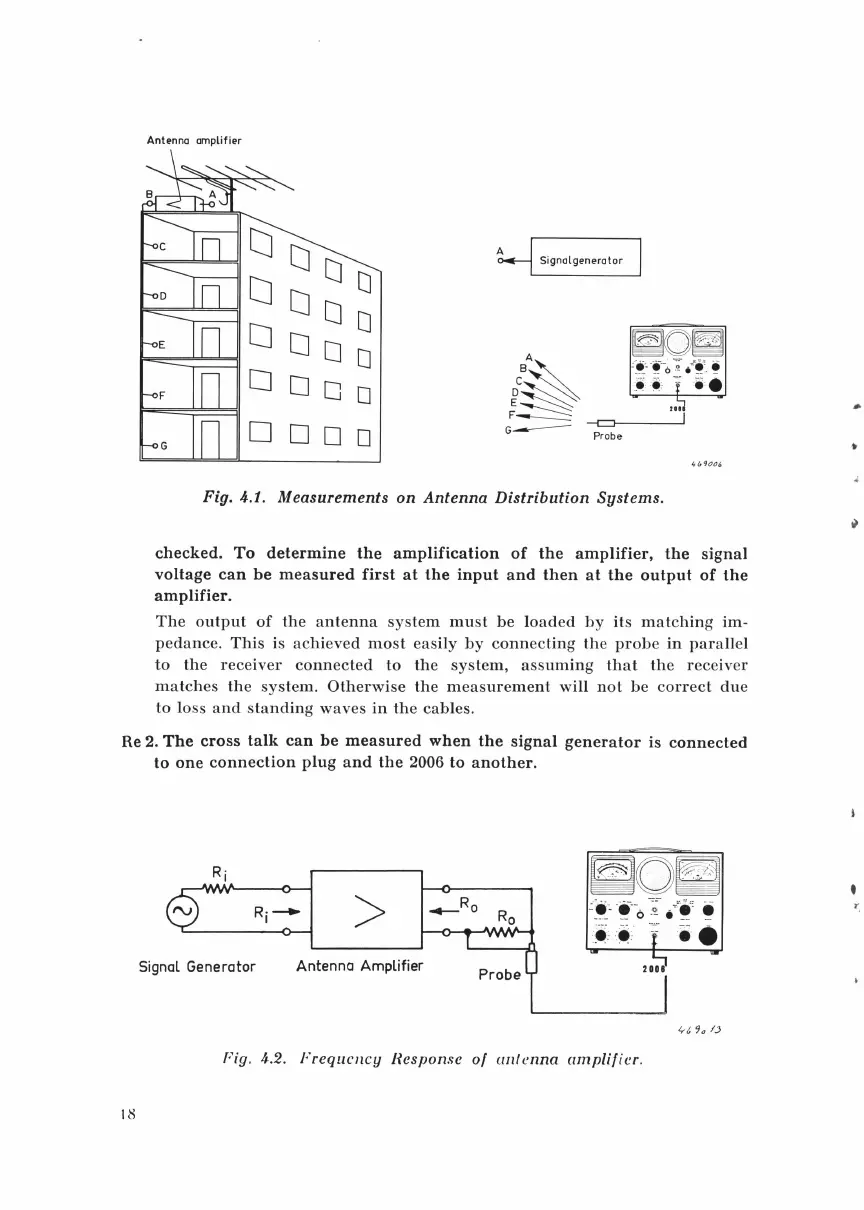

Fig. 4.1. Measurements
on
Antenna Distribution Systems.
checked.
To
determine
the
amplification
of
the
amplifier,
the
signal
voltage
can
be
measured
first
at
the
input
and
then
at
the
output
of
the
amplifier.
The
output
of
the
antenna
system
must
be
loaded
by
its
matching
im-
pedance.
This
is
achieved
most
easily
by
connecting
the
probe
in
parallel
to
the
receiver
connected
to
the
system,
assuming
that
the
receiver
matches
the
system.
Otherwise
the
measurement
will
not
be
correct
due
to
loss
and
standing
waves
in
the
cables.
Re 2.
The
cross
talk
can
be
measured
when
the
signal
generator
is
connected
to
one
connection
plug
and
the
2006
to
another.
1/:i
R·
I
Signal Generator
>
Antenna Amplifier
Fig. 4.2. Freque11cy
Response
of
antenna
amplifier.
r,
