the
meter
of
the
2006 is
available
(in
series
with
a
63
I&
resistance).
With
the
METER
AND LS
SWITCH
in
"Carrier"
positions
it is
therefore
possible
to
have
the
RF
voltage
recorded
when
the
meter
output
mentioned
above
is
connected
for
instance
to
the
Level
Recorder
Type
2305. As
the
input
re-
sistance
of
the
Level
Recorder
is
about
18
I&
in
the
DC
position
of
the
RECTIFIER
RESPONSE
switch,
and
the
output
of
the
2006
for
full
deflection
of
the
meter
pointer
is
about
3 volts
in
series
with
63
I&
it
means
that
there
will
be
about
700 mV
available
at
the
Level
Recorder
input.
In
Fig.
4.6 is
shown
a
set-up
for
measurement
of
the
relative
field
strength
as
a
function
of
time.
The
corresponding
recording
is
shown
in
Fig.
4.7. A
25
dB
range
potentiometer
was
used
on
the
level
recorder
as
the
relatively
small
dynamic
range
of
the
detector
does
not
allow
greater
variations
than
22
To
rear
connect
ion
plug
pin
3 and
4.
2DD

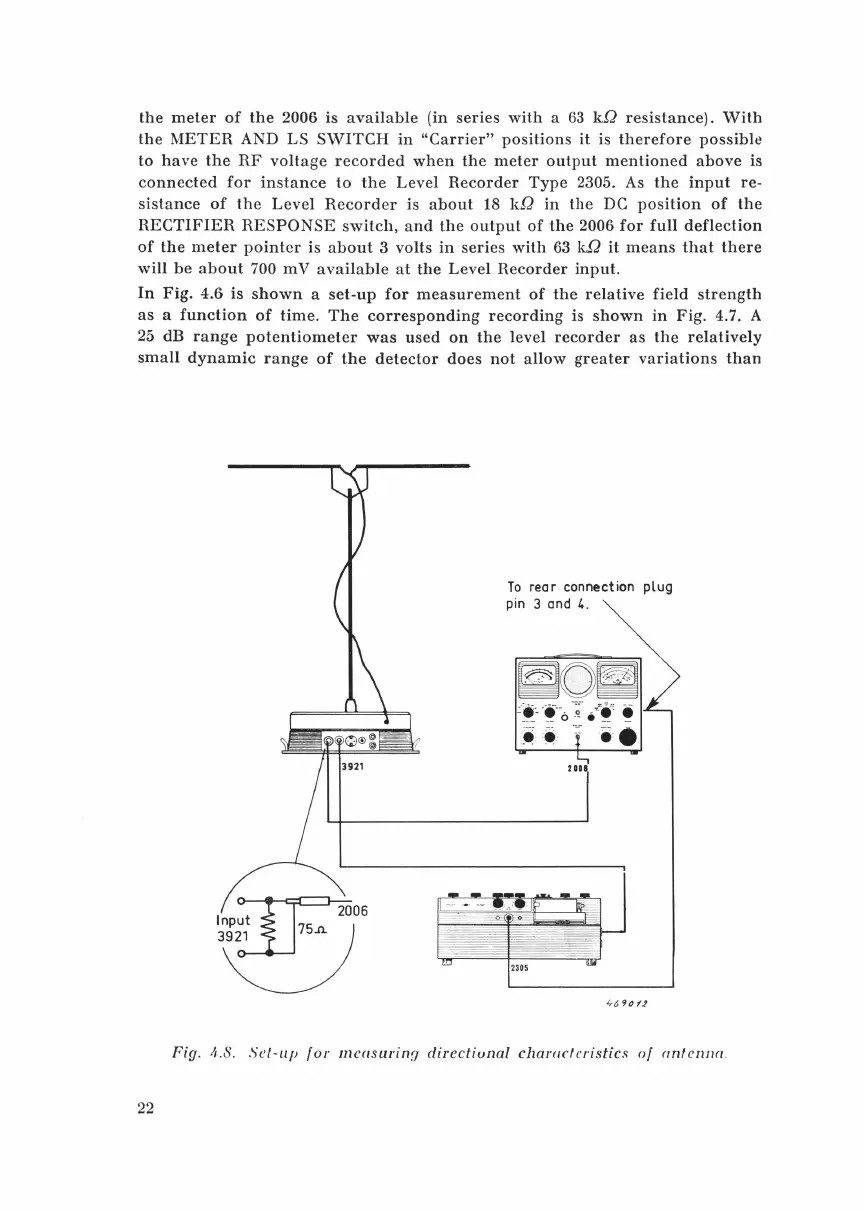

Fig.
4.8.
Set-up
for
measuring
directiunal
chamcfcristics
of
onfcnnn
.
