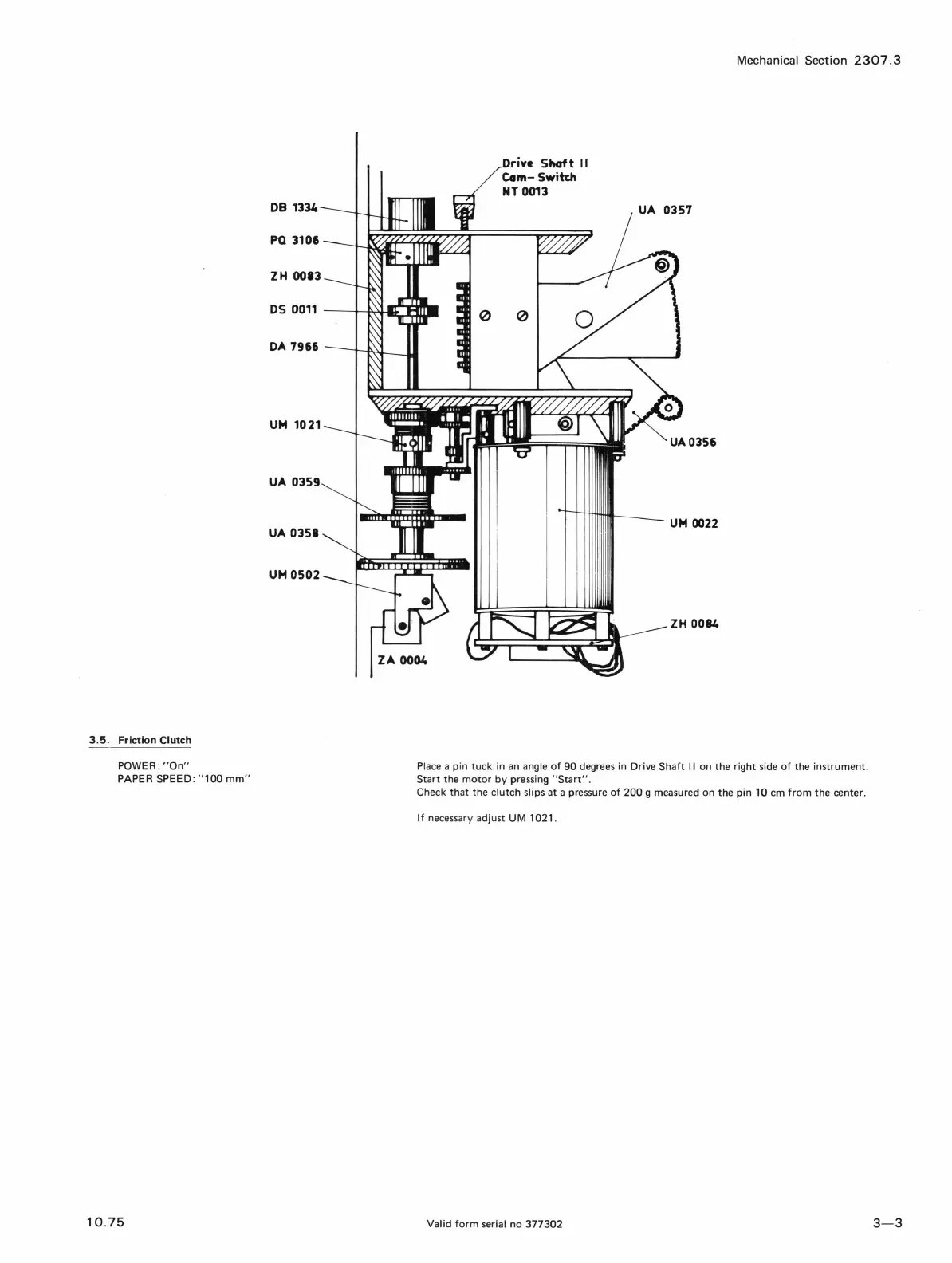

3.5. Friction Clutch
POWER: "On"
PAPER SPEED: "100 mm"
1 0 . 75
Mechanical Section 2307.3
DB 1334
PQ 3106
ZH 00.3
DS 0011 --+M-ICaD.
DA 7966
UM 1021
UA 035
UM 0502
UM 0022
ZH 0014
ZA 0004
Place a pin tuck in an angle of 90 degrees in Drive Shaft lion the right side of the instrument.
Start the motor by pressing "Start".
Check that the clutch slips at a pressure of 200 g measured on the pin 10 cm from the center .
If necessary adjust UM 1021 .
Valid form serial no 377302 3-3
