BRUEL & KJAER 2307 User Manual

BROEL & KJ,LER
Ncerum - Denmark
Consisting of :
2307
Service Instructions
Technical Description
Adjustment Procedure
Mechanical Section
037-0107
ZE 0100
Layout Diagram with Parts List
ZG 0069
ZH 0083
ZH 0084
XZ 0028
XZ 0029
ZL 0034
Diagram with Parts List
10 . 75

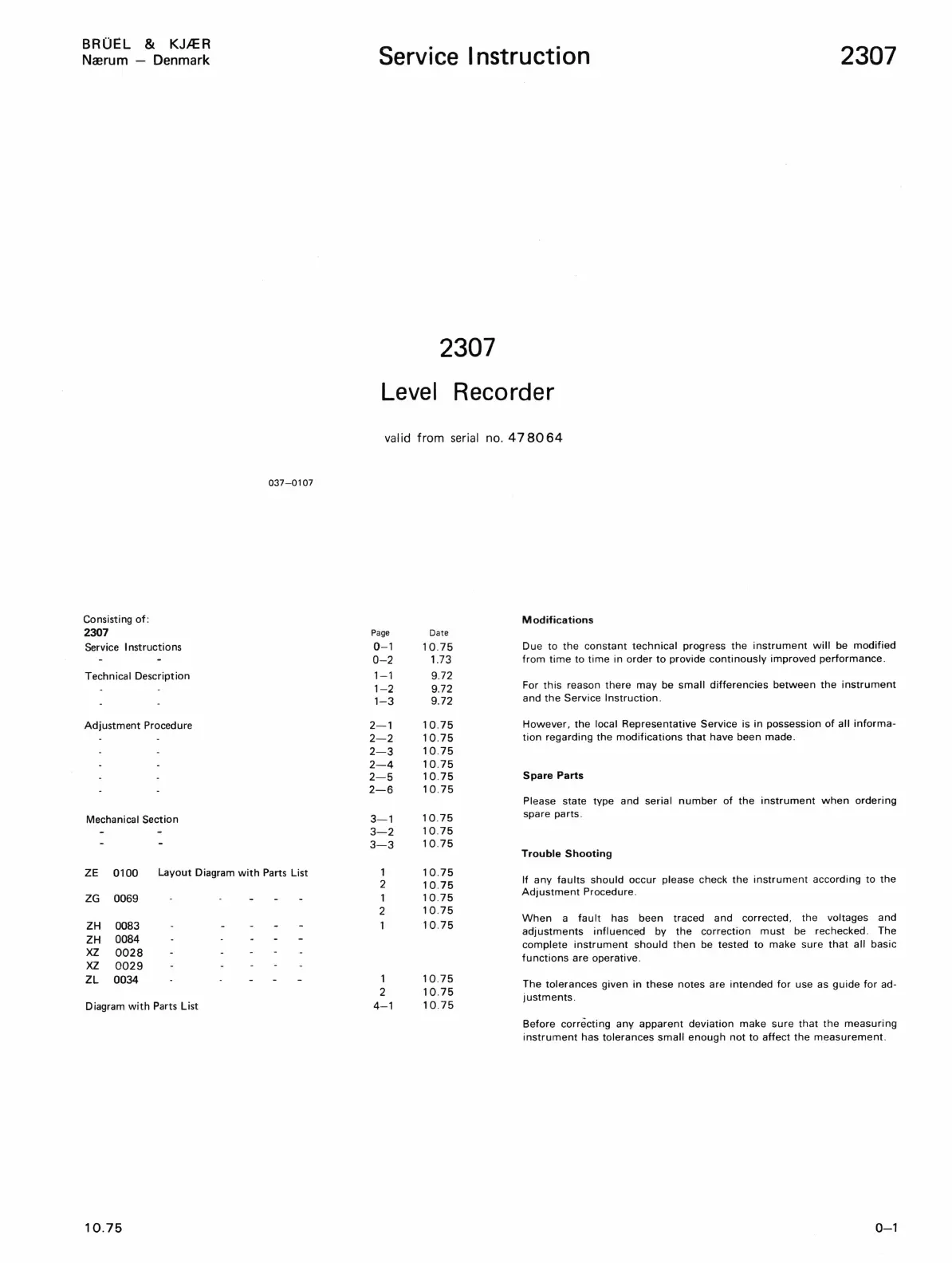

Service Instruction 2307
2307
Level Recorder
valid from serial no. 478064
Page
0-1
0-2
1-1
1-2
1-3
2-1
2-2
2-3
2-4
2-5
2-6
3-1
3-2
3-3
1
2
1
2
1
2
4-1
Date
10 . 75
1.73
9.72
9.72
9.72
10 . 75
10 . 75
10 . 75
10 . 75
10 . 75
10.75
10 . 75
10 . 75
10 . 75
10 . 75
10 . 75
10 . 75
10 . 75
10 . 75
10.75
10 . 75
10 . 75
Modifications
Due to the con stant technical progress the instrument will be modified
from ti me to time in order to provide continously improved performance .
For
th is reason there may be small differencies between the instrument
and the Service Instruction .
However, the local Representative Service is in possession of all informa -
tion regarding the modifications that have been made.
Spare Parts
Please state type and serial number of the instrument when ordering
spare parts.
Trouble Shooting
If any faults should occur please check the instrument according to the
Adjustment Procedure.
When a faul t has been traced and corrected, the voltages and
adjustments influenced by the correction must be rechecked. The
comple te instrument should then be tested to make sure that all basic
functions are operative.
The
tolerances given in these notes are intended for use as guide for ad-
justments .
Before
correcting any apparent deviation make sure that the measuring
instrumen t has tolerances small enough not to affect the measurement .
0-1
