BRUNSWICK INSTALLATION MANUAL PAGE 15
APOLLO
APRON ASSEMBLY

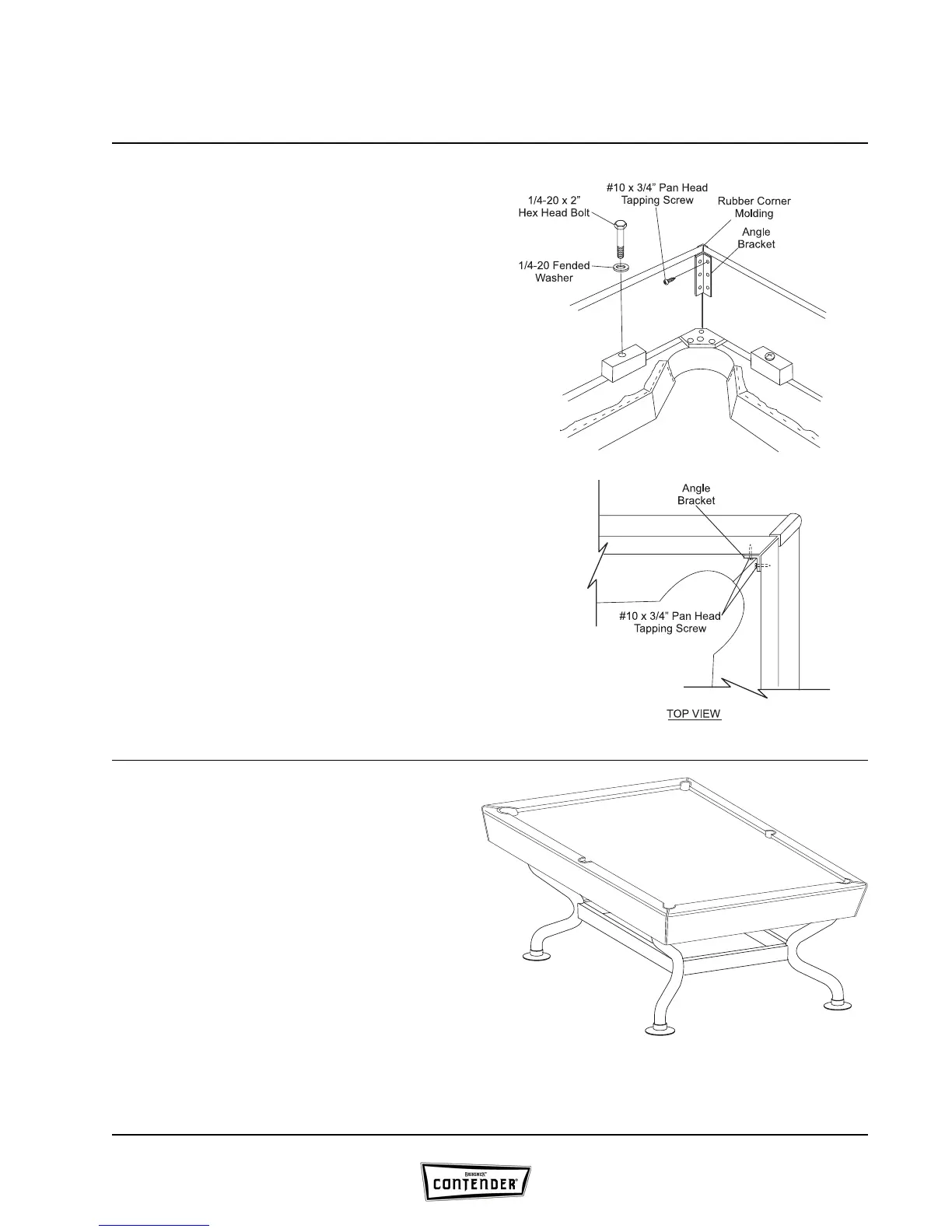

FIGURE ONE
Step #1: Carefully position the aprons to the bottom of
the rail with the bevel of the apron fitted into the corner
molding.
Step #2: Position the aprons flush with the back edge of
the rail and attach using 1/4-20 x 2” hex head bolts and
1/4 fended washers.
Step #3: Attach an angle bracket into each of corner
using #10 x 3/4” pan head tapping screws as shown.
Place the screws in the slots of the molding.
FIGURE ONE
FIGURE TWO
Step #4: Carefully turn the rail and apron over and
lower it onto the table.
CAUTION: Do not let the rail assembly “twist” or
“bow” while turning as the strain may cause the rail
to crack at the ends.
Step #5: Align the eighteen machine studs with the
eighteen clearance holes through the slate, and lower
assembly onto the slate.
FIGURE TWO
