BRUNSWICK INSTALLATION MANUAL PAGE 3
APOLLO
BASEFRAME AND LEG ASSEMBLY

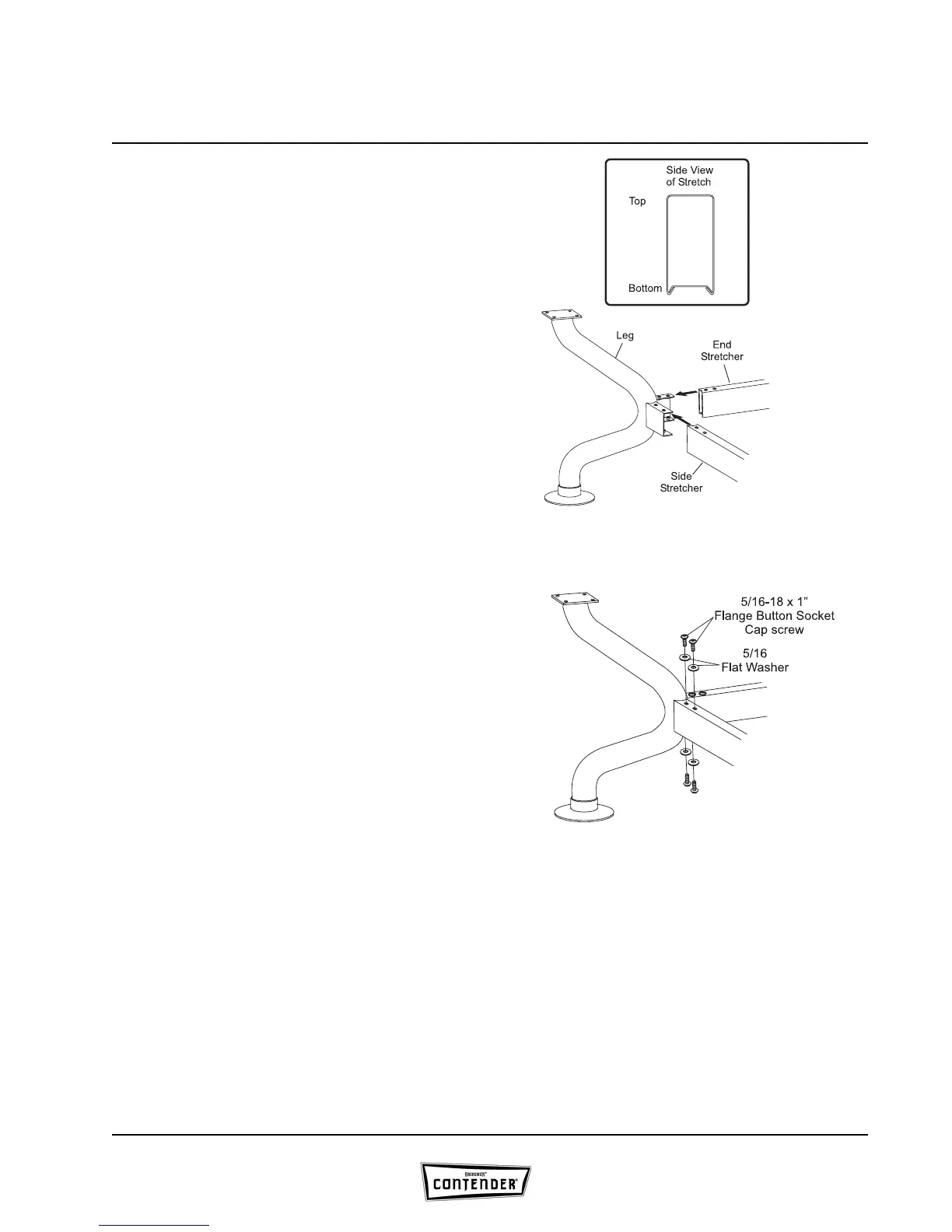

FIGURES ONE AND TWO
Step #1: Set out the four legs and slide the side and end
stretchers on the gussets on the legs. The stretchers
should have the “U” channel facing down. Attach the
stretchers so that the foot of the leg is to the outside.
Secure the stretcher to the leg using 5/16-18 x 1” flange
button socket cap screws and 5/16 flatwasher.
FIGURE ONE
FIGURE TWO
To Next Page
