BRUNSWICK INSTALLATION MANUAL PAGE 13
METRO
RAIL AND APRON ASSEMBLY
(CONTINUED)
FIGURES FIVE AND SIX
Step #3. Set the aprons into the relief in the bottom of
the rail. Loosely atach the aprons with 1/4-20 x 2” hex
head bolts and 1/4 flat washers.
Step #4: Slide the apron corners onto the apron ends
with the corner flush with the bottom of the apron.
Attach with #10 x 1/2” pan head tapping screws.
Step #5: Properly position the aprons to the rail and
secure all apron hardware.

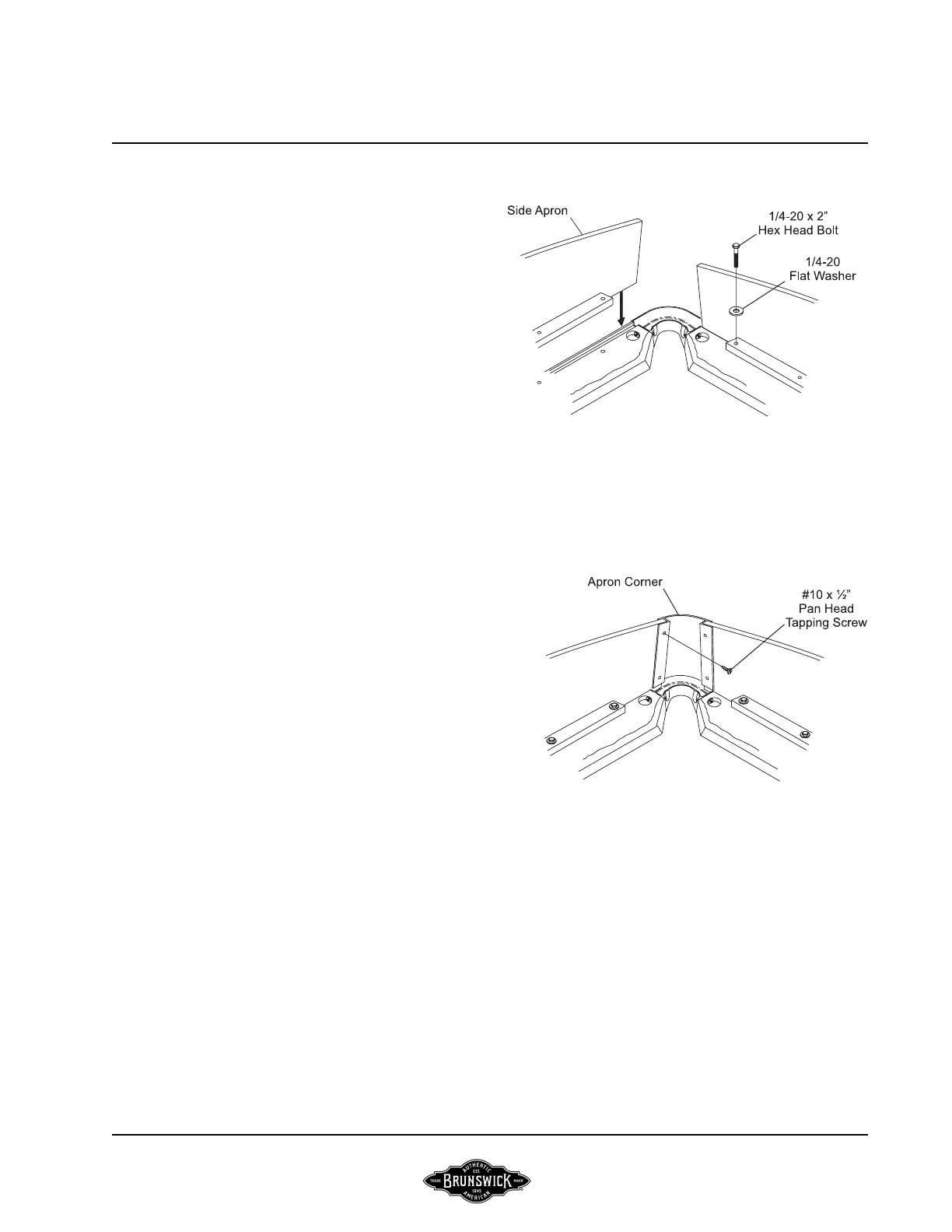

FIGURE FIVE
FIGURE SIX
