Bandit
Copyright 5/09 PAGE 71
MODELS 2000XP / 2100SP
SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING
ON OPTIONS OR COMPONENT MANUFACTURER.
ELECTRICAL SECTION

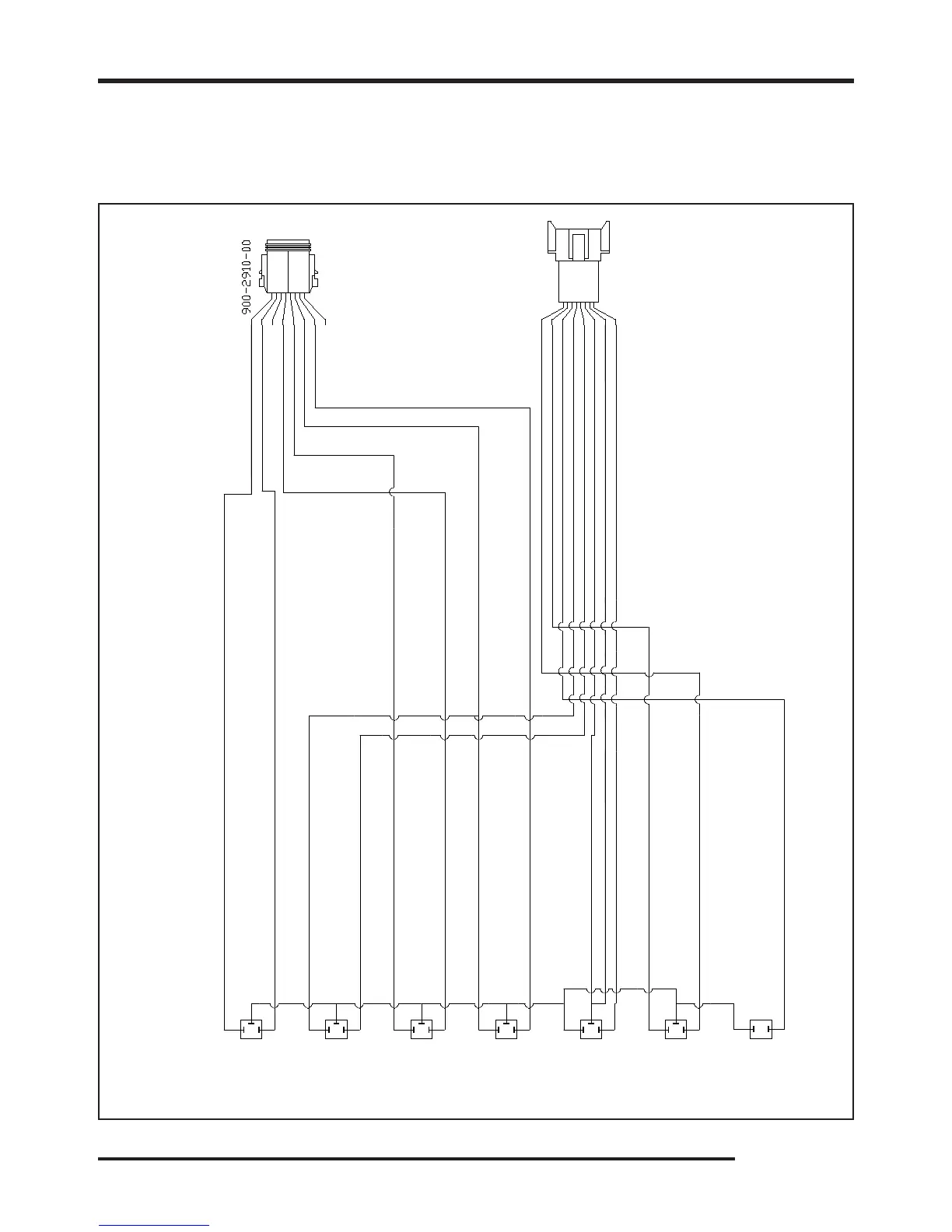

ELECTRICAL SCHEMATIC (993-800000)
LOR RADIO CONTROL WITH SLIDING TONGUE
C1
PIN 8 NOT USED
900-2906-97
SWING 900-2906-97
900-2910-01
C2
ORG/BLK 16 SWING LEFT TO C1.1
DRIVE HI/LOW 900-2910-46
DRIVE FWD/REV 900-2906-97
REM/LOC 900-2910-47 STEER 900-2906-97
LIFT UP/DWN 900-2906-97
TONGUE
ORG 16 SWING RIGHT TO C1.2
TAN 16 TONGUE IN TO C2.4
TAN/BLK 16 TONGUE OUT TO C2.5
BLU/BLK 16 LIFT DOWN TO C1.4
BLU 16 LIFT UP TO C1.5
YEL 16 STEER RIGHT TO C1.6
YEL/BLK 16 STEER LEFT TO C1.7
RED/WHT +12V REM. TO C2.6
PNK/BLK 16 DRIVE REVERSE TO C2.2
RED 16 +12V LOCAL TO C2.7
PNK 16 DRIVE FORWARD TO C2.1
GRN 16 DRIVE HIGH TO C2.3
RED/WHT/YEL 18 OUTPUT ENABLE TO C2.8
RED 16 +12V
PIN 3 NOT USED
