Copyright 5/09 PAGE 70
MODELS 2000XP / 2100SP
SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING
ON OPTIONS OR COMPONENT MANUFACTURER.

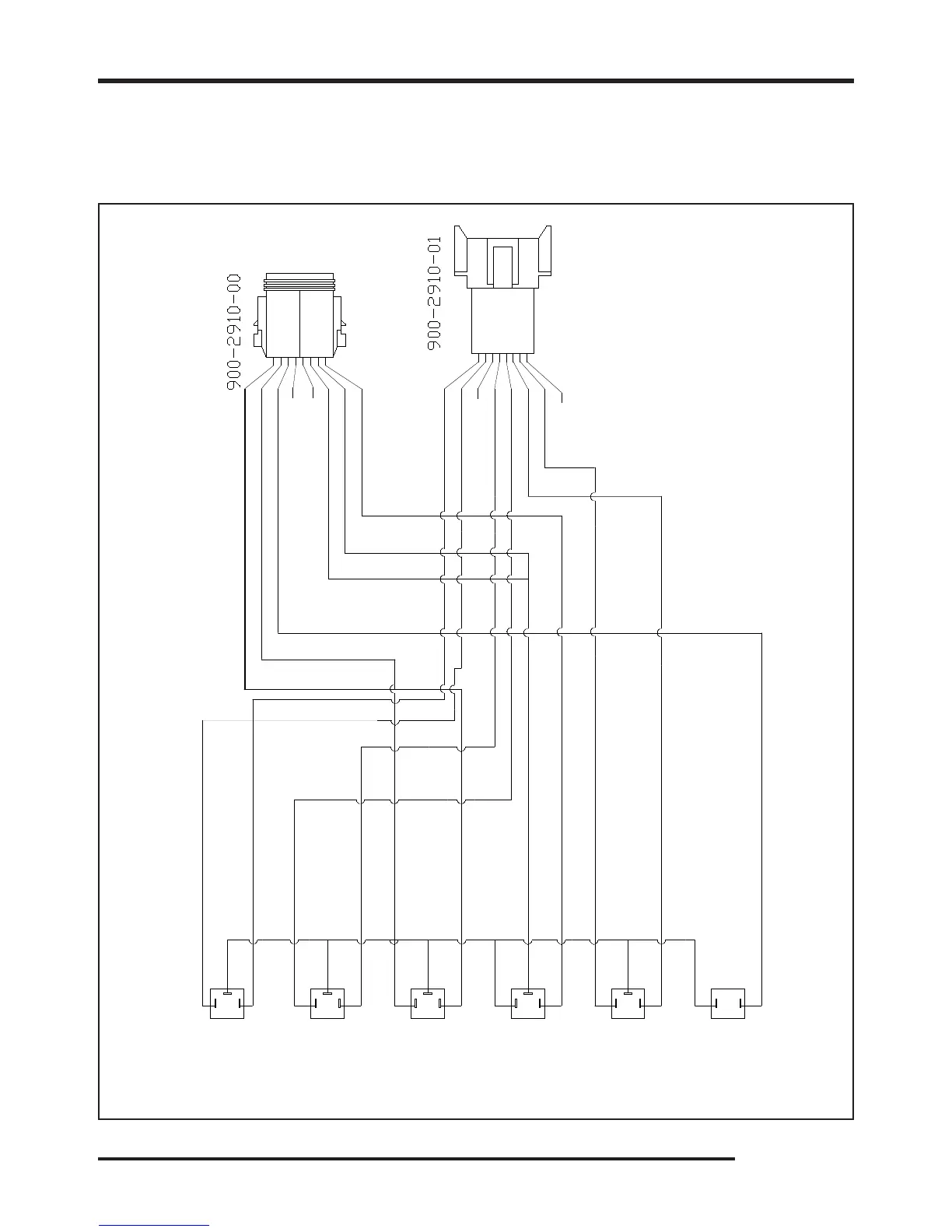

ELECTRICAL SCHEMATIC (993-800001)
LOR RADIO CONTROL
ELECTRICAL SECTION
NOT USED PIN 4
NOT USED PIN 5
NOT USED PIN 8
NOT USED PIN 3
C2
SWING 900-2906-97 CUTTER UP/DOWN 900-2906-97 FWD/REV 900-2910-47 REMOTE LOCAL 900-2910-46 DRIVE HI/LOW 900-2906-97 STEER
C1
ORG 16 SWING RIGHT C2.2
ORG/BLK 16 SWING LEFT C2.1
RED 16 +12V
BLU 16 CUTTER UP C2.5 BLU/BLK 16 CUTTER DOWN C2.4 PNK/BLK 16 DRIVE REVERSE C1.2
PNK 16 DRIVE FORWARD C1.1
RED/WHT 16 PIN 6
RED 16 +12V PIN 7
RED 16 +12V
RED/YEL/WHT 18 C1.8
YEL/BLK 16 STEER LEFT C2.7
900-2906-97
YEL 16 STEER RIGHT C2.6
GRN 16 DRIVE HIGH C1.3
RED 16 +12V
