42
A00279

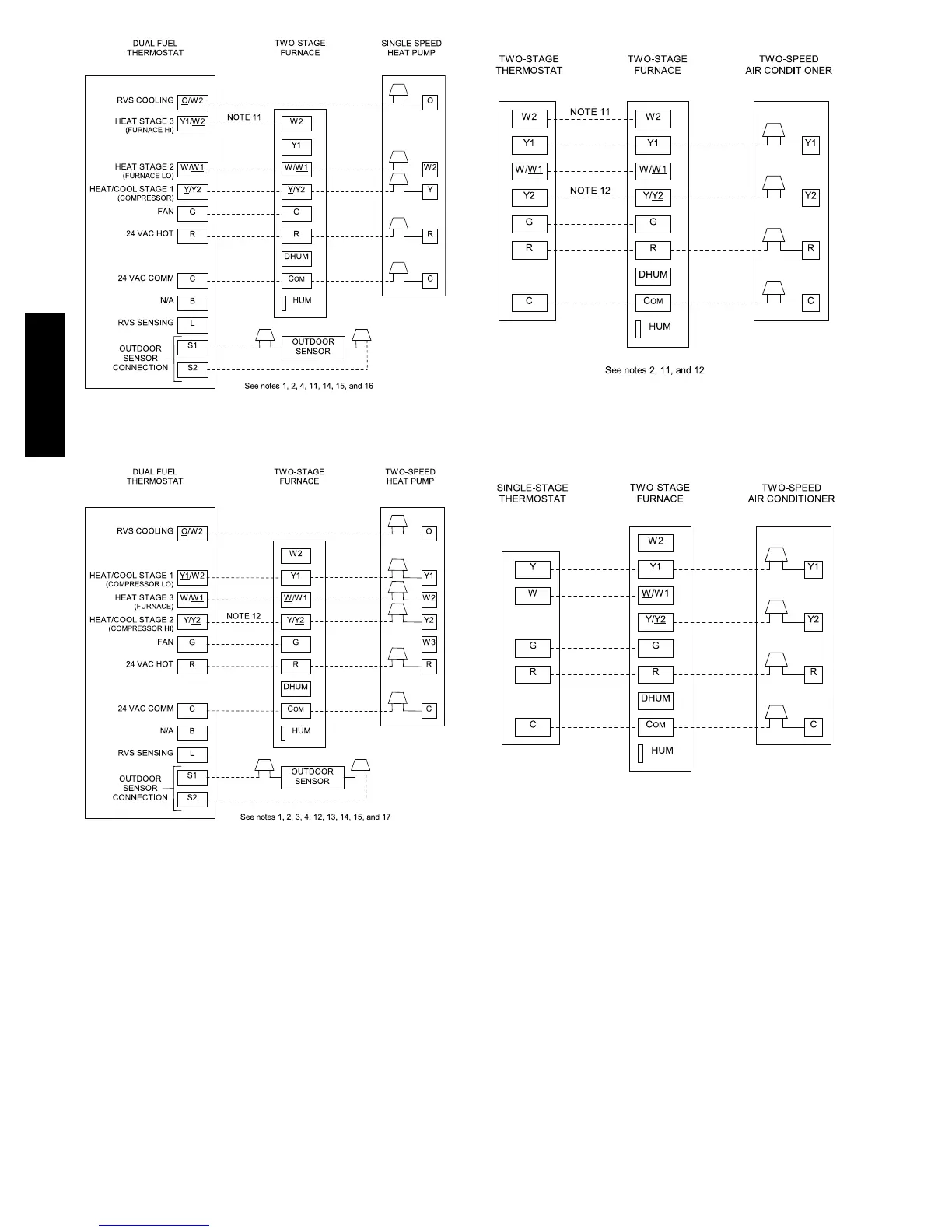

Fig. 47 -- Dual Fuel Thermostat with Two--Stage
Furnace and Single--Speed Heat Pump
A00280
Fig. 48 -- Dual Fuel Thermostat With Two--Stage
Furnace and Two--Speed Heat Pump
A00281
Fig. 49 -- Two--Stage Thermostat With Two--Stage Furnace
and Two--Speed Air Conditioner
See note 2
A02348
Fig. 50 -- Single--Stage Thermostat With Two--Stage
Furnace and Two--Speed Air Conditioner
355BAV
