MAXIMUM ALLOWABLE
DIFFERENCE
A-B B-C A-C
mm In. mm In. mm In.
13 .5 25 1.0 25 1.0

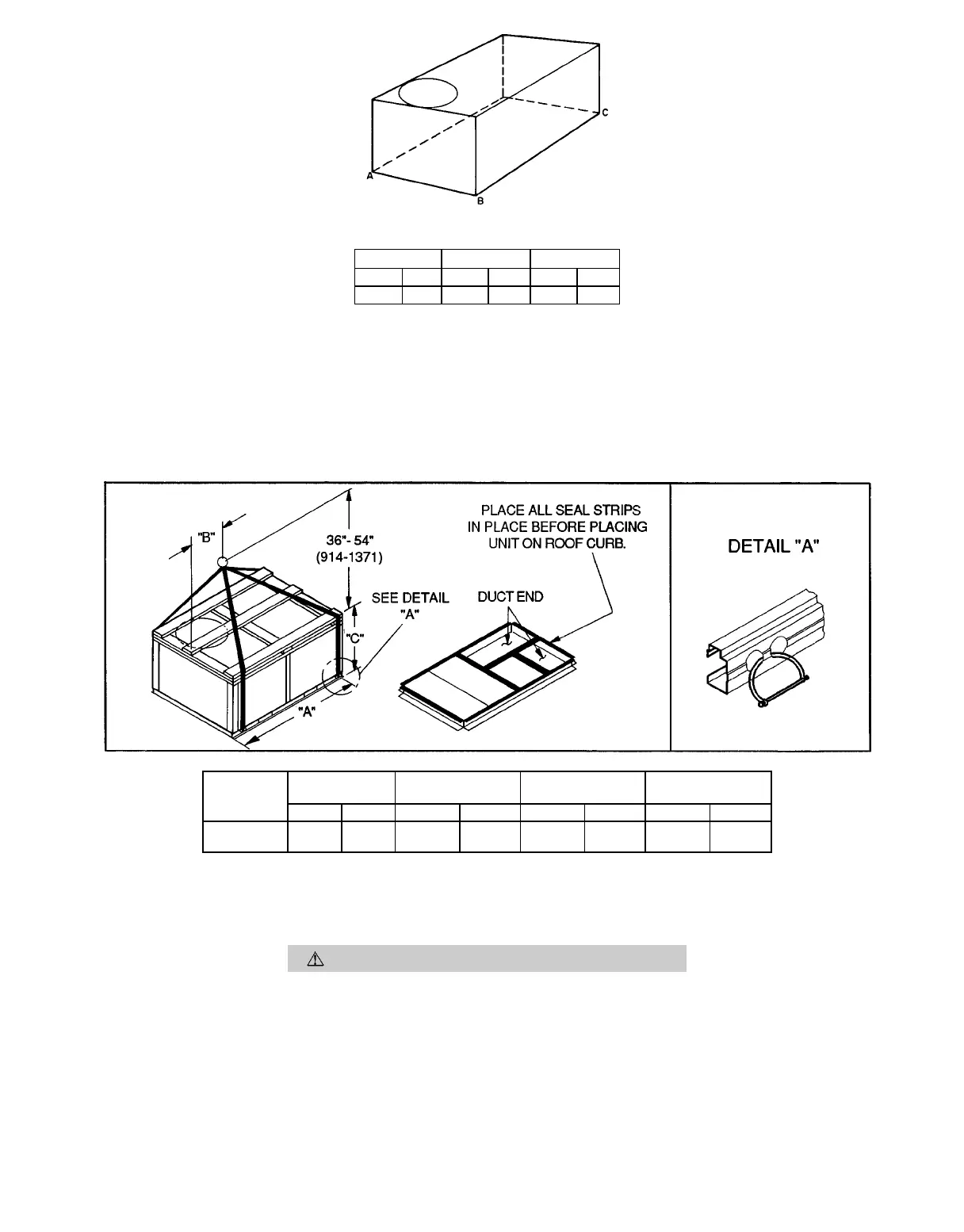

Fig. 5 — Unit Leveling Tolerance
UNIT
MAX
‘‘A’’ ‘‘B’’ ‘‘C’’
WEIGHT
Lb Kg In. mm In. mm In. mm
548C090 840 381 77.42 1967 41.50 1054 42.12 1070
548C120 940 426 77.42 1967 41.50 1054 50.12 1273
NOTES:
1. Dimension in ( ) is in millimeters.
2. Hook rigging shackles through holes in base rail, as shown in detail ‘‘A’’. Holes in base rails are
centered around the unit center of gravity. Use wooden top skid when rigging to prevent rigging
straps from damaging unit.
3. Weights do not include economizer. See Tables 1a and 1b for economizer weights.
CAUTION: All panels must be in place when rigging.
Fig. 6 — Rigging Details
