TYPICAL WIRING SCHEMATICS — 579F (cont)

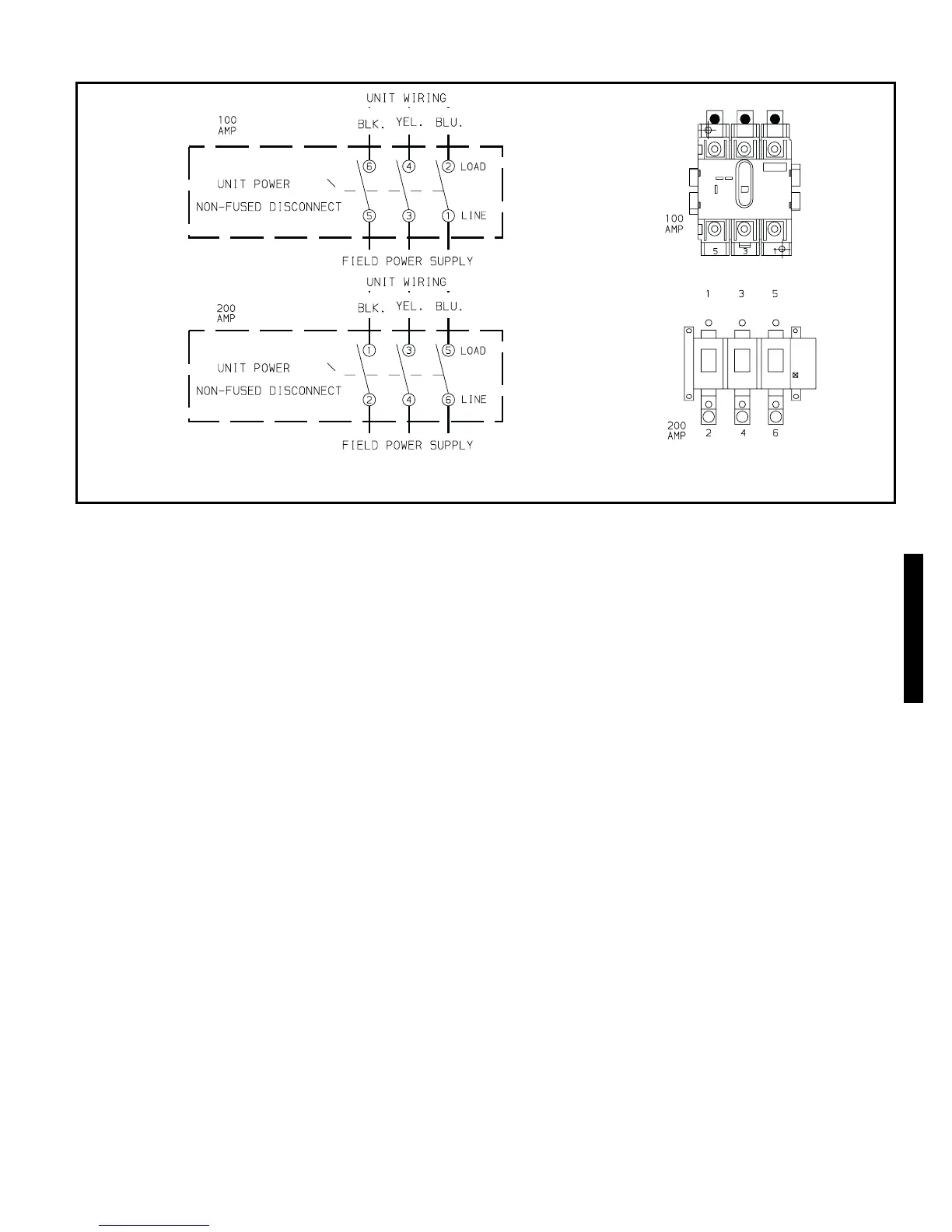

Non-Fused Disconnect (Optional) — 579F180-300
NOTES:
1. If the Non-Fused Disconnect Service Option is ordered for these units, the Non-Fused Disconnect will be factory-installed.
2. The Disconnect takes the place of TB-1 as shown on the unit wiring diagram label and the component arrangement label.
a48-6005
579F180-300
