76

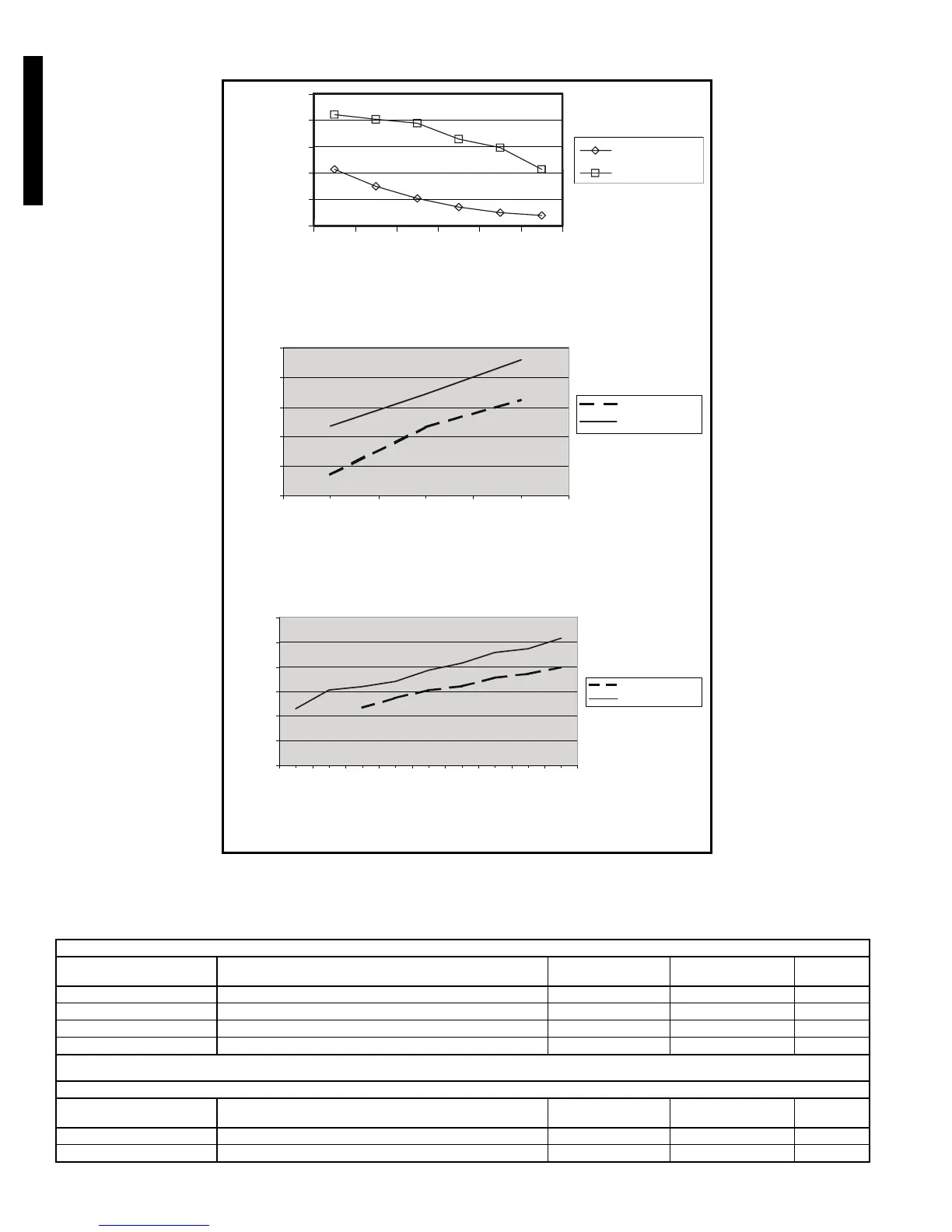

PERFORMANCE DATA (cont)
POWER EXHAUST OPTIONS
VERTICAL — MOUNTED IN ECONOMIZER HOOD
POWER EXHAUST
PART NO.
POWER EXHAUST DESCRIPTION
APPLICATION
USAGE
POWER OUTPUT
(Hp per fan)
NO.
FANS
CRPWREXH030A01 Power Exhaust System (208/230-1-60) 036-073 0.23 2
CRPWREXH021A01 Power Exhaust System (460-3-60) 036-073 0.24 2
CRPWREXH022A01 Power Exhaust System (208/230-1-60) 090-151 0.47 2
CRPWREXH023A01 Power Exhaust System (460-3-60) 090-151 0.37 2
HORIZONTAL — MOUNTED IN RETURN DUCTWORK
POWER EXHAUST
PART NO.
POWER EXHAUST DESCRIPTION
APPLICATION
USAGE
POWER OUTPUT
(Hp per fan)
NO.
FANS
CRPWREXH028A01 Horizontal Power Exhaust (208/230-1-60) All 0.48 1
CRPWREXH029A01 Horizontal Power Exhaust (460-3-60) All 0.48 1
Vertical EconoMi$er IV and EconoMi$er2
Performance Data (580F036-151)
0
1000
2000
3000
4000
5000
0 0.1 0.2 0.3 0.4 0.5
3-6 Ton
7.5-12.5 Ton
STATIC PRESSURE (in. wg)
FLOW (cfm)
VERTICAL POWER EXHAUST PERFORMANCE
0
500
1000
1500
2000
2500
0.05
0.15
0.25
STATIC PRESSURE (in. wg)
FLOW IN CUBIC FEET PER MINUTE (cfm)
3-6 Ton
7 1/2 - 12 1/2 To
n
0
5
10
15
20
25
30
0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50
3-6 Ton
7 1/2-12 1/2 To
n
STATIC PRESSURE (in. wg)
FLOW IN CUBIC FEET PER MINUTE (cfm)
BAROMETRIC RELIEF FLOW CAPACITY
OUTDOOR AIR DAMPER LEAKAGE
a48-6308
a48-6202
a48-6203
580F036-151
