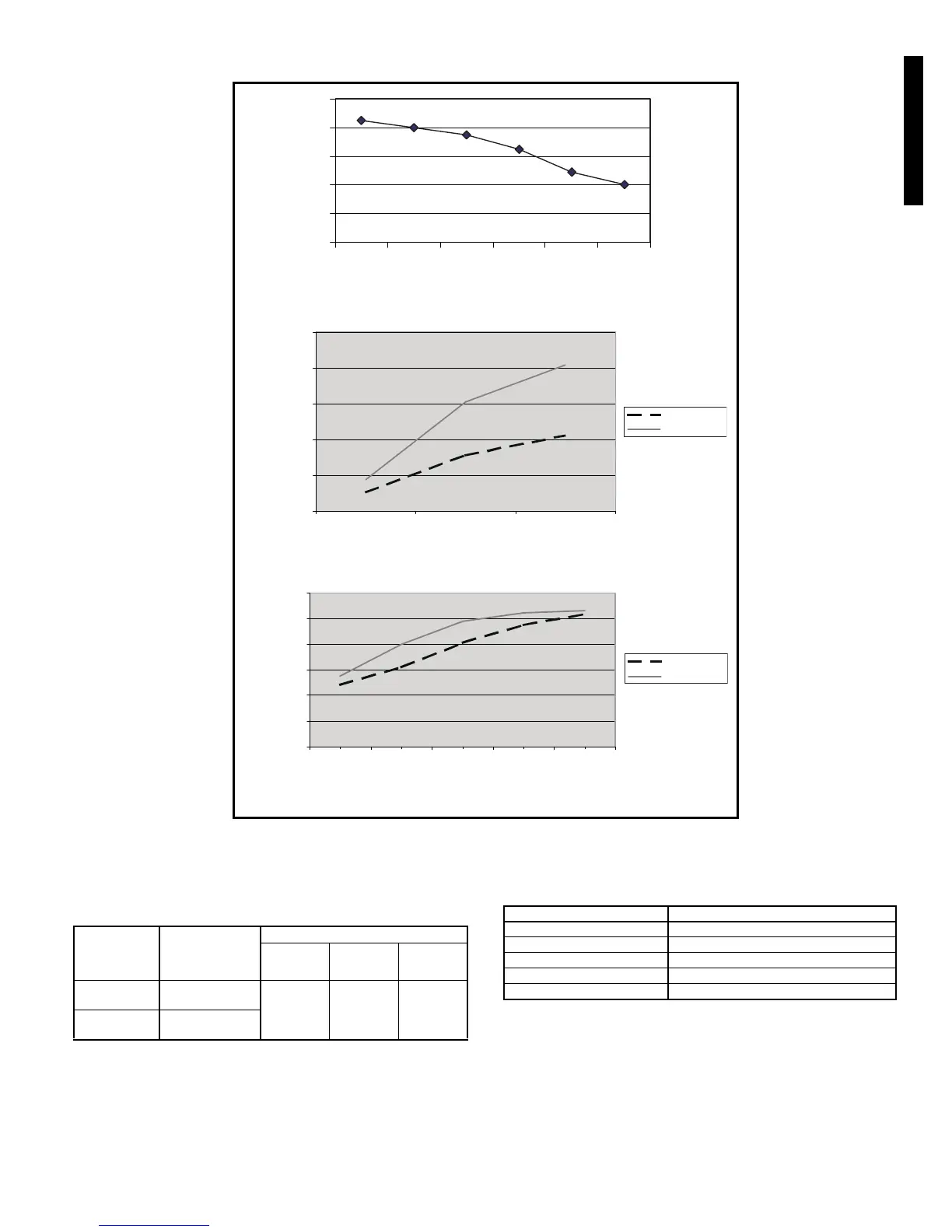

PERFORMANCE DATA (cont)
OPTIONAL POWER EXHAUST
POWER REQUIREMENTS
LEGEND
EVAPORATOR-FAN MOTOR EFFICIENCY
*Single phase/three-phase.
NOTE: The EPACT (Energy Policy Act of 1992) regulates energy
requirements for specific types of indoor fan motors. Motors regulated
by EPACT include any general purpose, T-frame (three-digit, 143 and
larger), single-speed, foot mounted, polyphase, squirrel cage induction
motors of NEMA (National Electrical Manufacturers Association) design
A and B, manufactured for use in the United States. Ranging from 1 to
200 Hp, these continuous-duty motors operate on 230 and 460 volt,
60 Hz power. If a motor does not fit into these specifications, the motor
does not have to be replaced by an EPACT-compliant energy-efficient
motor. Variable-speed motors are exempt from EPACT compliance
requirements. Therefore, the indoor-fan motors for these units are
exempt from these requirements.
0
500
1000
1500
2000
2500
0.05" 0.15" 0.25"
Static Pressure (in. wg)
Flow in cubic feet per minute (cfm)
3-6 Ton
7 1/2 - 12 1/2 Ton
0
5
10
15
20
25
30
0.1" 0.2" 0.3" 0.4" 0.5"
Static Pressure (in. wg)
Flow in cubic feet per minute (cfm)
3-6 Ton
7 1/2 - 12 1/2 Ton
0
500
1000
1500
2000
0 0.1 0.2 0.3 0.4 0.5
STATIC PRESSURE (in. wg)
HORIZONTAL POWER EXHAUST PERFORMANCE
BAROMETRIC RELIEF CAPACITY
OUTDOOR AIR DAMPER LEAKAGE
a48-6225
a48-6224
a48-6309
Horizontal EconoMi$er IV and EconoMi$er2
Performance Data (580F036-151)
UNIT
SIZE
AMPS AT
230 V
(2 Fans
Running)
MOCP
230 VAC 460 VAC 575 VAC
580F036-073
1.40 Amps at
60 Hz
15.0 amps 15.0 amps 15.0 amps
580F090-151
3.04 Amps at
60 Hz
MOCP — Maximum Overcurrent Protection
UNIT 580F MOTOR EFFICIENCY (%)
036,048 75
060 74/84*
072, 073 84
090-121 80
150, 151 87
580F036-151
