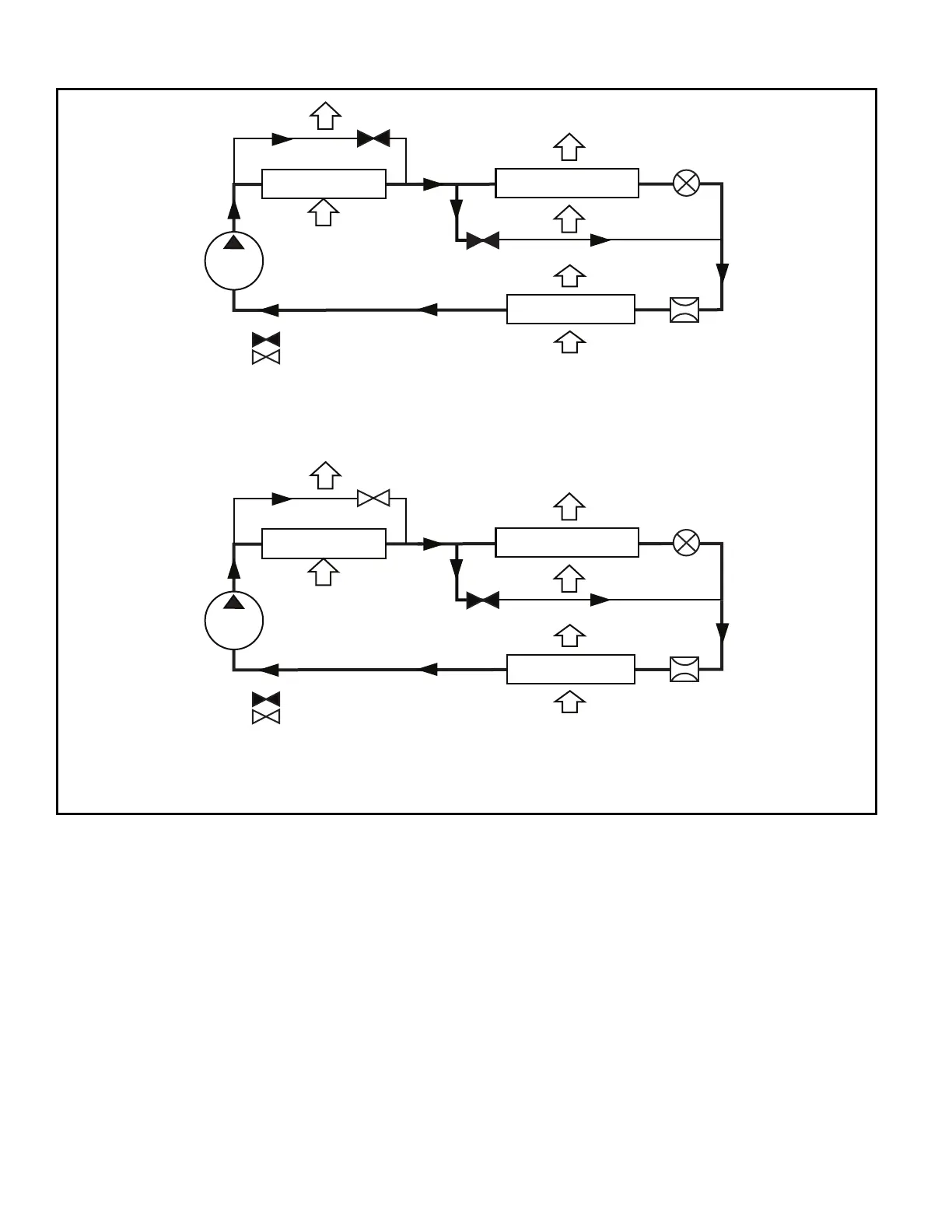

SUBCOOLING MODE (REHEAT 1) - PERFECT HUMIDITY™ SYSTEM WITH
SINGLE STAGE COOLING
HOT GAS REHEAT MODE (REHEAT 2) - PERFECT HUMIDITY SYSTEM WITH
SINGLE STAGE COOLING
CONDENSER COIL
PERFECT HUMIDITY COIL
EVAPORATOR COIL
COMPRESSOR
OUTDOOR AIR
INDOOR LEAVING
AIR
INDOOR ENTERING
AIR
DSVx
VALVE
CSVx
VALVE
ACUTROL
METERING
DEVICE
REHEAT MODE
METERING
DEVICE (TXV)
= CLOSED VALVE
= OPEN VALVE
CONDENSER COIL
PERFECT HUMIDITY COIL
EVAPORATOR COIL
COMPRESSOR
OUTDOOR AIR
INDOOR LEAVING
AIR
INDOOR ENTERING
AIR
DSVx
VALVE
CSVx
VALVE
ACUTROL
METERING
DEVICE
REHEAT MODE
METERING
DEVICE (TXV)
= CLOSED VALVE
= OPEN VALVE
SEQUENCE OF OPERATION (CONT)
