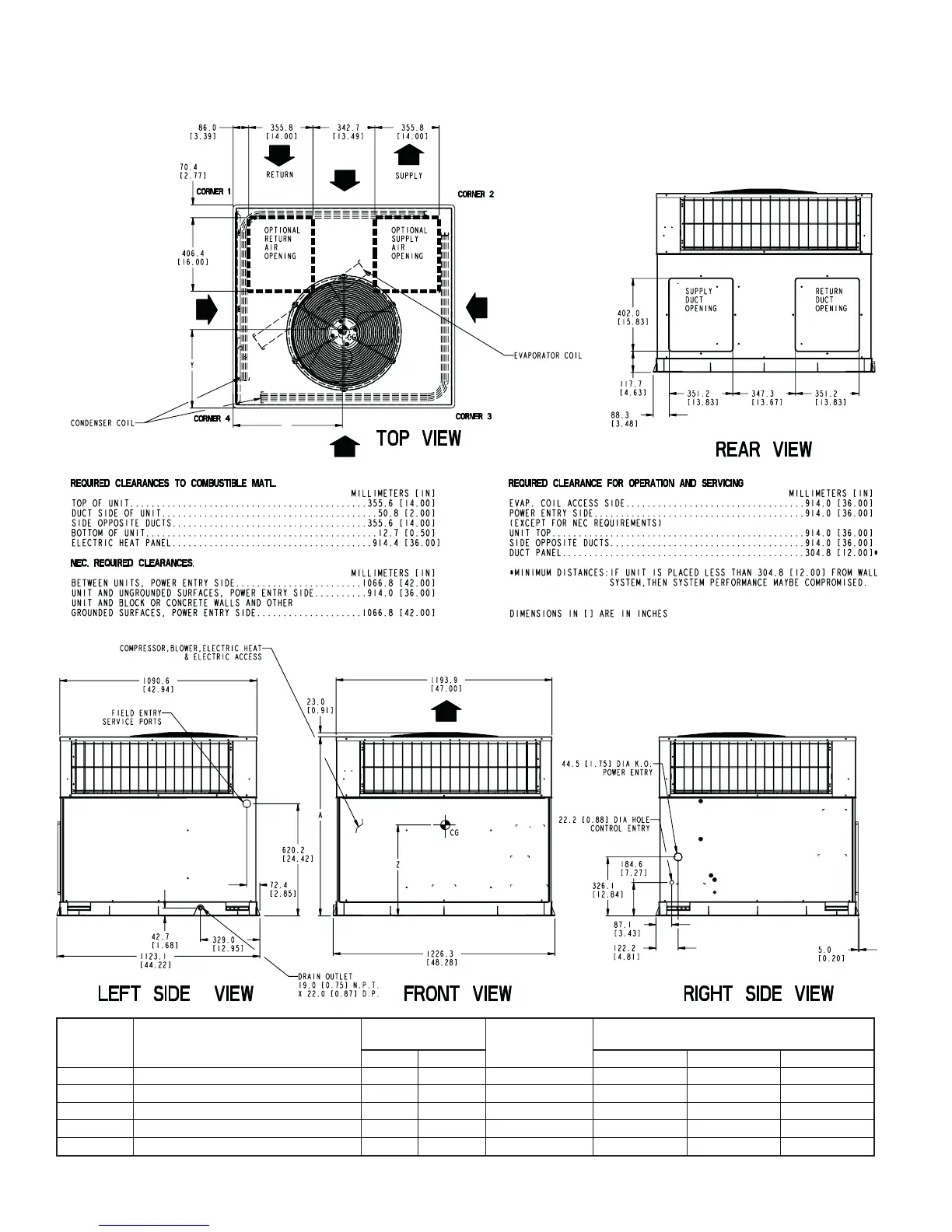

Fig. 3—601A048-060/602A042-060 Unit Dimensions
UNIT ELECTRICAL CHARACTERISTICS
UNIT WEIGHT
UNIT HEIGHT
IN. (MM)
”A”
CENTER OF GRAVITY
IN. (MM)
Lb Kg X Y Z
601A048 208/230-3-60, 460-3-60 353 160.1 38.98 (990.2) 19.9 (505.5) 15.7 (398.8) 17.0 (431.8)
601A060 208/230-3-60, 460-3-60 418 189.6 38.98 (990.2) 19.9 (505.5) 15.7 (398.8) 17.0 (431.8)
602A042 208/230-3-60, 460-3-60 350 158.8 40.98 (1040.9) 19.9 (505.5) 15.7 (398.8) 16.6 (421.6)
602A048 208/230-3-60, 460-3-60 315 170.1 40.98 (1040.9) 19.9 (505.5) 15.7 (398.8) 18.0 (457.2)
602A060 208/230-3-60, 460-3-60 428 194.1 42.98 (1091.7) 19.9 (505.5) 15.7 (398.8) 17.6 (447.0)
