—9—

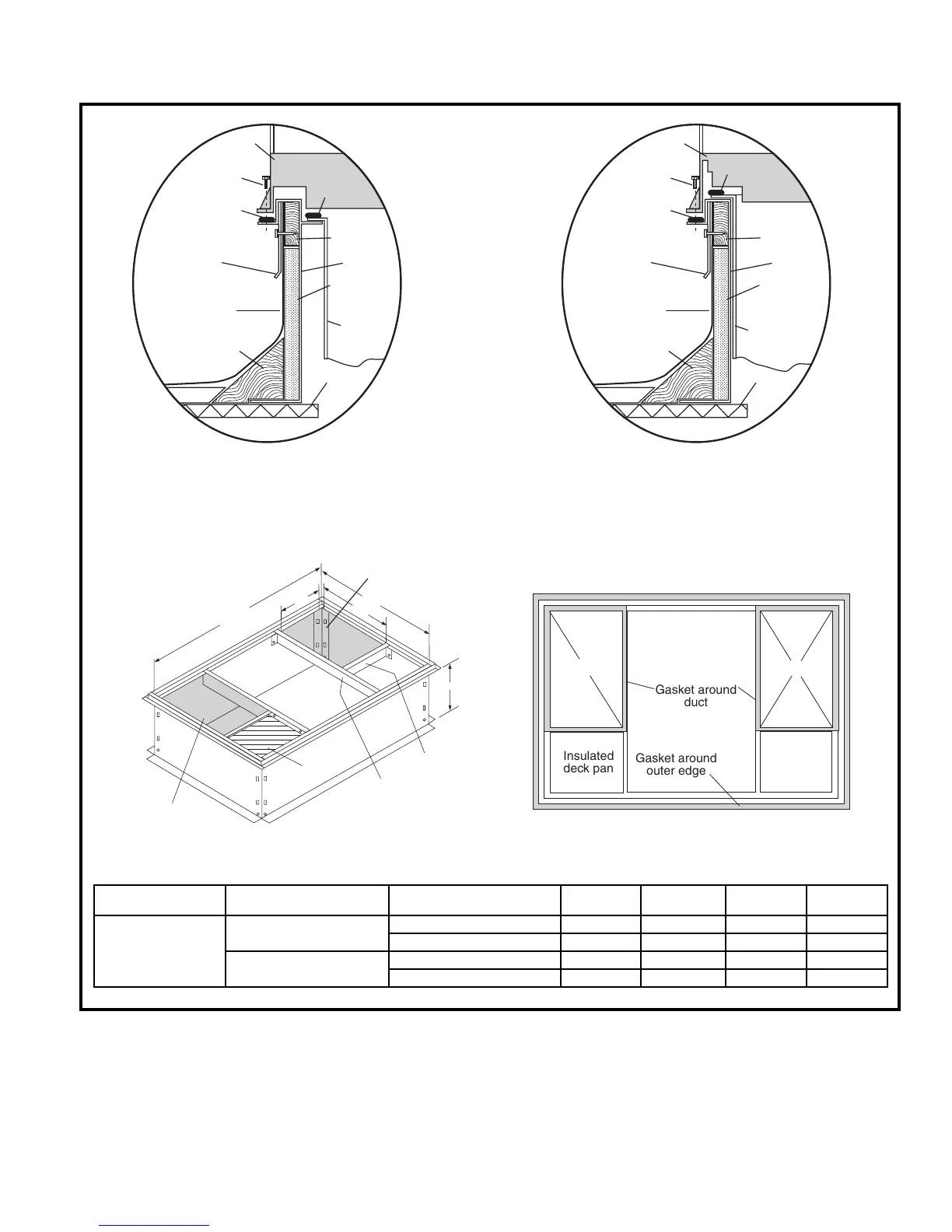

ACCESSORY DIMENSIONS
C00076
Gasket around
outer edge
Insulated
deck pan
Gasket around
duct
S/A
R/A
HVAC unit
base
*Gasketing
outer flange
Flashing field
supplied
Roofing material
field supplied
Cant strip
field supplied
*Provided with roofcurb
Roof
Duct work
field supplied
Insulation (field
supplied)
Roofcurb*
Wood nailer*
Gasketing
inner flange*
Screw
(NOTE A)
Roof Curb for Small Cabinet
Note A: When unit mounting screw is used,
retainer bracket must also be used.
HVAC unit
base
*Gasketing
outer flange
Flashing field
supplied
Roofing material
field supplied
Cant strip
field supplied
*Provided with roofcurb
Roof
Duct work
field supplied
Insulation (field
supplied)
Roofcurb*
Wood nailer*
Gasketing
inner flange*
Screw
(NOTE A)
Roof Curb for Large Cabinet
Note A: When unit mounting screw is used,
retainer bracket must also be used.
A
B Typ.
Supply opening
(B x C)
Long
Support
D
44
5/16"
(1125.5mm)
Return opening
(B X C)
Insulated
deck pan
Short
Support
C Typ.
UNIT SIZE ODS ORDER NO.
A
in. [mm]
B
in. [mm]
C
in. [mm]
D
in. [mm]
ROOF CURB
024-036
CPRFCURB006A00 8 [203] 11 [279] 16-1/2 [419] 28-3/4 [730]
CPRFCURB007A00 14 [356] 11 [279] 16-1/2 [419] 28-3/4 [730]
042-060
CPRFCURB008A00 8 [203] 16-3/16 [411] 17-3/8 [441] 40-1/4 [1022]
CPRFCURB009A00 14 [356] 16-3/16 [411] 17-3/8 [441] 40-1/4 [1022]
Roof Curb Dimensions
Side View
Notes:
1. Roof curb must be set up for unit being installed.
2. Seal strip must be applied, as required, to unit being installed.
3. Dimensions in [ ] are in millimeters.
4. Roof curb is made of 16-gage steel.
5. Table lists only the dimensions, per part number, that have changed.
6. Attach ductwork to curb (flanges of duct rest on curb).
7. Insulated panels: 1-in. thick fiberglass 1 lb. density.
8. Dimensions are in inches.
9. When unit mounting screw is used (Note A), a retainer bracket must be used as
well. This bracket must also be used when required by code for hurricane or
seismic conditions. This bracket is available through Micrometl.
