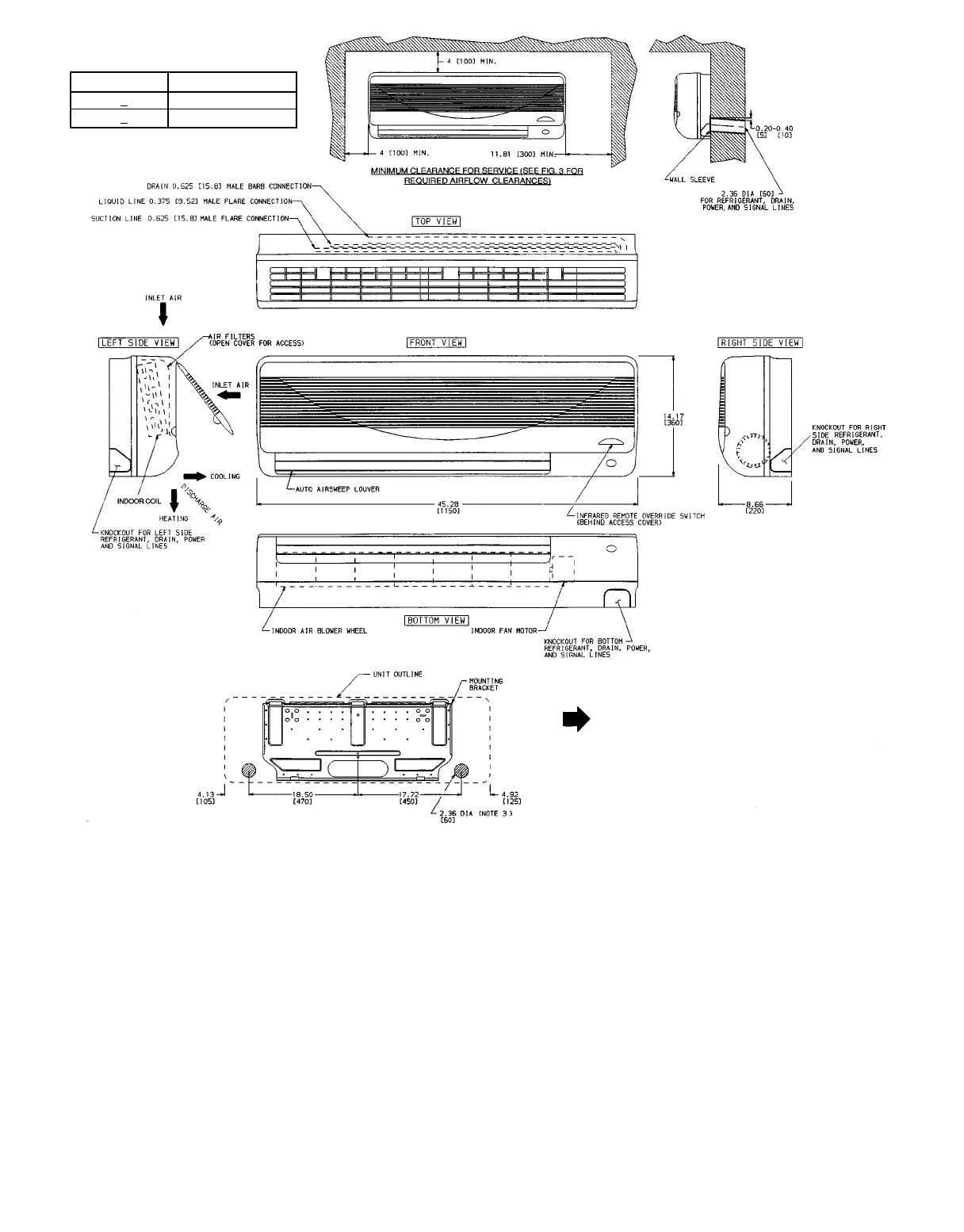

Fig. 2 — 619E Dimensional Drawing
UNIT WEIGHT
619E
018 39 Lb [17.5 Kg]
619E
024 43 Lb [19.5 Kg]
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction if airflow.
3. Refrigerant, drain, and power connections may be made in
unit rear, bottom, left side, or right side.
4. Refrigerant is metered by AccuRater™ device in the fan coil
unit on 538A and 538B applications. A thermostatic expan-
sion valve is used in the outdoor unit on 538S applications.
Insulate both refrigerant lines on 538S and 538B applications.
5. The 49 top and left clearances are absolute minimums. Clear-
ances of 109 are recommended.
—3—
