Bryant 698B - BALANCE POINT WORKSHEET; BUILDING HEAT LOSS AND HEATING CAPACITY CHARTS

—15—

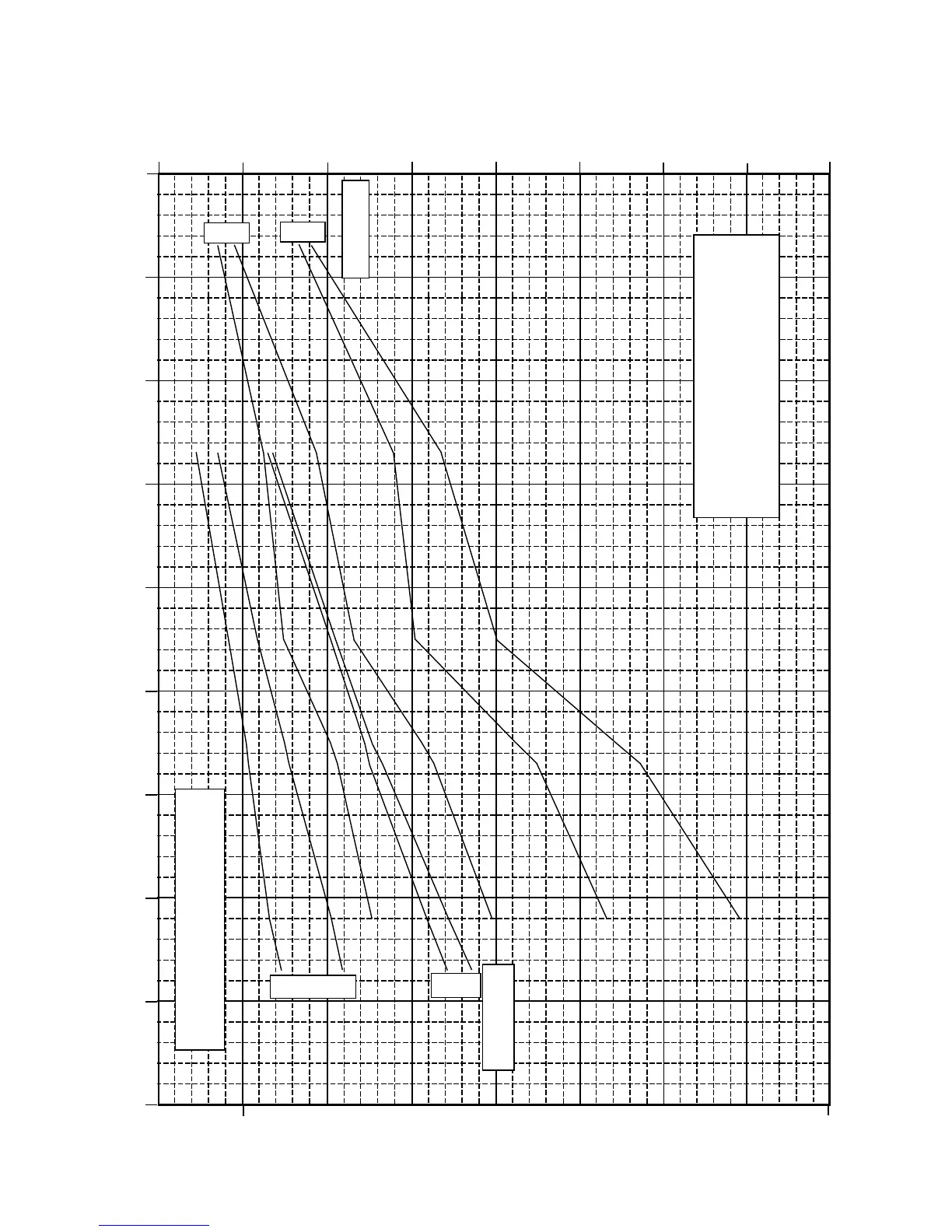

698BNX BALANCE POINT WORKSHEET
BUILDING HEAT LOSS, 1000 BTU/HR
UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR
Printed in U.S.A.
OUTDOOR TEMPERATURE, °F
-10
0
10 20
30 40
50 60 70
80
2.9 5.9 8.8 11.7 14.7 17.6 20.5
70 60 50 40 30 20 10
KW
BASED ON INDOOR ENT. AIR AT
70∞F AND AT RATED CFM
23.4
80
A- 698BNX024 / FV4ANF002 B- 698BNX036 / FV4ANF003 C- 698BNX048 / FV4ANF005 D- 698BNX060 / FV4ANB006
High Speed
C
D
C D
Low Speed
B
A
B
A
