Bryant ASPAS1BBL015 - Page 44

ITEM PART NO. QTY. DESCRIPTION
1 077483 REF BATT 12VDC 75-AH 26 (NOT INCLUDED)
2 038804D 1 CABLE BATT RED #4 X 20.00
3 038805B 1 CABLE BATT BLK #4 X 23.00
4 0742600131 1 ASSY,WIRE#16 RED 1.6
5 022131 1 WASHER FLAT 3/8 ZINC
6 046526 1 WASHER LOCK M10
7 052213 1 SCREW HHC M10-1.25 X 20 G8.8
8 075763 3 BOOT, BATTERY CABLE
9 0D8668 1 BRACKET, BATTERY HOLD DOWN 1.5
13 050331A 1 BATTERY POST COVER (RED+)
14 050331 1 BATTERY POSTCOVER (BLACK-)
15 0C2454 2 SCREW TH-FRM M6-1X16 N WA Z/JS
16 025507 1 WASHER SHAKEPROOF EXT 7/16 STL
17 027482 2 WASHER SHAKEPROOF EXT 5/16 STL
1
5
SO
LEN
O
I
D
8
1
3
1
2
S
TARTE
R
14
8
8
T
O
EN
G
IN
E
BL
OCK
5
6
7
9
1
6
3
4
42 Bryant
Section 9 - Exploded Views and Parts
Bryant Liquid-cooled 15 kW Generators

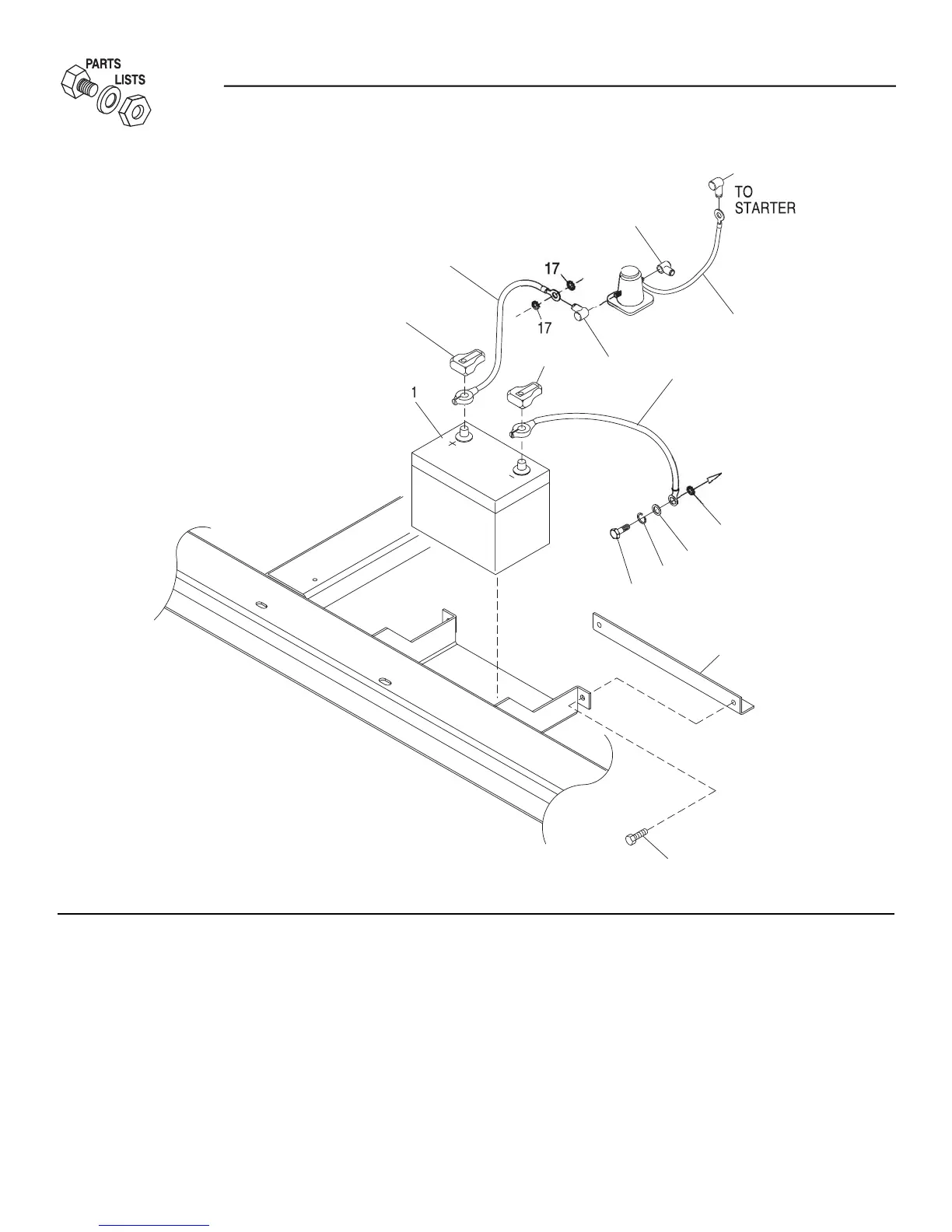

Battery — Drawing No. 0E0770-B
