—4—
NOTES:
1. Dimensions in ( ) are in millimeters.
2. Refer to Fig. 4 and 5 for unit operating weights.
3. Remove boards at ends of unit and runners prior to rigging.
4. Rig by inserting hooks into unit base rails as shown. Use corner post
from packaging to protect coil from damage. Use bumper boards for
spreader bars on all units.
5. Weights do not include optional EconoMi$erIV. Add 90 lb (41 kg) for
EconoMi$erIV weight.
6. Weights given are for aluminum evaporator and condenser coil plate
fins.
CAUTION: All panels must be in place when rigging

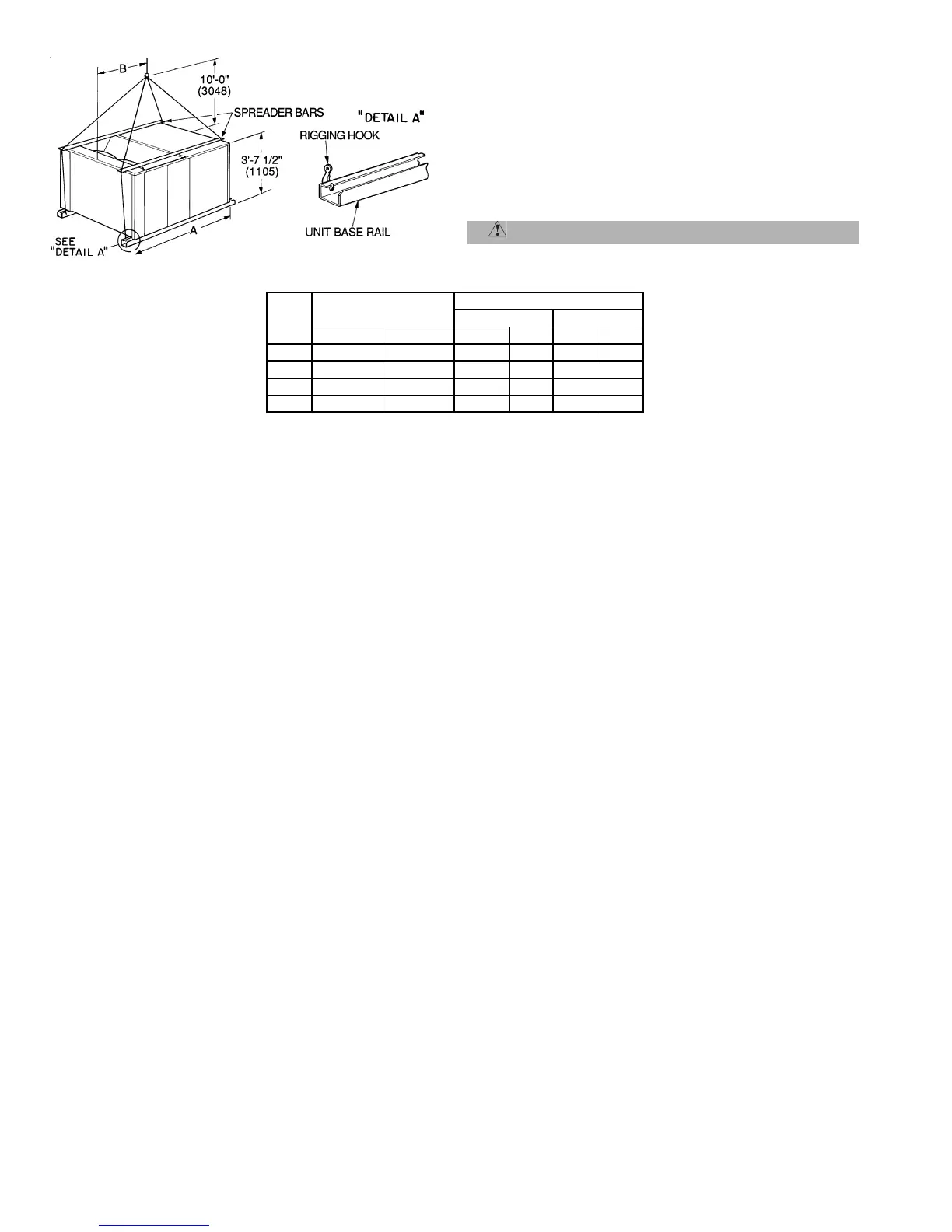

Fig. 3 — Rigging Details
UNIT
579F
MAXIMUM
SHIPPING WEIGHT
DIMENSIONS
AB
lb kg Ft-in. mm Ft-in. mm
180 1775 805 6-11
1
/
2
2121 3-5 1041
216 1875 850 6-11
1
/
2
2121 3-3 991
240 1985 900 6-11
1
/
2
2121 3-2 965
300 2135 968 6-11
1
/
2
2121 3-2 965
To Next Page
