—5—
NOTES:
1. Refer to print for roof curb accessory dimensions.
2. Dimensions in ( ) are in millimeters.
3. Center of Gravity.
4. Direction of airflow.
5. Ductwork to be attached to accessory roof curb only.
6. Minimum clearance:
•Rear: 7′-0″ (2134) for coil removal. This dimension can be reduced to
4′-0″ (1219) if conditions permit coil removal from the top.
•4′-0″ (1219) to combustible surfaces, all four sides (includes between
units).
• Left side: 4′-0″ (1219) for proper condenser coil airflow.
• Front: 4′-0″ (1219) for control box access.
• Right side: 4′-0″ (1219) for proper operation of damper and power
exhaust if so equipped.
•Top: 6′-0″ (1829) to assure proper condenser fan operation.
• Bottom: 14″ (356) to combustible surfaces (when not using curb).
• Control box side: 3′-0″ (914) to ungrounded surfaces, non-combustible.
• Control box side: 3′-6″ (1067) to block or concrete walls, or other
grounded surfaces.
• Local codes or jurisdiction may prevail.
7. With the exception of clearance for the condenser coil and the damper/
power exhaust as stated in Note #6, a removable fence or barricade
requires no clearance.
8. Dimensions are from outside of corner post. Allow 0′-
5
/
16
″ (8) on each side
for top cover drip edge.

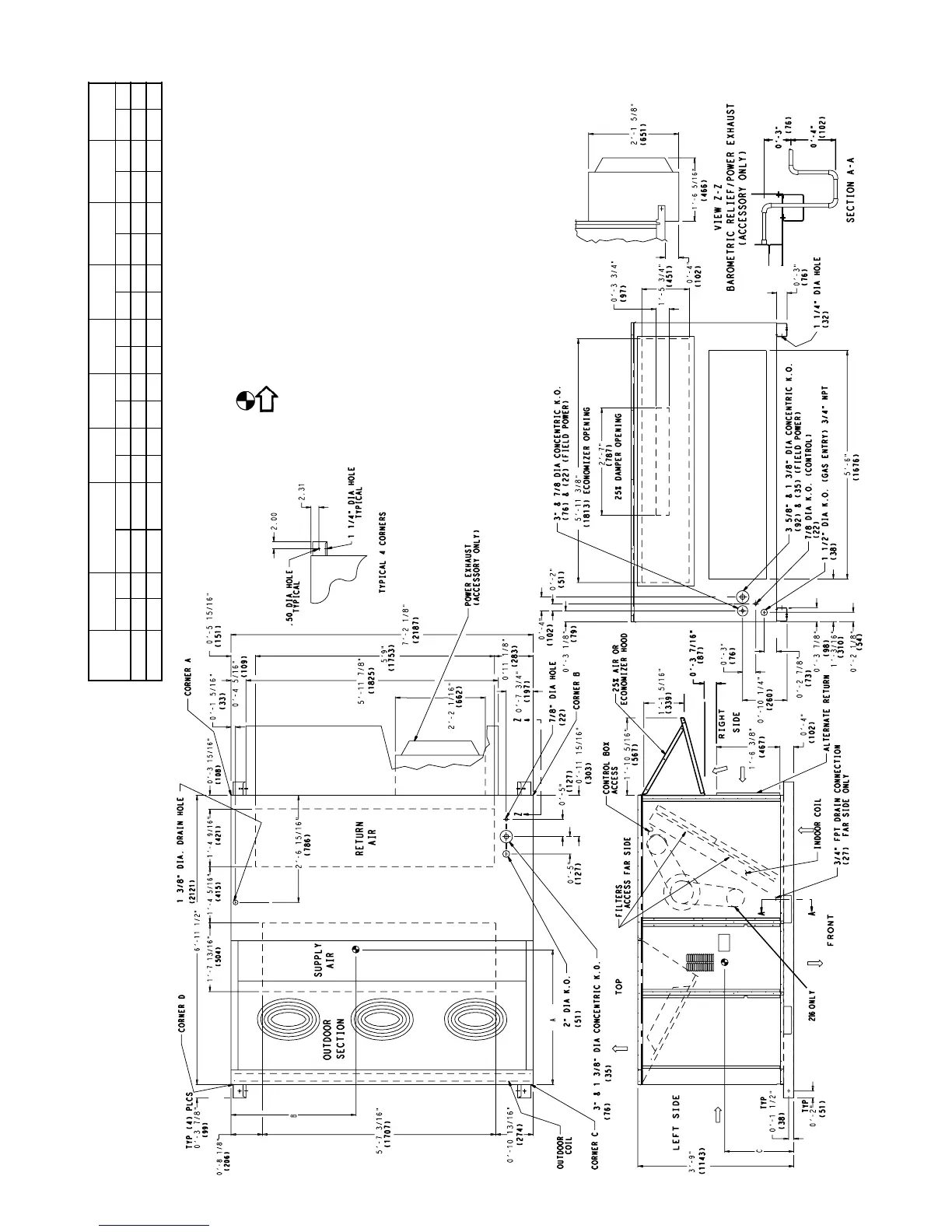

Fig. 4 — Base Unit Dimensions; 579F180,216
UNIT
STD UNIT
WEIGHT
ECONOMI$ERIV
WEIGHT
CORNER
A
CORNER
B
CORNER
C
CORNER
D
DIM A DIM B DIM C
lb kg lb kg lb kg lb kg lb kg lb kg ft-in. mm ft-in. mm ft-in. mm
579F180 1650 748 90 41 423 192 386 175 403 183 438 199 3-5 1041 3-5 1041 1-10 559
579F216 1800 816 90 41 432 196 410 186 461 209 472 214 3-3 991 3-7 1092 1- 8 508
