Bryant EVOLUTION 16 186B - Page 9

9

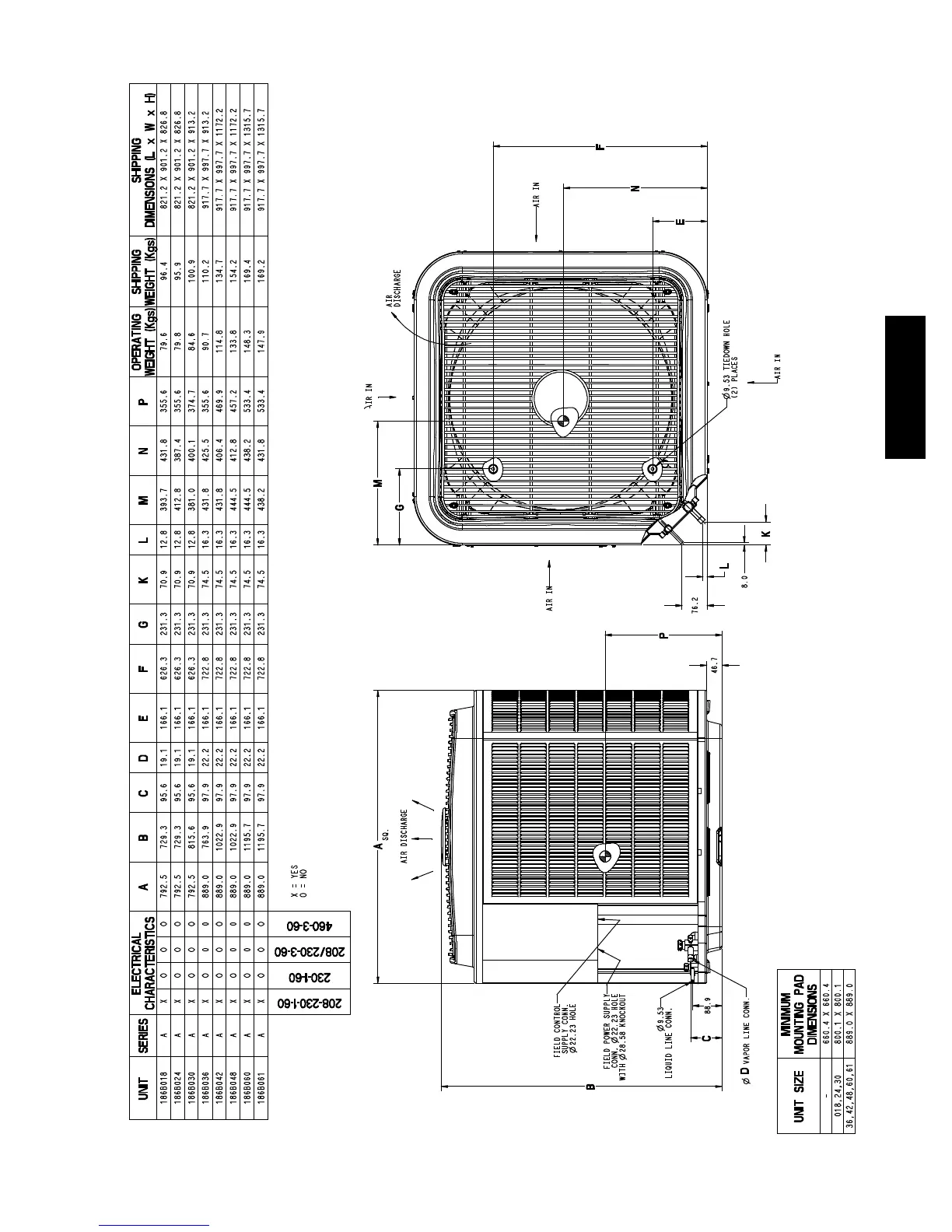

DIMENSIONS -- SI
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
- 660.4 X 660.4
018,24,30 800.1 X 800.1
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (Kgs)
SHIPPING
WEIGHT (Kgs)
SHIPPING
DIMENSIONS (L x W x H)
186B018 A X O O O 792.5 729.3 95.6 19.1 166.1 626.3 231.3 70.9 12.8 393.7 431.8 355.6 79.6 96.4 821.2 X 901.2 X 826.8 186B024 A X O O O 792.5 729.3 95.6 19.1 166.1 626.3 231.3 70.9 12.8 412.8 387.4 355.6 79.8 95.9 821.2 X 901.2 X 826.8 186B030 A X O O O 792.5 815.6 95.6 19.1 166.1 626.3 231.3 70.9 12.8 381.0 400.1 374.7 84.6 100.9 821.2 X 901.2 X 913.2 186B036 A X O 0 0 889.0 763.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 431.8 425.5 355.6 90.7 110.2 917.7 X 997.7 X 913.2 186B042 A X O O O 889.0 1022.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 431.8 406.4 469.9 114.8 134.7 917.7 X 997.7 X 1172.2 186B048 A X O 0 0 889.0 1022.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 444.5 412.8 457.2 133.8 154.2 917.7 X 997.7 X 1172.2 186B060 A X O 0 0 889.0 1195.7 97.9 22.2 166.1 722.8 231.3 74.5 16.3 444.5 438.2 533.4 148.3 169.4 917.7 X 997.7 X 1315.7 186B061 A X O O O 889.0 1195.7 97.9 22.2 166.1 722.8 231.3 74.5 16.3 438.2 431.8 533.4 147.9 169.2 917.7 X 997.7 X 1315.7
X = YES O=NO
A
B
C
88.9
46.7
P
E
F
N
G
M
L
76.2
8.0
K
SQ.
FIELD CONTROL
SUPPLY CONN.
22.23 HOLE
FIELD POWER SUPPLY
CONN.
28.58 KNOCKOUT
VAPOR LINE CONN.
D
AIR DISCHARGE
AIR IN
AIR IN
AIR IN
AIR IN
AIR DISCHARGE
186B
