186CNV / 284ANV: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
27
A200187

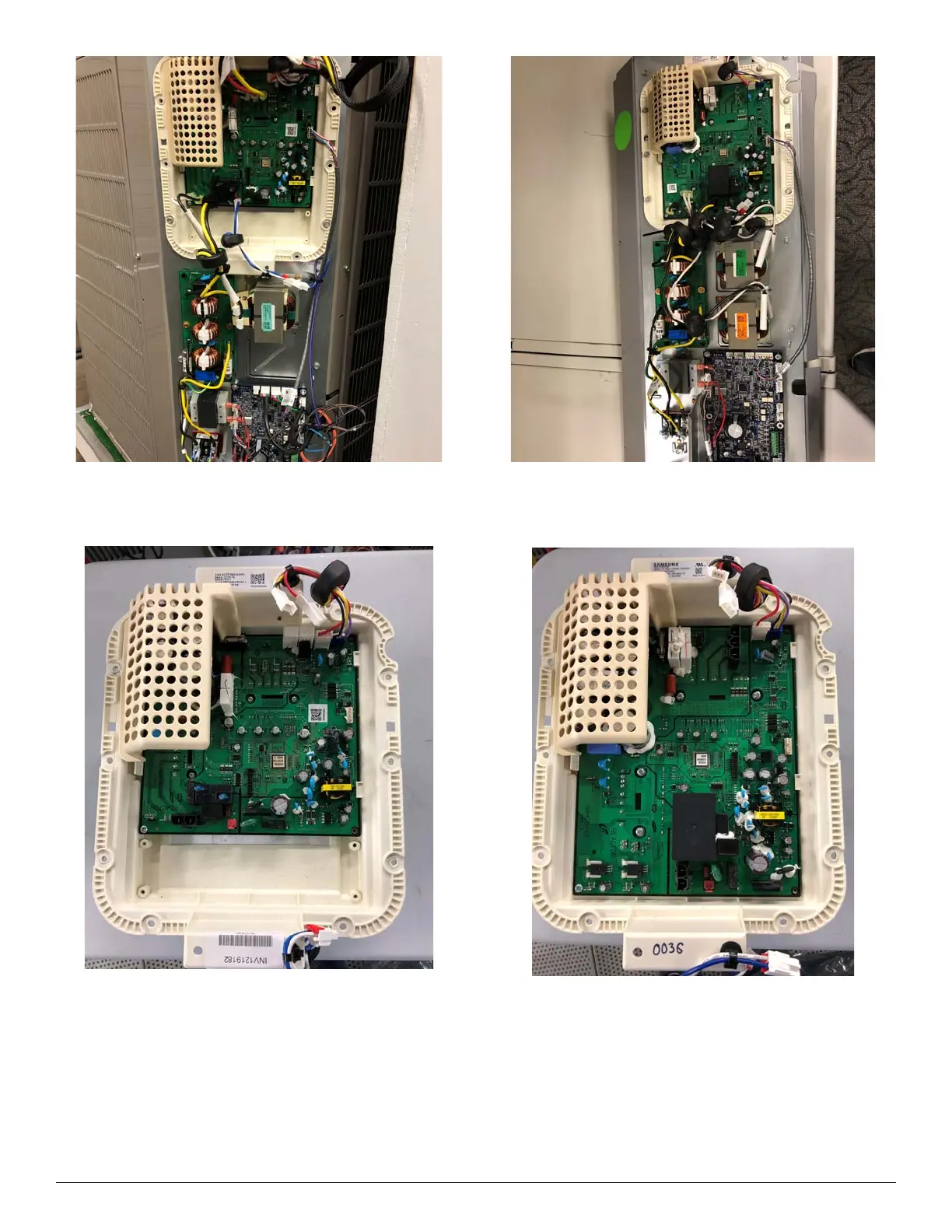

Fig. 18 – 2T/3T Control Box
A200188
Fig. 19 – 4T/5T Control Box
Note: 4T VFD similar, not exact. 5T reactors have additional chokes
to meet FCC requirement
A200189
Fig. 20 – 2T/3T VFD
A200190
Fig. 21 – 4/5T VFD 5T VFD shown (4T VFD similar but not exact)
