Bryant Evolution 284ANV048 - Page 29

186CNV / 284ANV: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
29
A200192

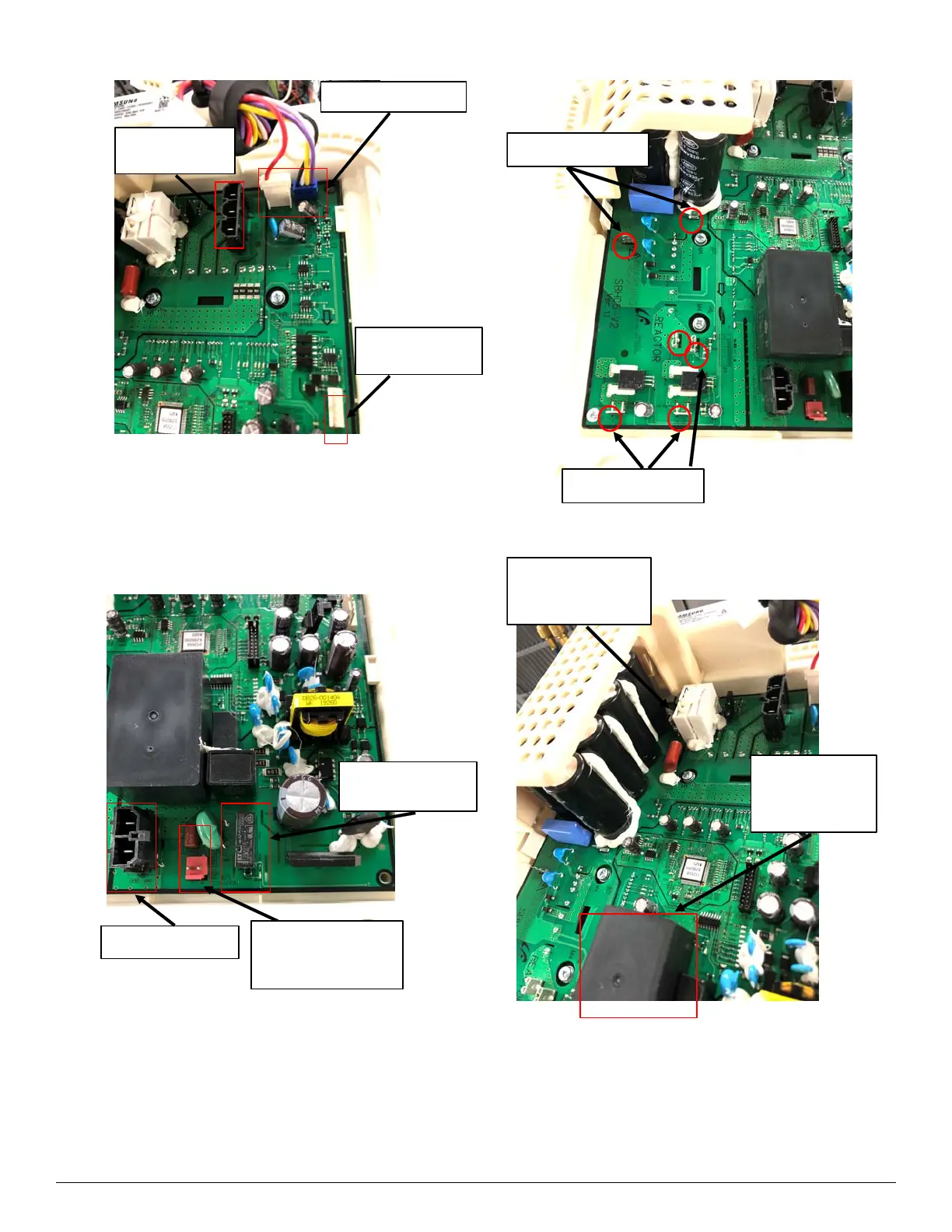

Fig. 23 – 4/5T VFD Connections
Note: 4T uses separate terminals
VFDtoPCMcomm
connection
Fanmotorconnections
CompressorUVW
connections
DC+,DC‐terminals
Reactorconnection
Filterboardinput
VFDcontrolrelay
andLED
HPSconnection(non
replaceablefuseis
directlyabove)
VFDmainpower
relay.Terminals
arenotused.
Fanmotorfuse
(hiddenbehind
resistors
)
