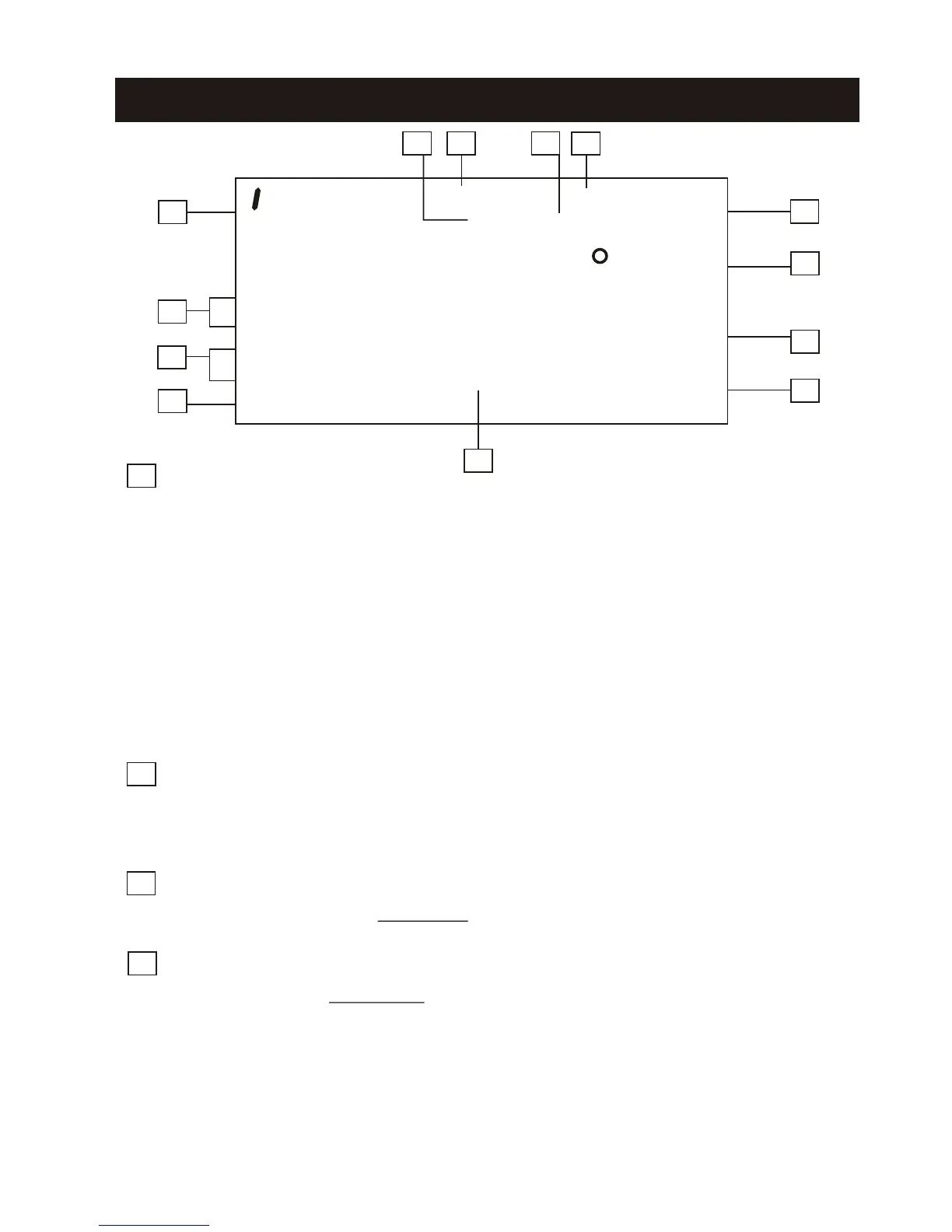

Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 6.
Time Clock
Indicates the current time of day. This clock is
also used to program the timer periods. Page 8.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature
Indicates desired room temperature(s). Page 6
Display
Page 3
1
1
1
1
2
3
4
4
6
5
7
8
9
88
88
HEAT
COOL
OFF
AUTO
Fan On
Program
Locked
Setup
On
Start
o
o
Am
Pm
12:00
88
:
Day
Night
Evening
Morning
