handheld remote control as follows:
• Select the source that you want to coincide with T2 going active.
• While pointing the remote control at the B135, press the CODE button, followed by the three digit code
“247” using the keys numbered 1 through 0 in the illustration at the left. On your remote control these
keys, or buttons, are labeled AUX/PH (2), TUNER (4), D1 (7).
• The three digit code should be entered within a few seconds of pressing CODE button or the unit will auto-
matically return to normal operation.
• To clear the T2 trigger output, press the CODE button followed by the 3 digit code “248”: AUX/PH (2), TUNER (4), D2 (8).

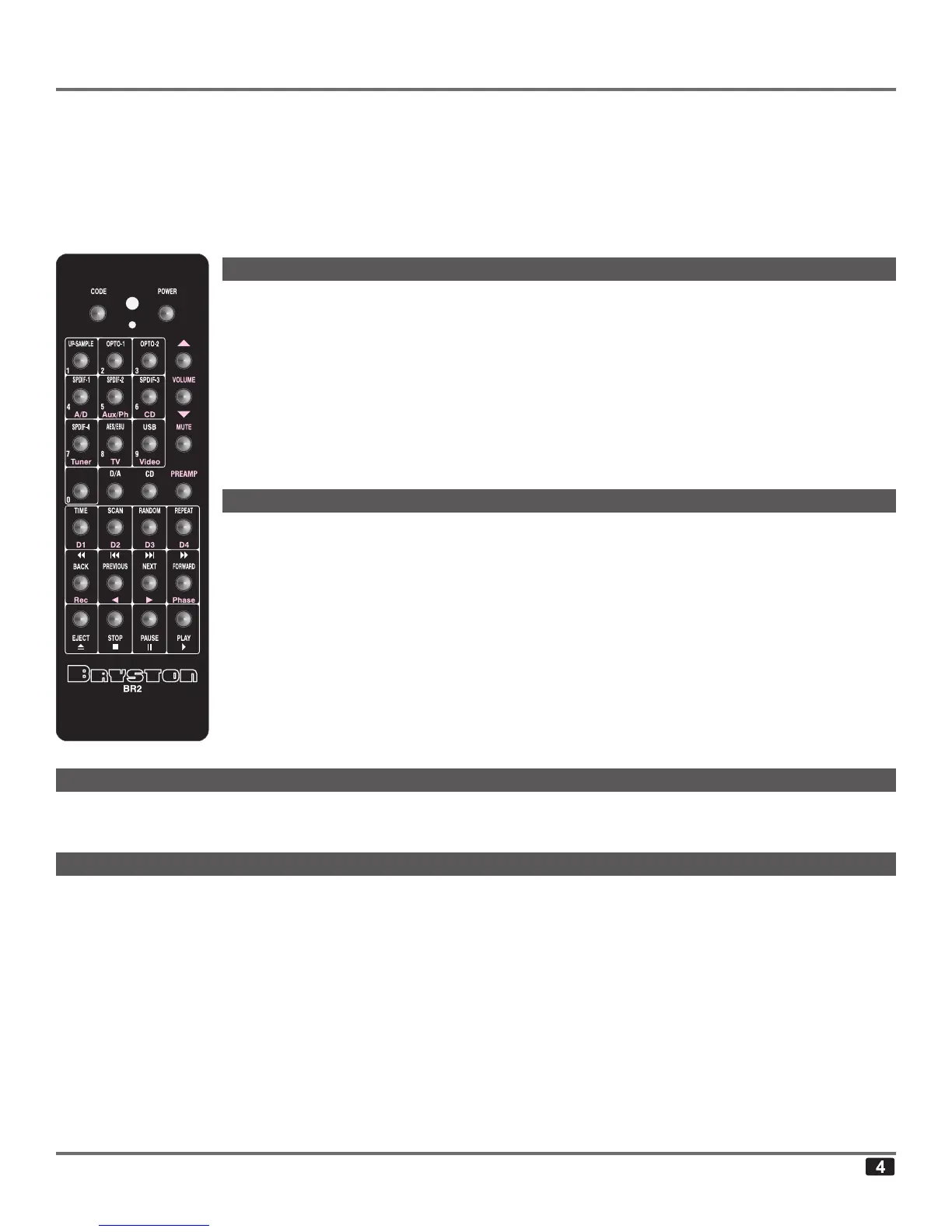

HAND-HELD INFRA-RED REMOTE CONTROL
A full function hand-held infra-red remote control is available for the B135 integrated ampli-
fier as an extra-cost option. The hand held remote unit is powered by two “AAA” batteries.
To change the battery remove the bottom cover plate by removing the four Philips screws
on the rear of the remote unit. Ensure that the batteries are correctly oriented and properly
seated in the battery holder.
The BR2remote is a full function remote allowing selection of all sources, volume up or
down (the volume control is a motor-driven design), mute ,left/right balance, power on/off
and discrete code entry. We recommend maintaining a direct line-of-sight between the hand
held remote unit and the front of the B135 to ensure the most efficient operation of the remote
features.
PROGRAMMING THE HANDHELD REMOTE CONTROL
The automatic motion-sensing backlight function in the handheld infra-red remote control unit
can be disabled by entering the 3 digit code “792” as follows:
1) Press and hold the CODE button for 5 seconds. Release when the LED flashes red.
2) After the LED stops flashing, enter the 3 digit code “792” by pressing the buttons D1, D3
then AUX/PH (see illustration on page 3)
3) To re-enable the motion-sensing backlight function, repeat steps 1 and 2 above
To completely disable the backlight, enter the 3 digit code “797” as follows:
1) Press and hold the CODE button for 5 seconds. Release when the LED flashes red.
2) After the LED stops flashing, enter the 3 digit code “797” by pressing the buttons D1, D3
then D1 (see illustration on page 3)
3) To re-enable the backlight repeat steps 1 and 2 above.
SENDING CODES TO THE B135 VIA THE IR REMOTE CONTROL
Press the CODE button on the remote control (the red LED will light) and then enter the 3 digt code, as listed in the
“Wired RS232 Remote Control” section” below . The LED will flash to confirm transmission and then extinguish.
WIRED RS232 REMOTE CONTROL
Using the DB9-female connector at the rear of the unit, the B135 can receive commands via a null modem cable at
9600 baud, 8 data bits, no parity and 1 stop bit (9600,8,N,1). Valid commands will return the “>” character indicating
that the unit is ready to receive a new command. An invalid command will return the “!” character. These serial data
commands are as follows:
000 - power off 015 - power on/off toggle 081 - select digital source 1 (D1)
001 - select analog source 1 (A/D) 019 - balance left 082 - select digital source 2 (D2)
002 - select analog source 2 (AUX/PH) 020 - balance right 083 - select digital source 3 (D3)
003 - select analog source 3 (CD) 029 - power on 084 - select digital source 4 (D4)
004 - select analog source 4 (TUNER) 058 - mute on 245 - set/reset Pass Through mode
005 - select analog source 5 (TV) 059 - mute off 247 - Set Trigger 2 for current source
006 - select analog source 6 (VIDEO) 061 - record monitor toggle 248 - Clear Trigger 2 for current source
007 - volume up 062 - record monitor on 255 - System reset; restore defaults
008 - volume down 063 - record monitor off
B135 INTEGRATEDAMPLIFIER
