23
Utilities Configuration
2 Channel x 3 way mode (FDS-336T only)
Outputs 1,3 and 5 are routed from Input A.
Outputs 2, 4 and 6 are routed from Input B.
All delay linking defaults to off.
Stereo Link will be switched on.
Band Names will be set to 1 Low, 2 Mid, 3 High, 4 Low, 5 Mid, 6 High for Out-
puts 1 - 6 respectively. The Lo and Hi crossover frequencies are set to the following
default values:
If the FDS-336T is used for a stereo 2 way only system, Outputs 3-6 would be used with Low (3-
4) and High (5-6). This allows subwoofers to be added later on Outputs 1 and 2 without rewir-
ing existing systems.

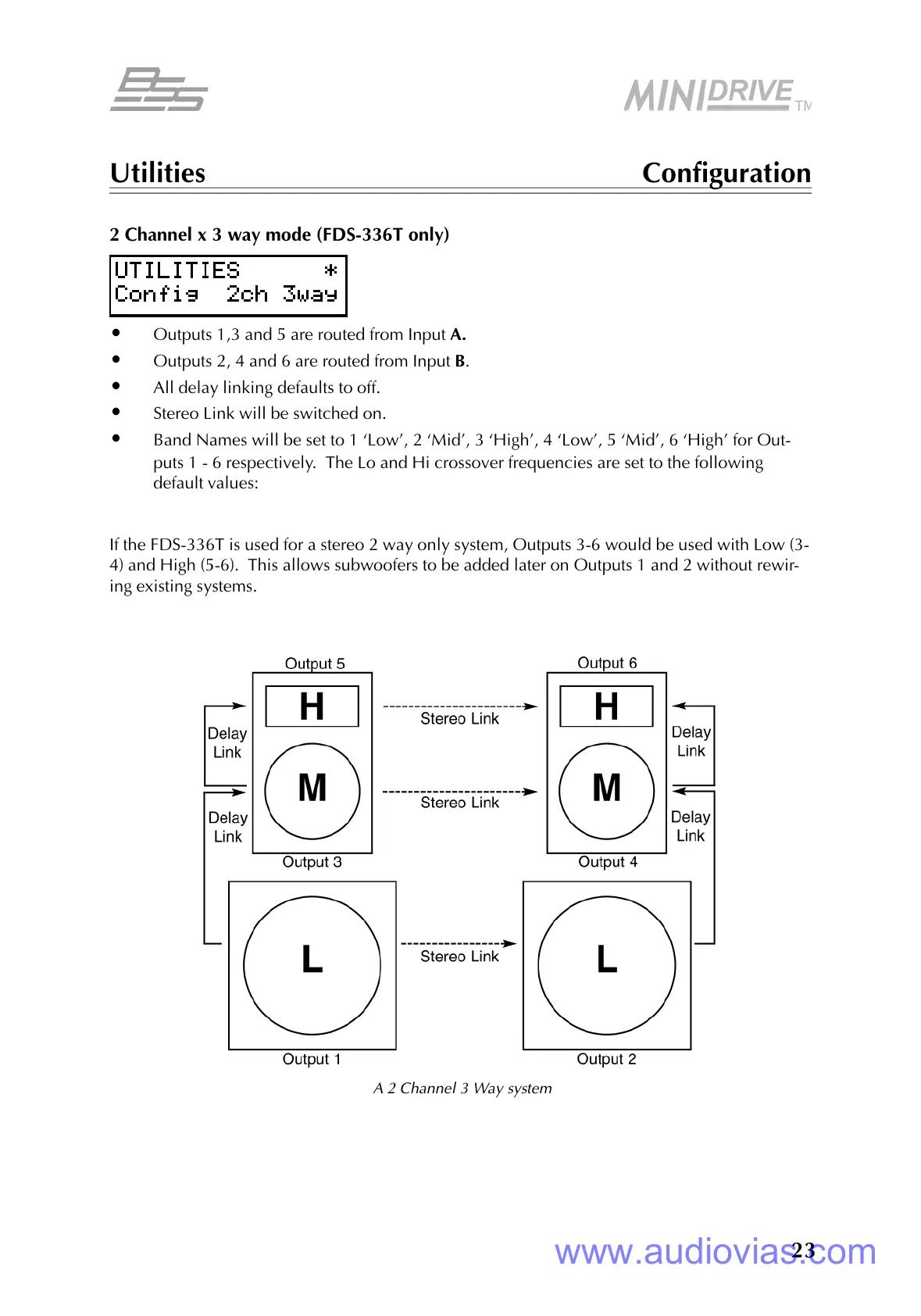

A 2 Channel 3 Way system
