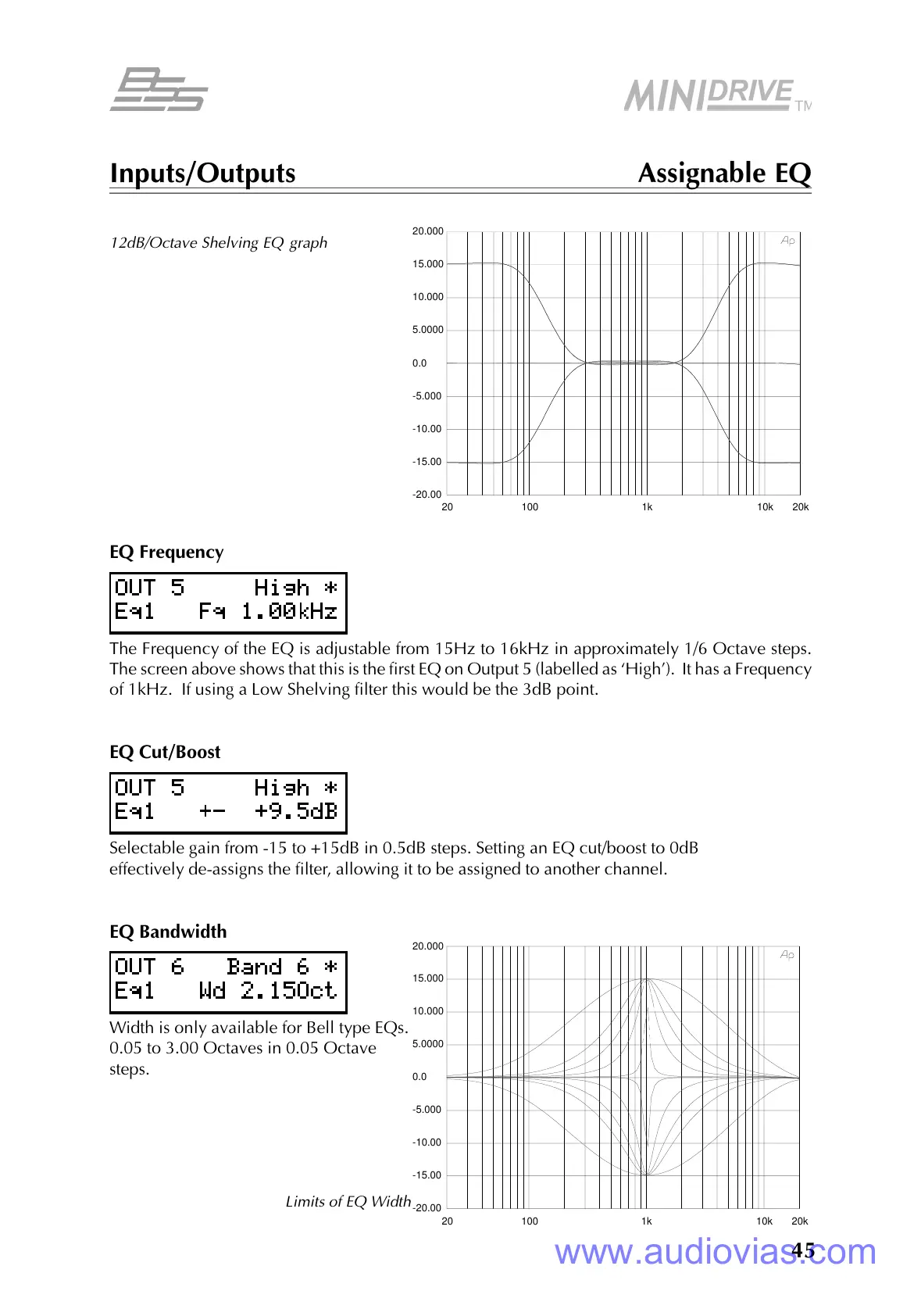

Inputs/Outputs Assignable EQ
EQ Frequency
The Frequency of the EQ is adjustable from 15Hz to 16kHz in approximately 1/6 Octave steps.
The screen above shows that this is the first EQ on Output 5 (labelled as High). It has a Frequency
of 1kHz. If using a Low Shelving filter this would be the 3dB point.
EQ Cut/Boost
Selectable gain from -15 to +15dB in 0.5dB steps. Setting an EQ cut/boost to 0dB
effectively de-assigns the filter, allowing it to be assigned to another channel.
EQ Bandwidth
Width is only available for Bell type EQs.
0.05 to 3.00 Octaves in 0.05 Octave
steps.
Limits of EQ Width
12dB/Octave Shelving EQ graph
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
10.000
15.000
20.000
20 100 1k 10k 20k
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
10.000
15.000
20.000
20 100 1k 10k 20k
