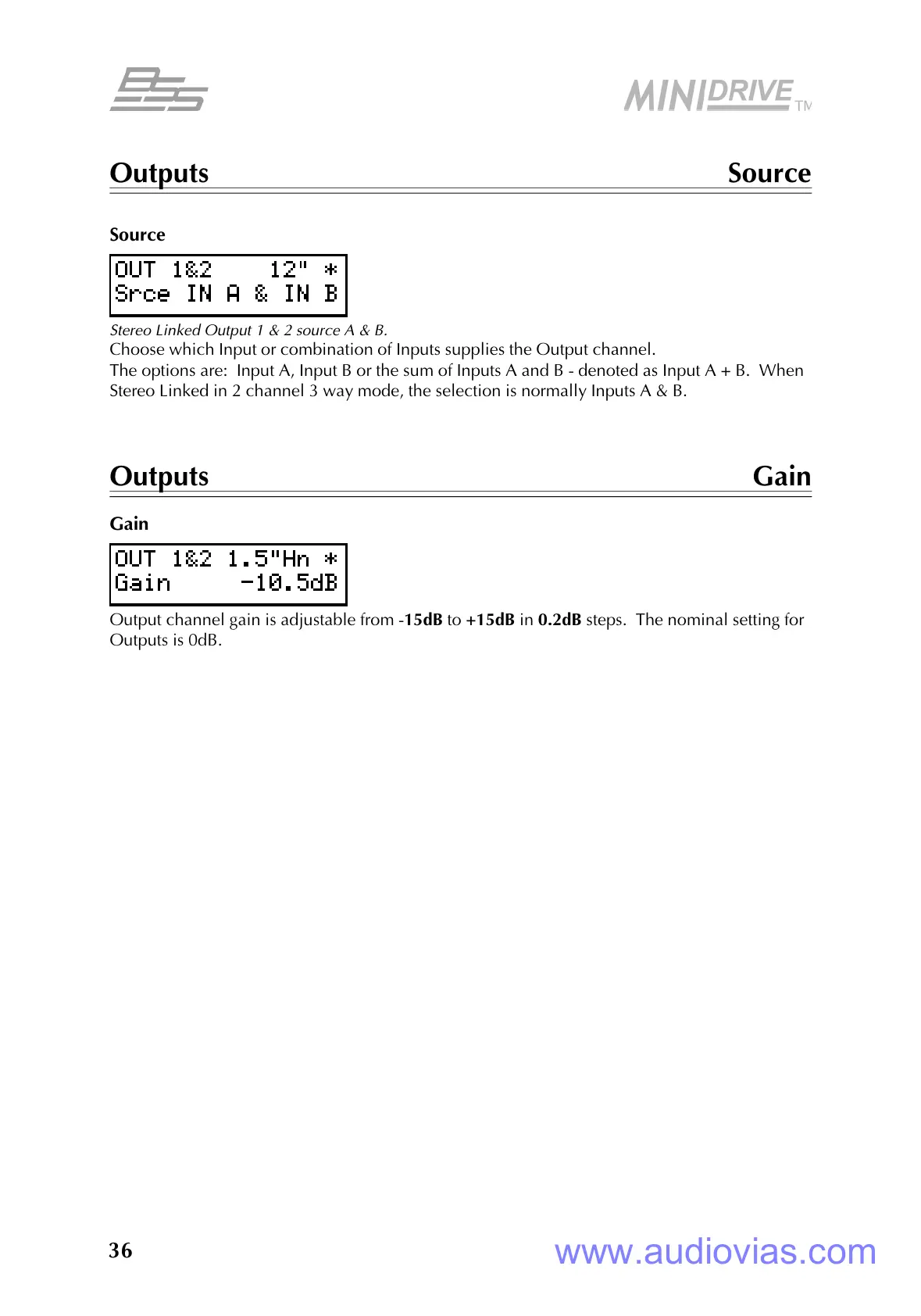

36
Source
Stereo Linked Output 1 & 2 source A & B.
Choose which Input or combination of Inputs supplies the Output channel.
The options are: Input A, Input B or the sum of Inputs A and B - denoted as Input A + B. When
Stereo Linked in 2 channel 3 way mode, the selection is normally Inputs A & B.
Outputs Gain
Gain
Output channel gain is adjustable from -15dB to +15dB in 0.2dB steps. The nominal setting for
Outputs is 0dB.
Outputs Source
