BST ekr CON 600 User Manual

Electrical Connection
5
ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 17/47
5.3.2 Master-Slave Guiding with Four Edge Sensors
Application with
ekrCON600 controller

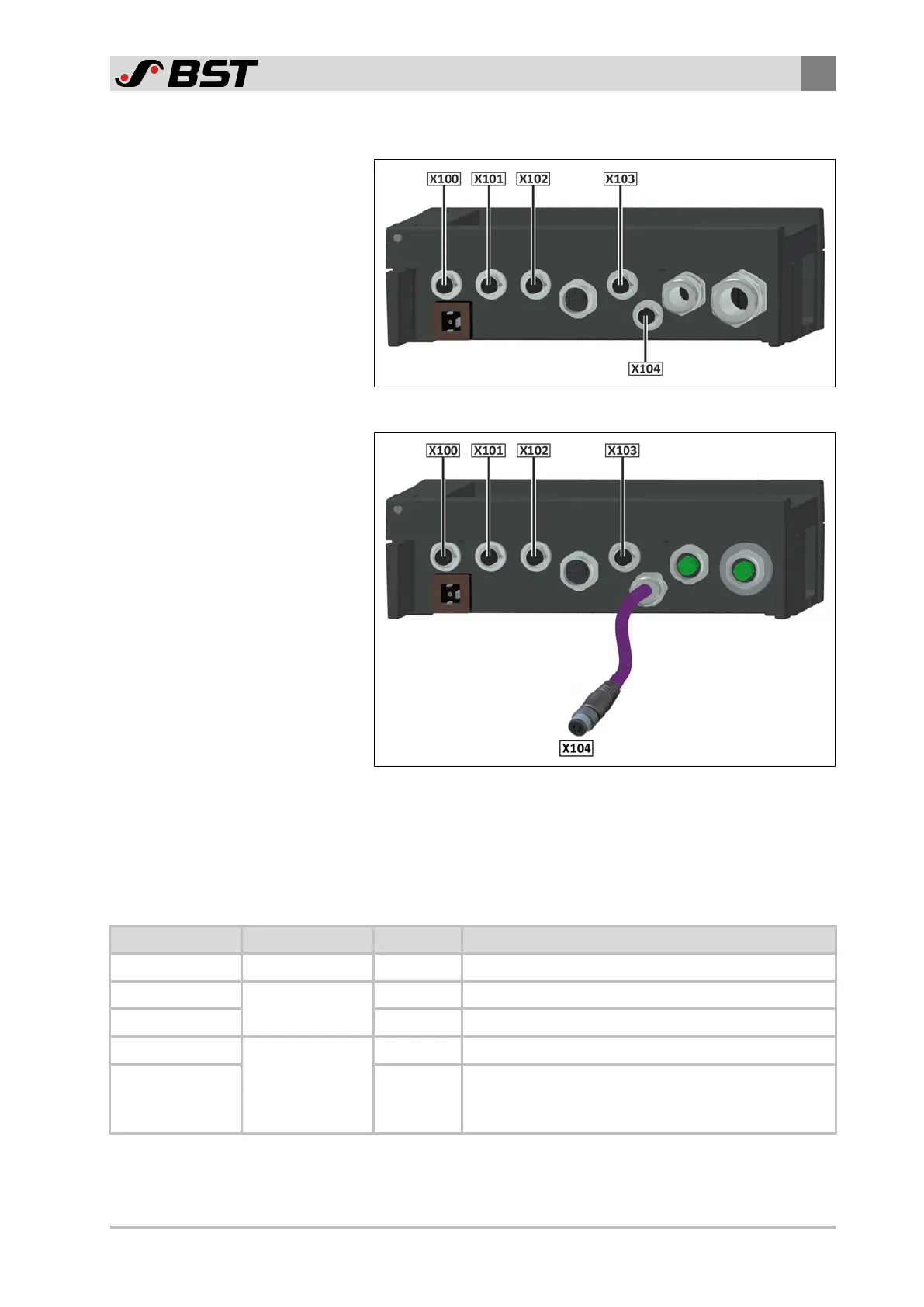

Fig.6: Connector assignment on the ekr CON 600 controller
Application with
ekrCON600net controller
Fig.7: Connector assignment on the ekr CON 600 net controller
With this Master-Slave Guiding version the ekrCON600net con-
troller is factory equipped with an additional cable tail. The edge
sensor 4 is connected to connector socket X104 of the cable tail.
Connector Assignment
Component Web of Material Connector Remark
ekrcommander X101
Sensor1
SLAVE web
X102
Sensor2 X103
Sensor3
MASTER web
X100
Sensor4 X104
Leads to terminal strip X12 in the controller (see
Terminal Assignment of Terminal Strip X12
(Connection Sensor 4), page 18).
