page 8
SERVICE MANUAL
Electric
4,0 - 4,5 - 5,0 t
A.C. VERSION

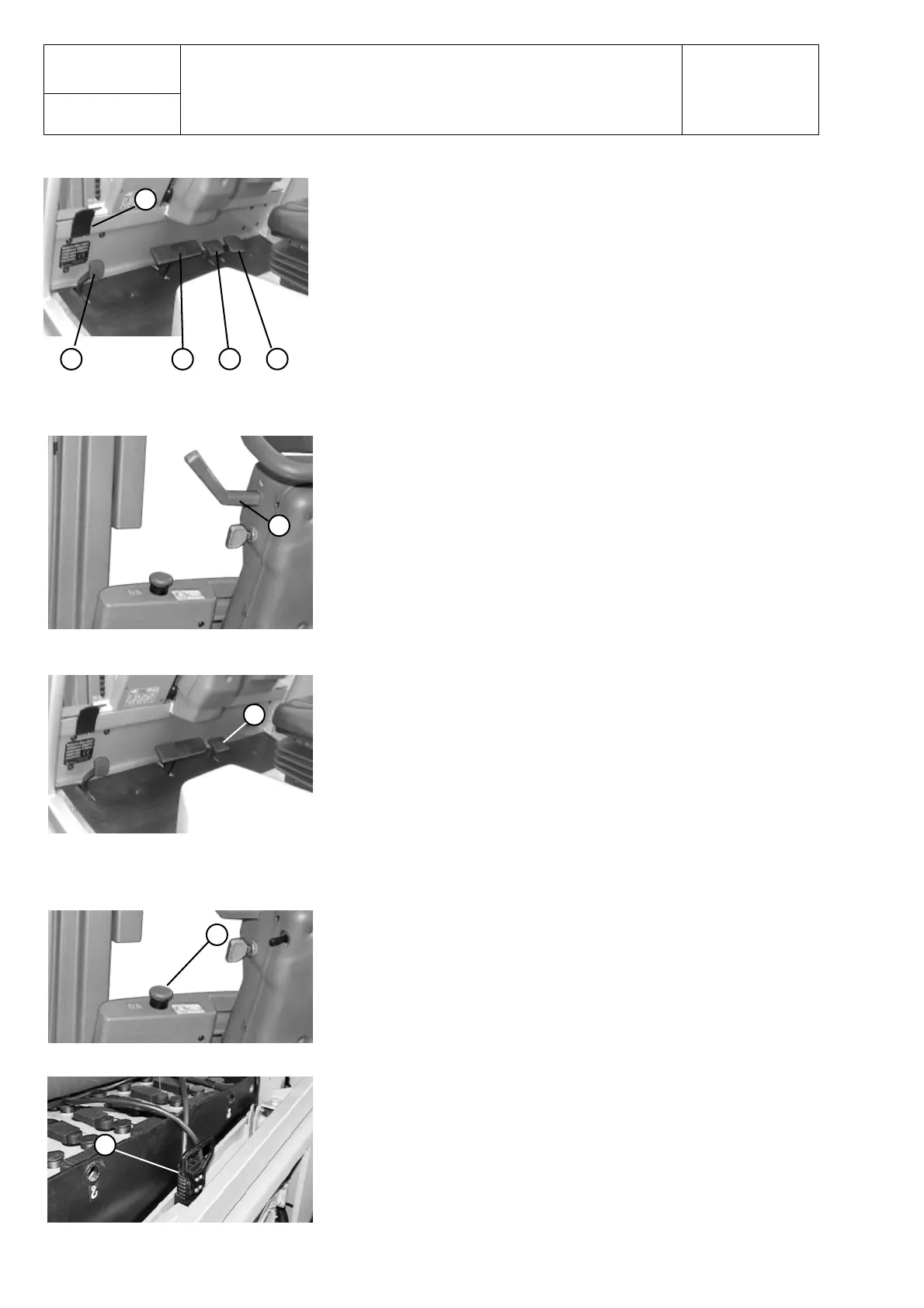

PEDALS
FOOT DRIVE DIRECTION
(Standard version)
- Forward direction (D)
- Backward direction (E)
- Service brake pedal (C)
- Parking and emergency brake pedal (A)
- Parking brake release lever (B)
G
A
D
C
B
E
DRIVE DIRECTION LEVER ON STEERING
COLUMN (Alternative version)
Direction selector lever (F)
1 Forward direction
0 Neutral
2 Backward direction
Single drive pedal (G)
Emergency push button (P)
Battery connector (H)
Inside the battery cover
Ð
Ï
o
1
0
2
F
P
H
