RS232 Interface

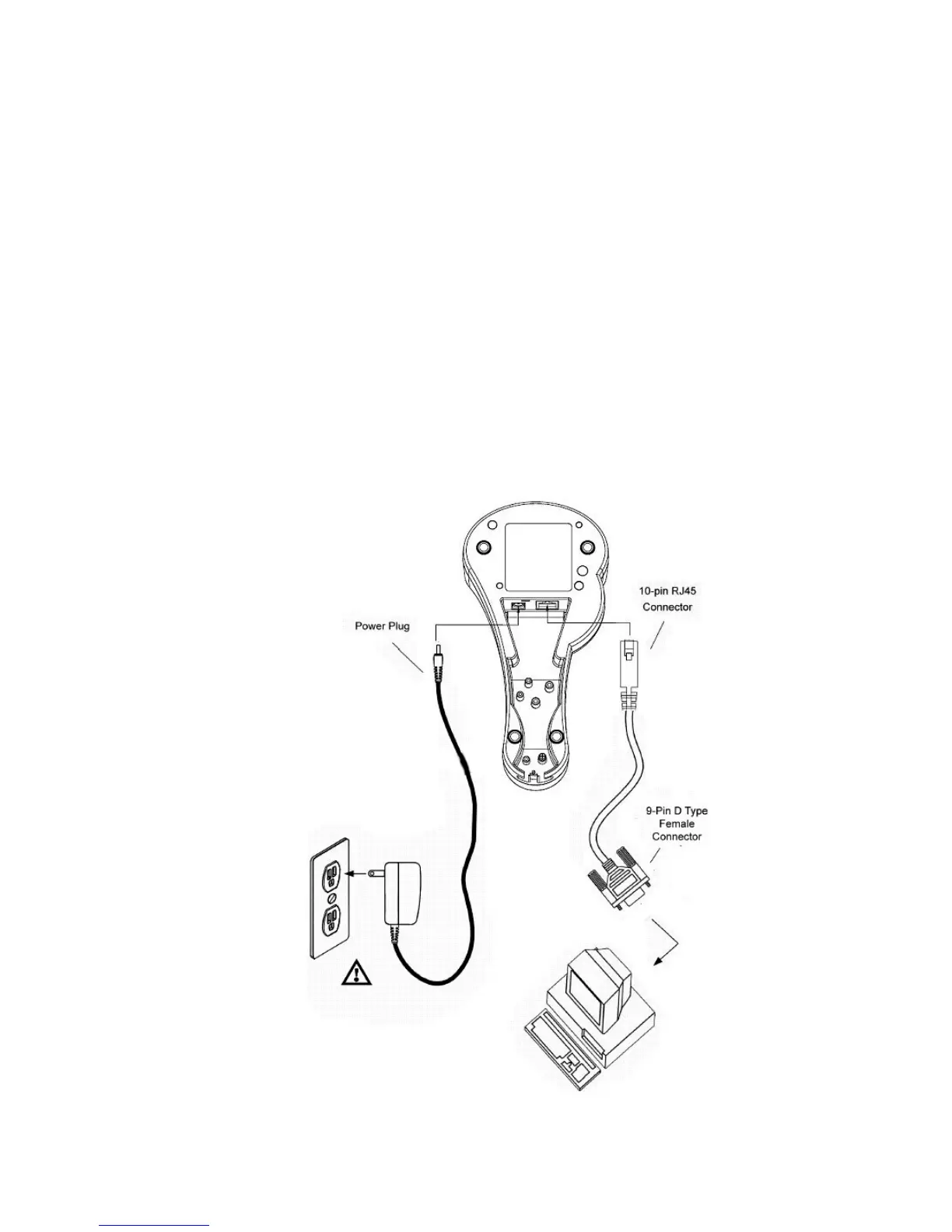

A. Turn off the host device.
B. Connect the 10-pin RJ45 male connector
into the 10-pin modular jack on the
bottom of the cradle.
C. Connect the 9-pin D-type Female
connector of the RS232 cable to the
proper COM port of the host device.
D. Plug the external power supply into the
power jack on the bottom of the cradle.
E. Plug the power supply into the AC outlet.
The red LED on the rear of the cradle will
stay on.
F. Turn on the host device
