Bticino 346310 Technical Sheet

Description
Switchboard for 2 WIRE audio and video systems. It provides access to various services
(video door entry system functions, door lock and/or stair light management, and
monitoring of apartment alarms) directly from the keyboard, or using the intuitive
icons menu. The switchboard is supplied with built-in table-top support and has a
7”colour LCD display, receiver and handsfree, dedicated keys for the main functions,
and congurable keys. Programming can be performed directly from the device, or
using a PC with the TiSwitchBoardDevice software installed (supplied). It gives the
possibility of creating a directory of handsets, entrance panels, and switchboard.
the device DOES NOT MANAGE secondary EPs and apartment EPs (connected
downstream the apartment interface 346850). The use of additional power supply
is recommended.
It is possible to connect up to maximum 16 switchboards (congured from 0 to 15).
WARNING: the switchboard cannot be used in systems with 2 WIRE IP interface
346890.
Technical data
Power supply from SCS BUS: 19 – 27 Vdc
Absorptions from BUS (without additional supply):
- stand by absorption: 35 mA
- max. operating absorption: 450 mA
Absorptions from BUS (with additional supply):
- stand by absorption: 5 mA
- max. operating absorption: 20 mA
Operating temperature: 5 - 40 °C
Load of relay contacts: 24 Vac / 24 Vdc
3 A, cosφ = 1

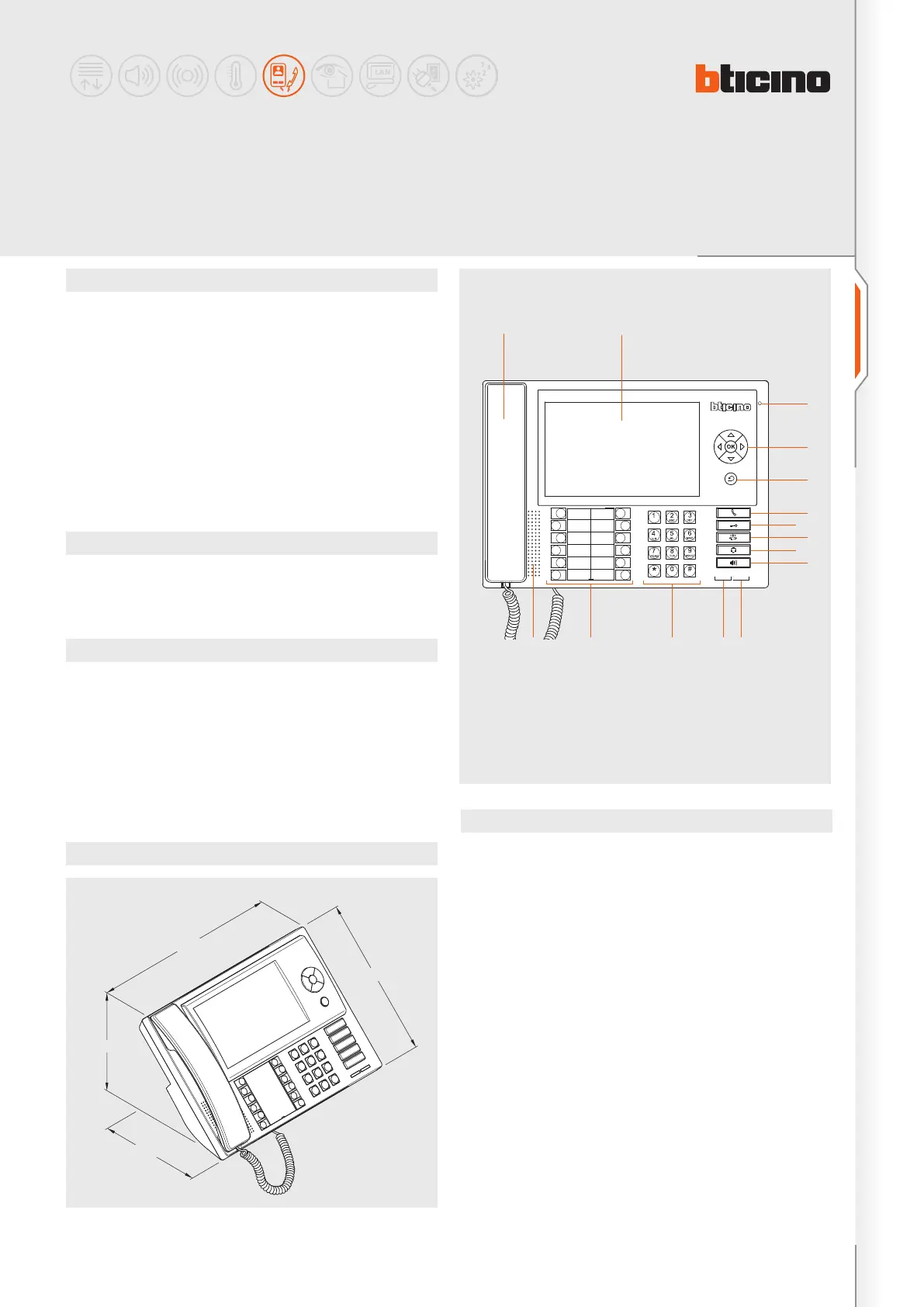

Dimensional data
Legend
1. Handset
2. 7” colour LCD display for the displaying of the user and programming menu and of
the images recorded by the entrance panel or cameras
3. Microphone
4. Navigation keypad. It enables navigating through the menus, with the possibility
of confirming the selection (OK key)
5. Cancel key
6. Direct call key
7. Door lock release key
8. Directory access key
9. Entrance panel and camera cycling activation key
10. Handsfree key
11. Alarm warning LED
12. Operation status LED:
LED ON (steady)=device in stand-by
LED ON (flashing quickly)=call pending
LED ON (flashing slowly)=busy
13. Alphanumeric key
14. Keypad + legend of configurable functions
15. Loudspeaker
Related items
336982 LIVINGLIGHT white series 8 pole socket for table-top installation of the
switchboard
336803 (8 poles - frayed) cable for table-top installation of the switchboard
346020 additional 2 DIN modules power supply
290 mm
170 mm
170 mm
210 mm
1 2
3
11
4
5
6
7
8
10
9
12131415
Front view
TECHNICAL SHEETS
1
BT00412-c-UK
2 WIRE Switchboard
346310
