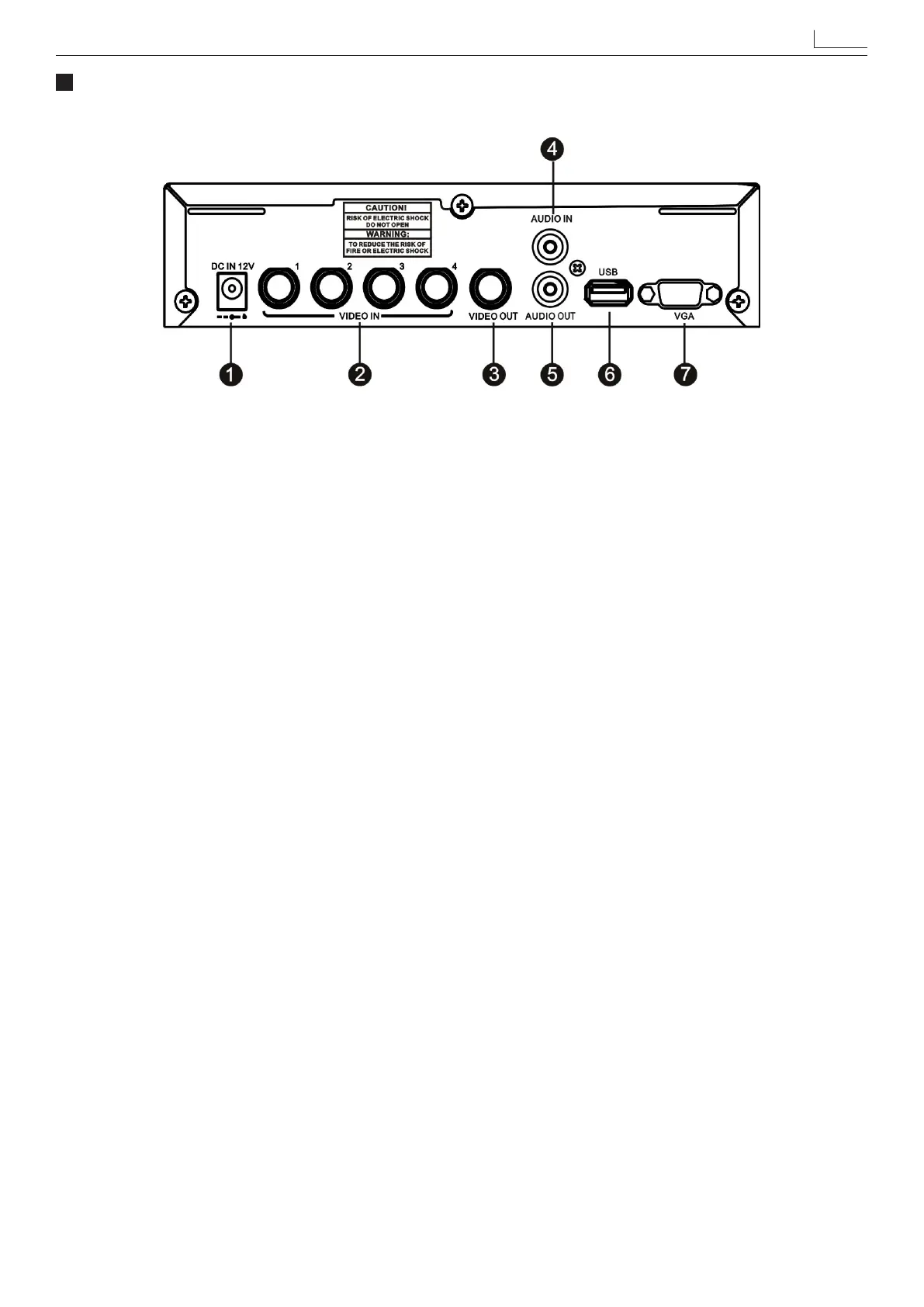

REAR PANEL
(1) DC 12V [Power Input terminal]: power socket.
(2) Video Input [VIDEO IN]: Connect to cameras.
(3) Video Output [VIDEO OUT]: Connect to the monitor.
(4) Audio Input [AUDIO IN] : RCA input port for an audio signal
(5) Audio Output [AUDIO OUTPUT] : RCA output port for an audio signal
(6) USB: Connect to external USB storage device (Plug and Play).
(7) VGA: VGA signal output.
