Schema: BT1B

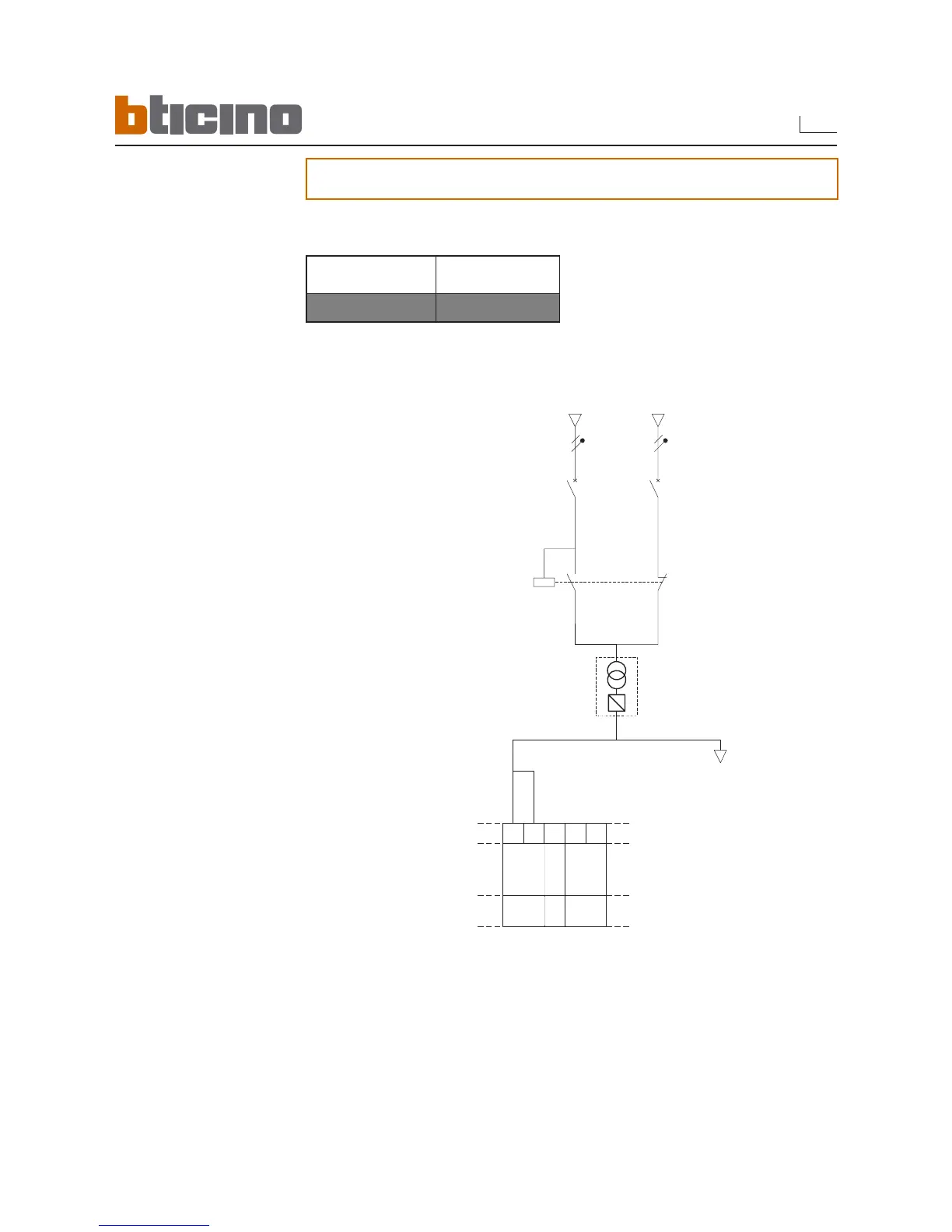

Wiring diagram: BT1B
~
_
“

“

“

“













  












Alimentazione centralina e motori a 12-24-48Vdc
Electronic Control Box and motors supply in 12-24-48Vdc
Parametro
Parameter
Impostazione
Setting
P0.05 24
Programmazione parametri per lo schema in figura:
Parameter setting for the wiring diagram in picture:
