WIRING DIAGRAMS
Flat

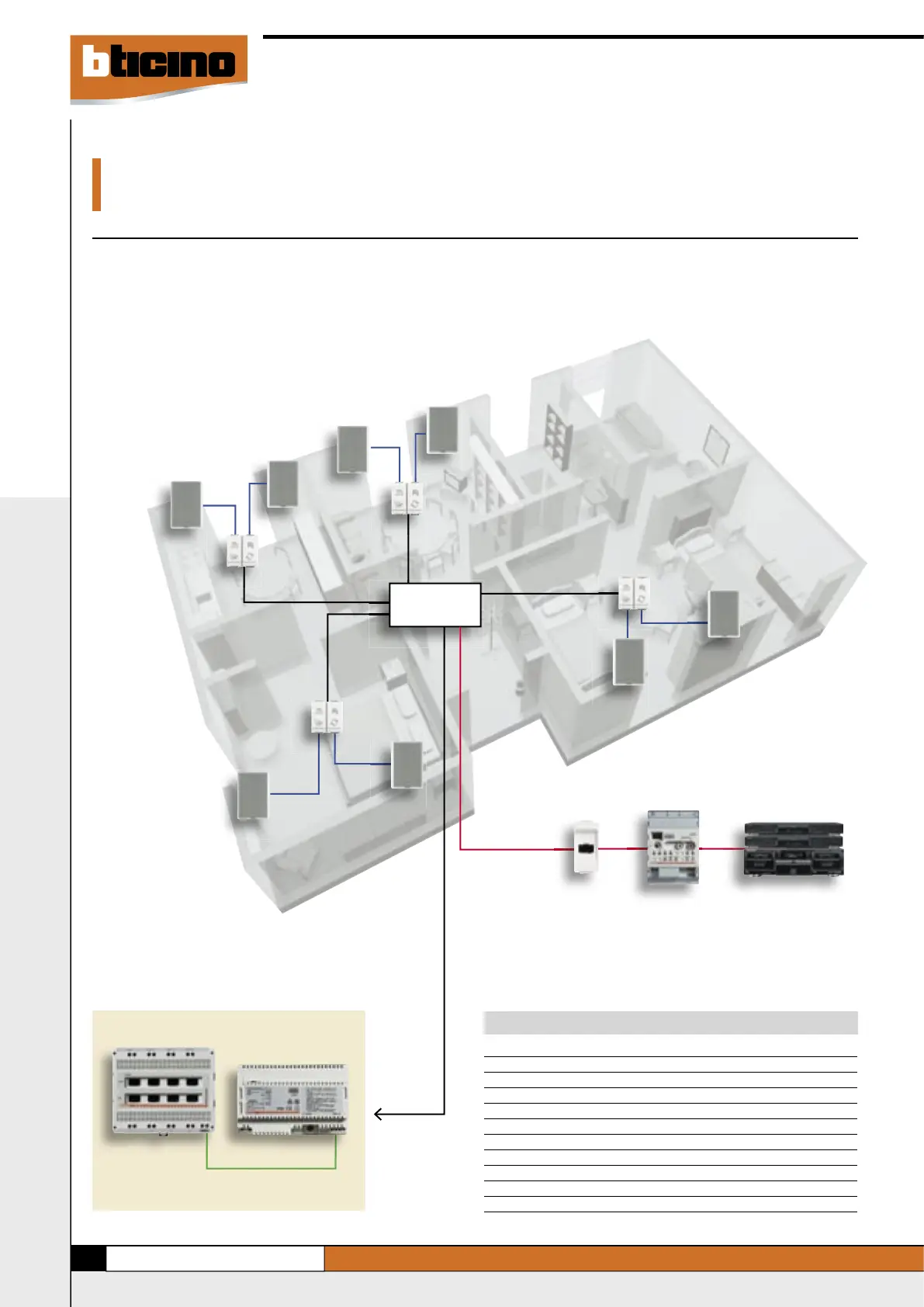

Below is shown a fl at, on a single fl oor, with four rooms (living room,
kitchen and 2 bedrooms). The stereo control can play the music from the
Hi-Fi stereo inside the fl at. An amplifi er with 4 pushbuttons is installed in
each room. This amplifi er can switch the loudspeakers on and off, adjust the
volume, cycle the sound sources available (if there is more than one) and
change the CD track or choose the favourite radio station from those saved.
Two fl ush-mounted loudspeakers with 8Ω impedance are connected to the
amplifi er.
STAR CENTRE
Star centre
List of material needed to make the system
Item Description Quantity Reference
346000 Power supply 1 A
F441 Audio/Video node 1 B
L4561 Stereo control 1 C
L4562 Flush-mounted amplifi ers 4 D
L4567 Wall-mounted loudspeakers 8 E
L/N/NT4911BF Right button cover 4
L/N/NT4911AI Left button cover 4
3499 Line terminators 4
33698...(2/3/4)
8-contact connector 1 F
336904 Twisted cable with 2 conductors 1
NOTE: the above system can also be achieved with AXOLUTE Items
E
E
E
E
D
D
D
E
E
E
D
E
F
C
B
A
