WIRING DIAGRAMS
MY HOME GUIDE 2 WIRE SOUND SYSTEM
33
WIRING DIAGRAMS
S CS
ON
OFF
ON
OFF
ON
OFF
ON
OFF

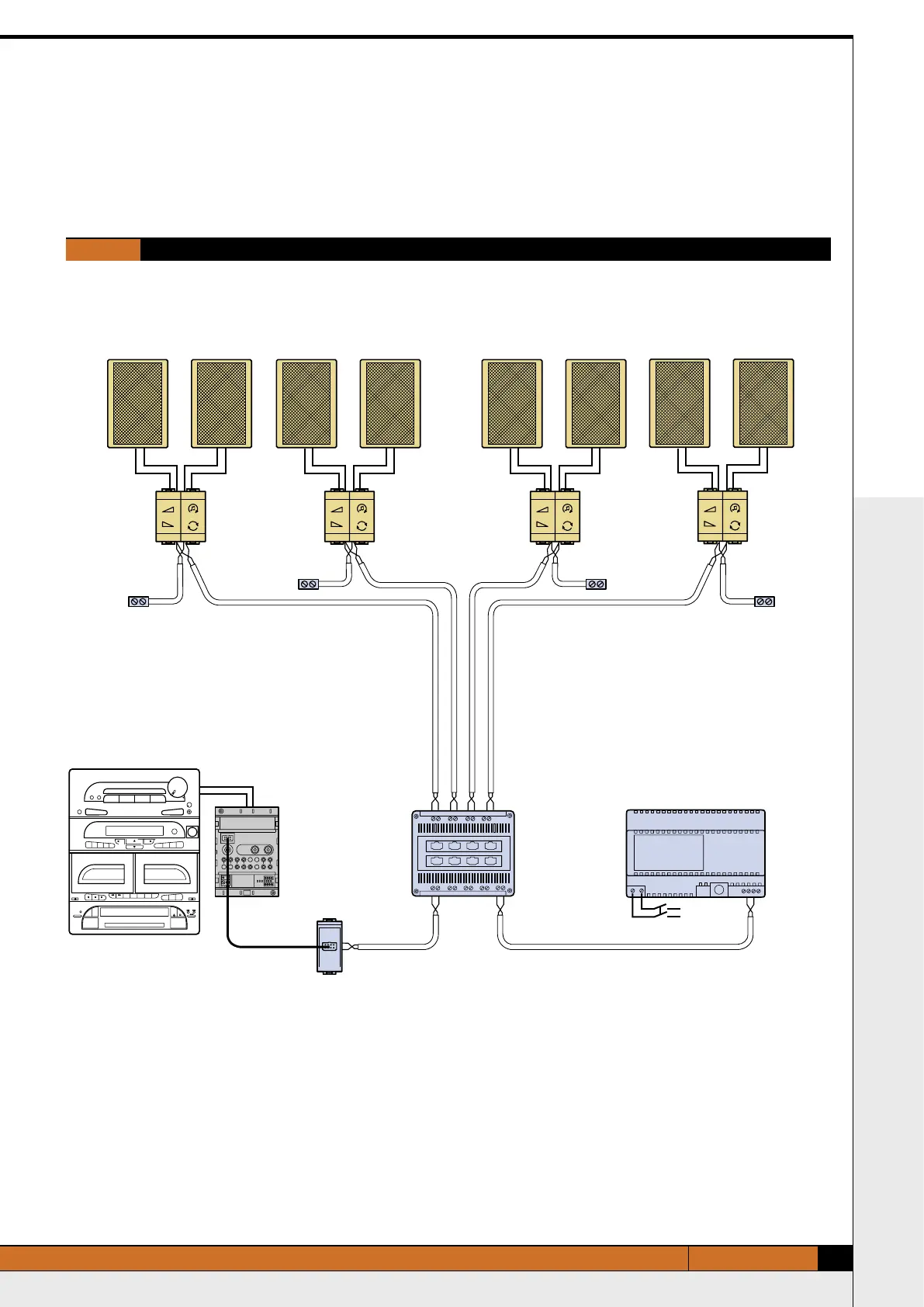

DIAGRAM 1 FLAT – 4 FLUSH-MOUNTED AMPLIFIERS – 8 8 OHM LOUDSPEAKERS
Wall-mounted loudspeakers
Item L4567
Wall-mounted loudspeakers
Item L4567
Wall-mounted loudspeakers
Item L4567
Wall-mounted loudspeakers
Item L4567
Flush-mounted
amplifier Item L4562
A = 1
PF = 1
Flush-mounted
amplifier Item L4562
A = 2
PF = 1
Flush-mounted
amplifier Item L4562
A = 3
PF = 1
Flush-mounted
amplifier Item L4562
A = 4
PF = 1
Line
terminator
Item 3499
Line
terminator
Item 3499
Line
terminator
Item 3499
Power supply Item 346000
Audio/Video node
Item F441
8-contact connector
Item 33698...(2/3/4)
Hi-Fi stereo system
Stereo control
Item L4561
S = 1
230Va.c.
Cables supplied
BUS
Line
terminator
Item 3499
