WIRING DIAGRAMS
Small house

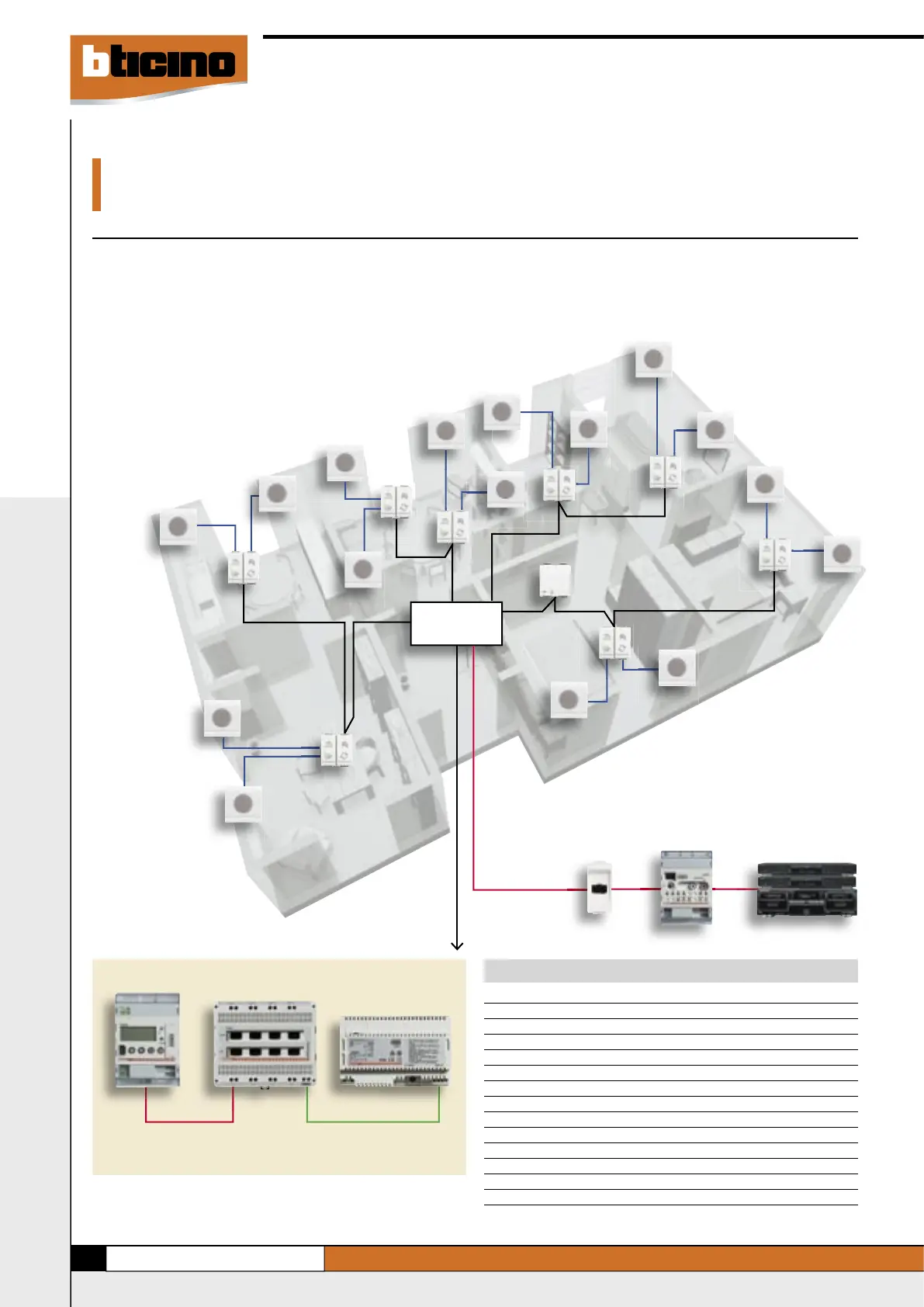

The following diagram refers to a small house with two sound sources: a
stereo control to manage the Hi-Fi system and an FM radio tuner with RDS.
In this case 16 fl ush-mounted loudspeakers are installed to play music in up
to 8 rooms. A radio remote control is required for the management of one of
the 8 amplifi ers. The radio tuner must be installed in a zone with suffi cient
signal to receive the radio emitters.
List of material needed to make the system
Item Description Quantity Reference
346000 Power supply 1 A
F441 Audio/Video node 1 B
F500 Radio tuner 1 G
L4561 Stereo control 1 C
L4562 Flush-mounted amplifi ers 8 D
L/N/NT4565 Flush-mounted loudspeakers 16 E
L/N/NT4911BF Right button cover 8
L/N/NT4911AI Left button cover 8
3499 Line terminator 4
33698...(2/3/4) 8-contact connector 1 F
336904 Twisted cable with 2 conductors 1
L/N/NT4575N Radio interface 1 H
3527 Remote control 1
NOTE: the above system can also be achieved with AXOLUTE Items
STAR CENTRE
Star centre
D
E
E
E
E
E
E
E
E
E
D
D
E
D
E
D
D
E
E
E
D
E
D
E
F
C
G
B
A
H
