WIRING DIAGRAMS

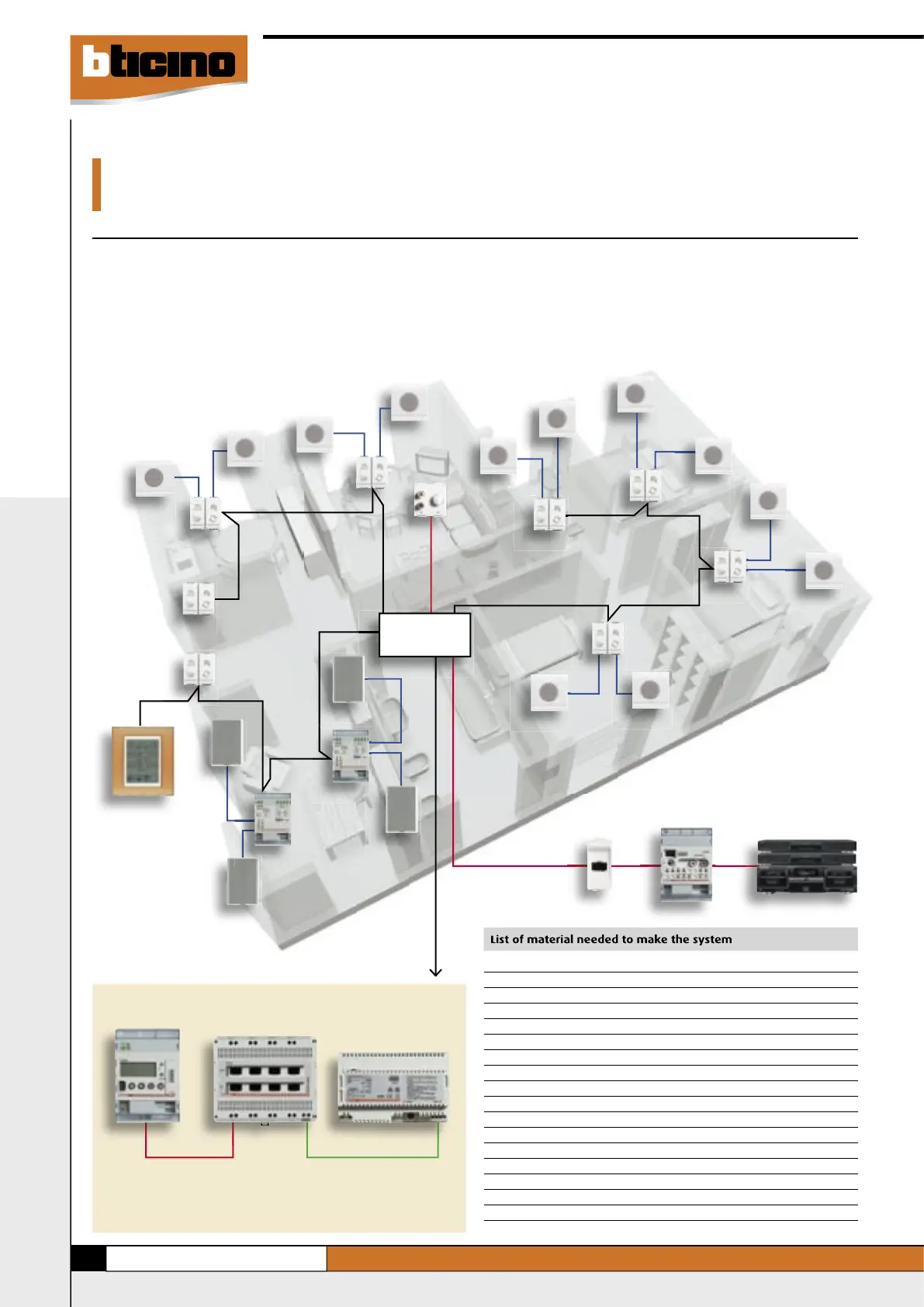

Large house
The sound system inside a large house uses 16 loudspeakers and can control
up to four external sound sources. Flush-mounted amplifi ers and a DIN rail
are used to make up the system. The system is managed by a TOUCH SCREEN
and two special confi gured controls: one to activate the complete sound
system (main control) and the other to activate all the amplifi ers inside a
room (room control), such as the amplifi ers of the whole living room. Thanks
to a TOUCH SCREEN function, the sound system can be used as an alarm
clock. In fact, on setting the time on TOUCH SCREEN, the sound source set
will switch on at the time set and the loudspeakers will switch on, fi rst at a
low sound level and then at a higher level. The alarm clock is switched off
by touching the TOUCH SCREEN or the “OFF” pushbutton.
List of material needed to make the system
Item Description Quantity Reference
346000 Power supply 1 A
F441 Audio/video node 1 B
F500 Radio tuner 1 G
L4561 Stereo control 1 C
L/N/NT4560 RCA input 1 M
L4562 Flush-mounted amplifi ers 6 D
L4651/2 Special control 2 N
F502 DIN amplifi er 2 H
L/N/NT4683 TOUCH SCREEN 1 I
L/N/NT4565 Flush-mounted loudspeakers 12 L
L4567 Wall-mounted loudspeakers 4 E
L/N/NT4911BF Right button cover 8
L/N/NT4911AI Left button cover 8
3499 Line terminator 3
33698...(2/3/4)
8-contact connector 1 F
336904 Twisted cable with 2 conductors 1
NOTE: the above system can also be achieved with AXOLUTE Items
