WIRING DIAGRAMS
MY HOME GUIDE 2 WIRE SOUND SYSTEM
37
WIRING DIAGRAMS

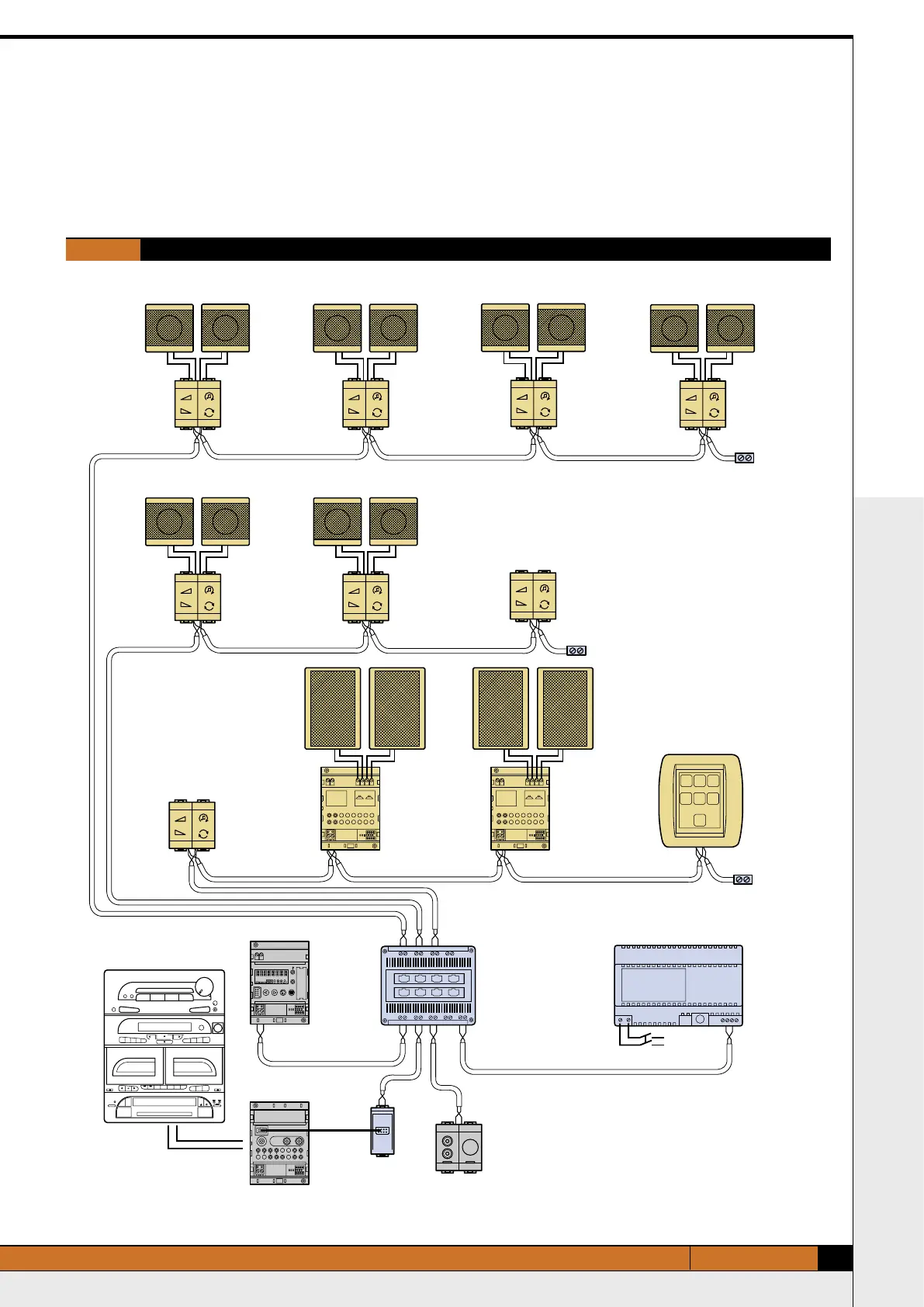

DIAGRAM 3
LARGE HOUSE – 6 FLUSH-MOUNTED AMPLIFIERS AND 2 ON DIN RAIL – 12 16 OHM AND 4 8 OHM LOUDSPEAKERS
SC S
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Flush-mounted loudspeakers
Item L/N/NT4565
Flush-mounted
amplifier
Item L4562
A = 1
PF = 1
Flush-mounted
amplifier
Item L4562
A = 2
PF = 1
Flush-mounted
amplifier
Item L4562
A = 2
PF = 2
Flush-mounted
amplifier
Item L4562
A = 3
PF = 1
Flush-mounted loudspeakers
Item L/N/NT4565
Flush-mounted loudspeakers
Item L/N/NT4565
Terminator
Item 3499
Flush-mounted
amplifier
Item L4562
A = 4
PF = 1
Flush-mounted
amplifier
Item L4562
A = 4
PF = 2
Special control
Item L4651/2
A = GEN
SPE = 8
Wall-mounted
loudspeakers
Item L4567
Special control
Item L4651/2
A = AMB
PF/PL = 5
SPE = 8
DIN amplifier
Item F502
A = 5
PF = 1
Power supply Item 346000
Audio/video node
Item F441
8-contact connector
Item 33698...(2/3/4)
RCA input
Item L/N/NT4560
S = 3
Hi-Fi stereo system
Radio tuner
Item F500
S1 = 1
Stereo control
Item L4561
S = 2
Terminator
Item 3499
Touch screen
Item L/N/NT4683
DIN amplifier
Item F502
A = 5
PF = 2
Flush-mounted loudspeakers
Item L/N/NT4565
Flush-mounted loudspeakers
Item L/N/NT4565
Flush-mounted loudspeakers
Item L/N/NT4565
Wall-mounted
loudspeakers
Item L4567
230Va.c.
Cables supplied
Terminator Item 3499
BUS
