Sfer
a Keypad Module
User and installation manual
6
2
1
3
5
4

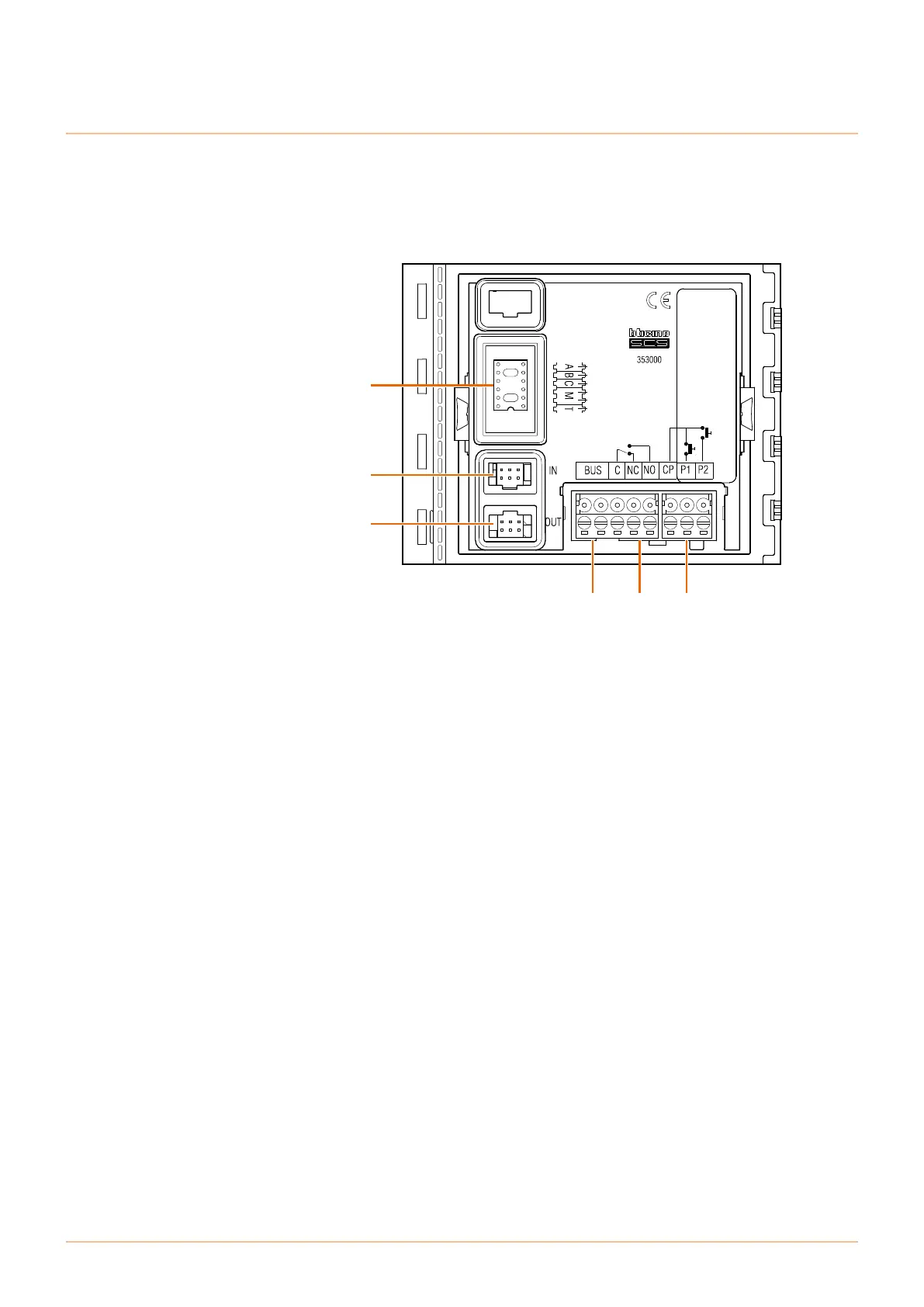

Back view
1.
Connection of door lock pushbutton (CP
-
P1) and tamper (CP
-P2 – future application).
2.
Local rela
y contacts.
3.
Connection to the BUS.
4.
Connector for the connection to
subsequent modules.
5.
Connector for the connection to previous
modules.
6.
Configurator sockets
.
6
8
Table of Contents
Table of Contents
3
General Information
4
Warnings and Recommendations
5
Regulatory Warnings
5
Front View
6
Back View
7
Installation
8
Mounting
8
Disassembling
10
Use of the Device
12
Door Lock Control
12
Door Lock Control with Stand-Alone Keypad Module 353000
12
Door Lock Control with Sfera Speaker Module 351100/351200/351300 and Keypad Module 353000
12
Direct Call with Sfera Speaker Module 351100/351200/351300 and Keypad Module 353000
13
Device Configuration
14
Administrator Code
14
New Administrator Code
14
Deleting Administrator Codes
17
Passepartout Code
18
New Passepartout Code
18
Deleting Administrator Codes
21
Replacement of Passepartout Codes
22
Resident Code
24
New Resident Code
24
Deleting Resident Codes
27
Replacing Resident Codes
29
Reset
31
Configuration Using the Software
32
Connection to the PC
32
