4 Description of function
17
B-390 Operation Manual, Version E

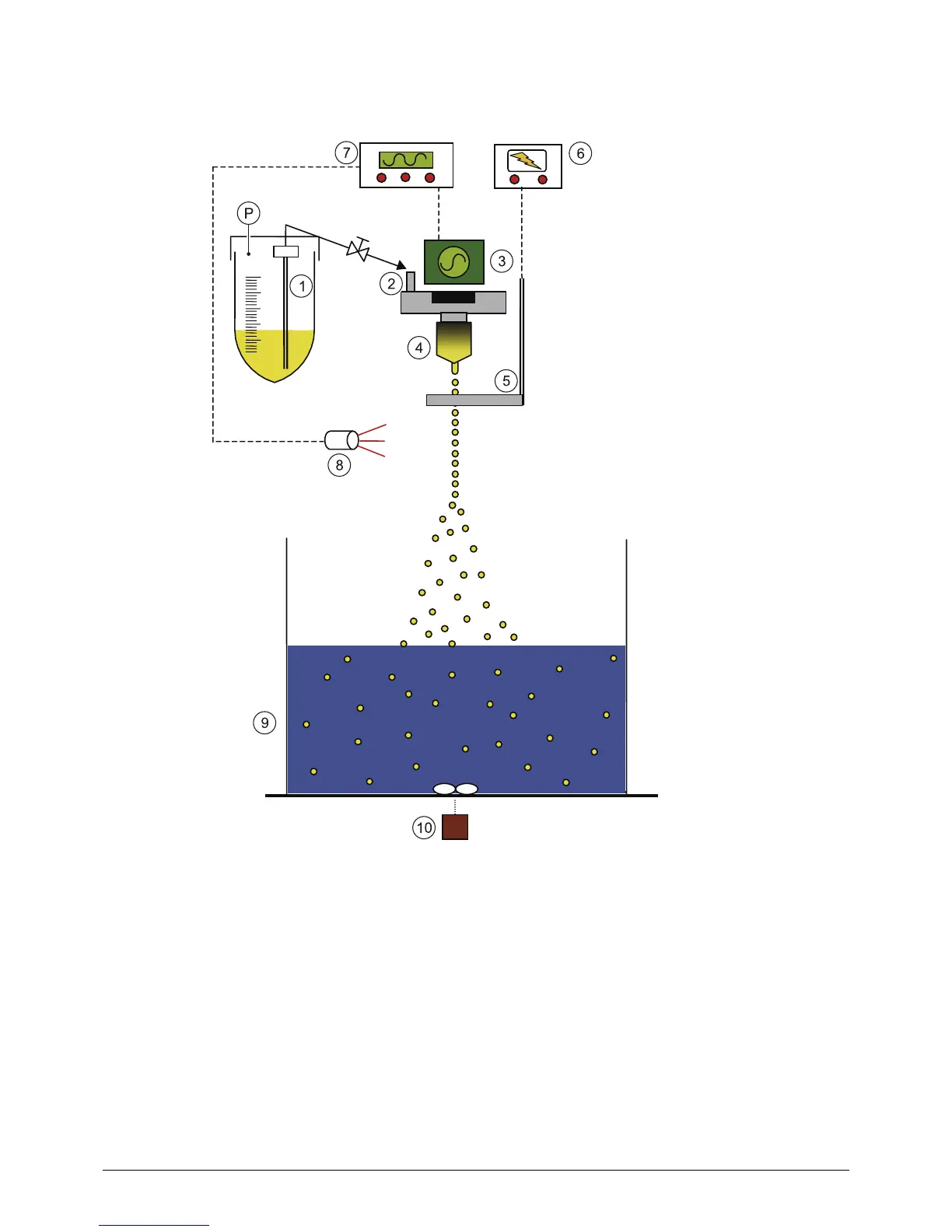

Figure 4-1: Schematic representation of the Encapsulator B-390
a Pressure bottle
 Bead producing unit
 Vibration unit
 Single nozzle
 Electrode
 Dispersion control
 Vibration control
 LED/stroboscope
 Polymerization bath
 Magnetic stirrer
(P) Air pressure
