Attach the complete CN bead producing unit to the carrier plate with two screws (M3×25). Attach the
silicone tube of the core liquid to the core inlet port and the silicone tube of the shell liquid to the shell
inlet port.
Pass the silicone tubes in the liquid regulating flow valves. Squeeze them so that no liquid can pass.

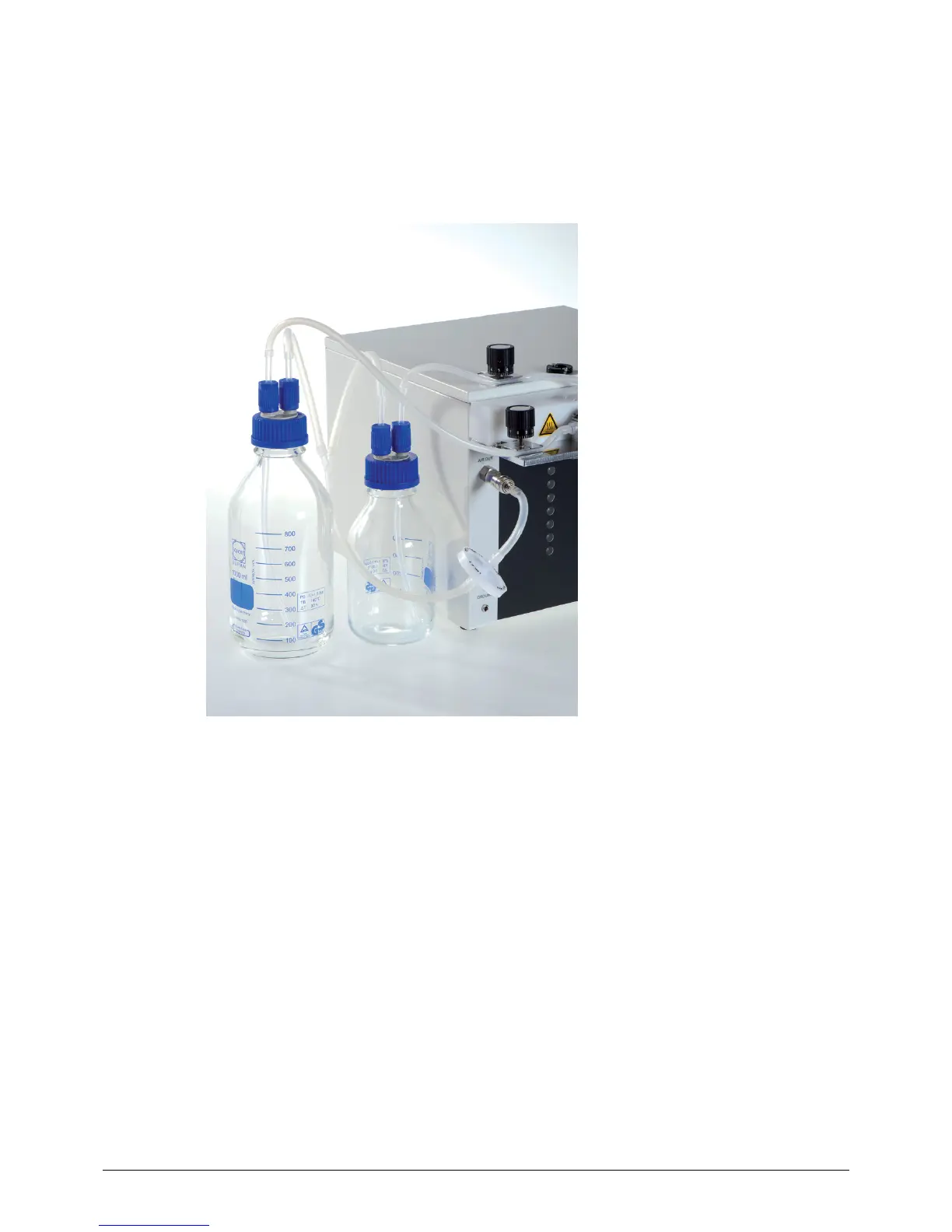

Figure 5-18: Connection of the pressure bottles to the air outlet. A T-piece feeds both pressure bottles.
5.9 Final installation check
This check has to be carried out after every installation and prior to the first encapsulation process. All
connected supply media (e.g. mains voltage and gas pressure) must match the technical data of the
installed system or system set-up.
• Inspect all glass components for damage.
• Check all other electrical connections for proper connection, such as optional or external compo-
nents, e.g. magnetic stirrer, vibration unit, etc.
